2HA/2HB
1-5-16

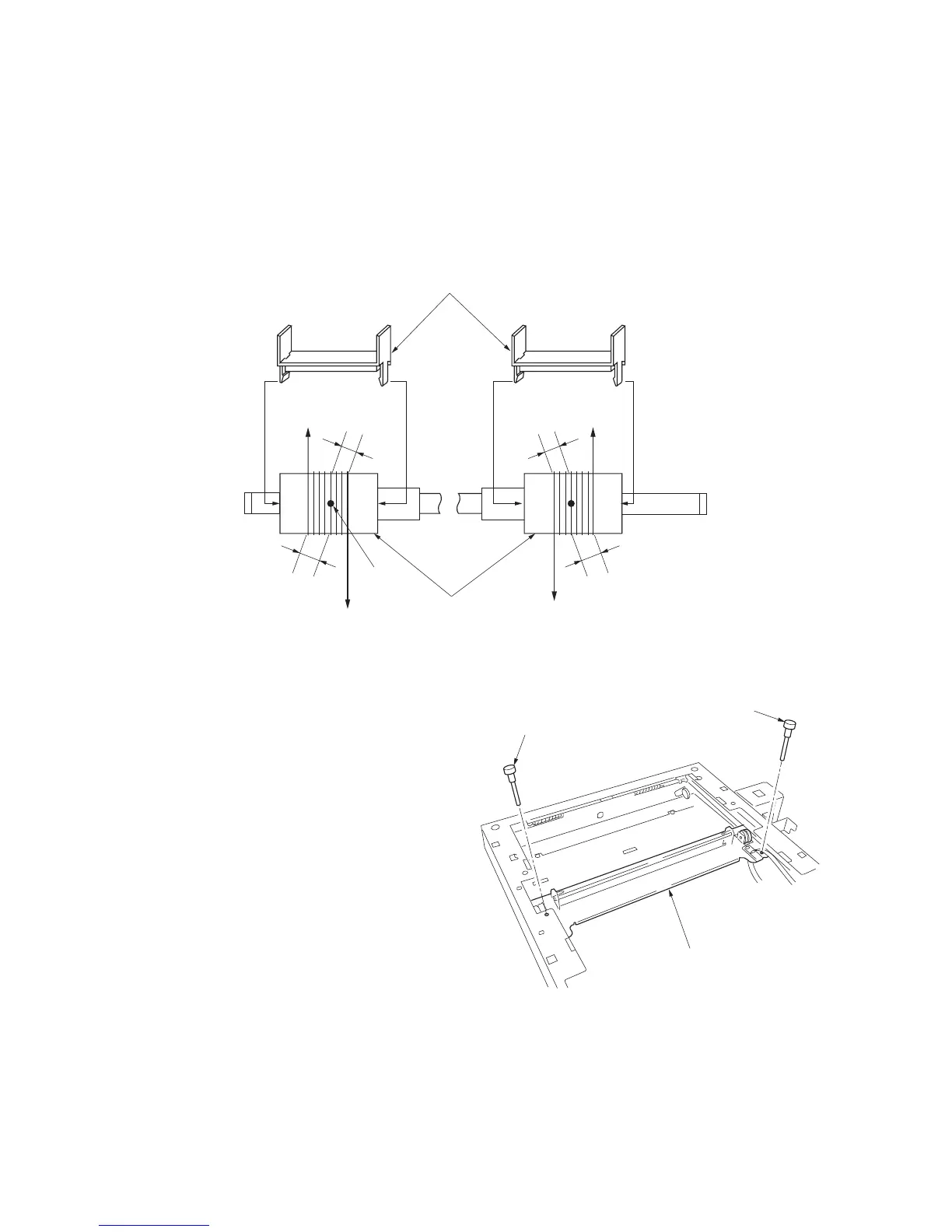

4. Insert the locating ball on each of the scan-
ner wires into the hole in the respective
scanner wire drum and wind the scanner
wire three turns inward and four turns out-
ward.
With the locating ball as the reference point,
wind the shorter end of each of the wires
outward.
5. Secure the scanner wires using the scanner
wire stoppers.
Figure 1-5-34
6. Refit the scanner wire drum shaft to the
scanner unit.
7. Insert the two frame securing tools into the
positioning holes at the front and rear of the
scanner unit to pin the mirror 2 frame in
position.
Figure 1-5-35
Three turns inward
Three turns inward
Four turns outward Four turns outward
Locating ball
Scanner wire drum
Scanner wire stoppers
Mirror 2 frame
Frame securing tool
Frame securing tool
To Next Page
