(1) Paper conveying operation in duplex copying
Paper of which copying onto the reverse side is complete is conveyed to the switchback section, the exit motor switches
from forward rotation to reverse rotation to switch the exit roller to reverse rotation, and the paper conveying direction is
reversed. Paper that has been switched back is conveyed to the duplex unit via the exit roller and the switchback roller.
Paper that has been conveyed to the duplex unit is conveyed to the paper feed section again by rotation of the upper
duplex feed roller and the lower duplex feed roller and copying onto the front side is performed.

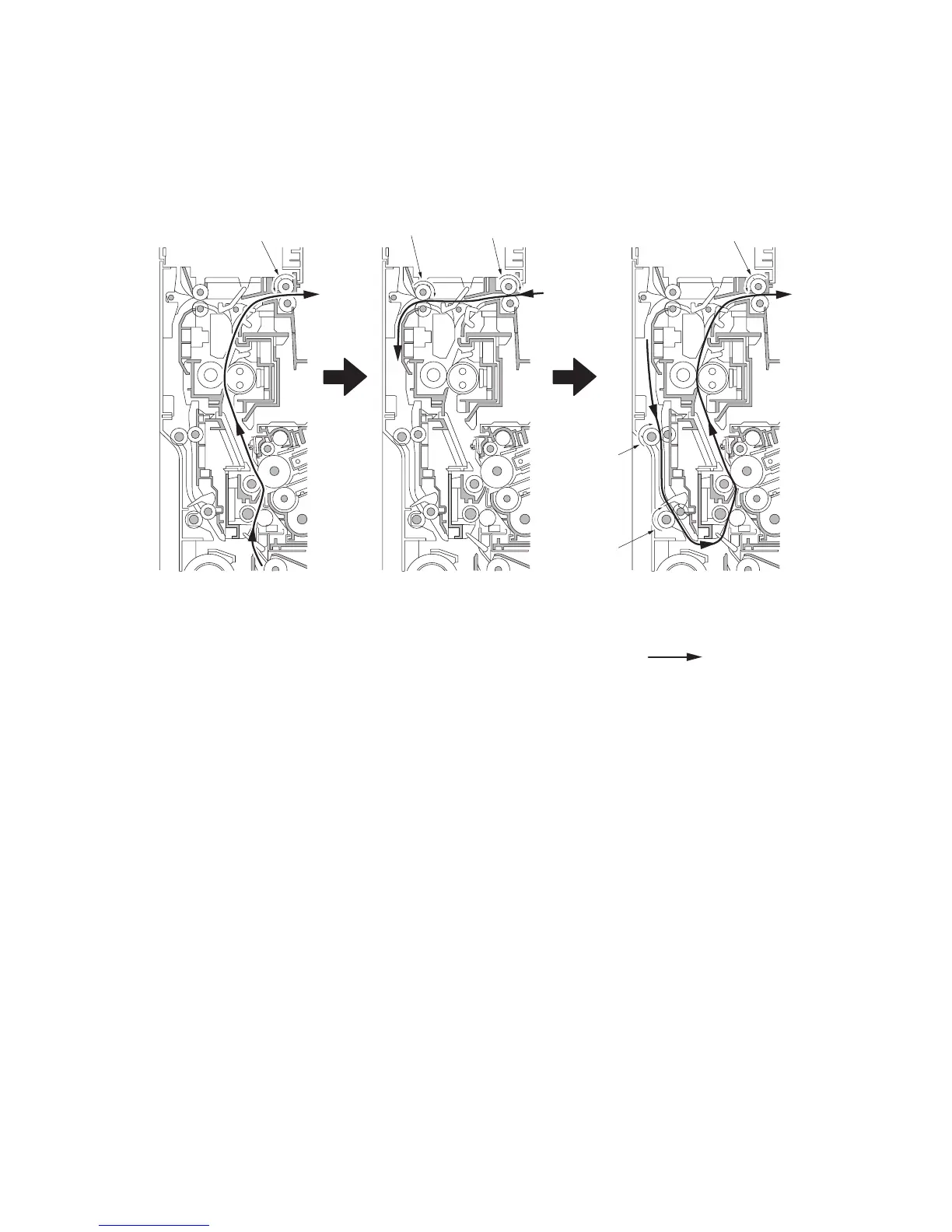

Figure 2-1-22
Exit roller Exit roller
Switchback roller Exit roller
Copying onto reverse side
(forward rotation of exit motor)
Switchback operation
(reverse rotation of exit motor)
Copying onto front side
(forward rotation of exit motor)
Upper duplex
feed roller
Paper path
Lower duplex
feed roller
