2HA/2HB
2-2-4
(4) Other electrical components

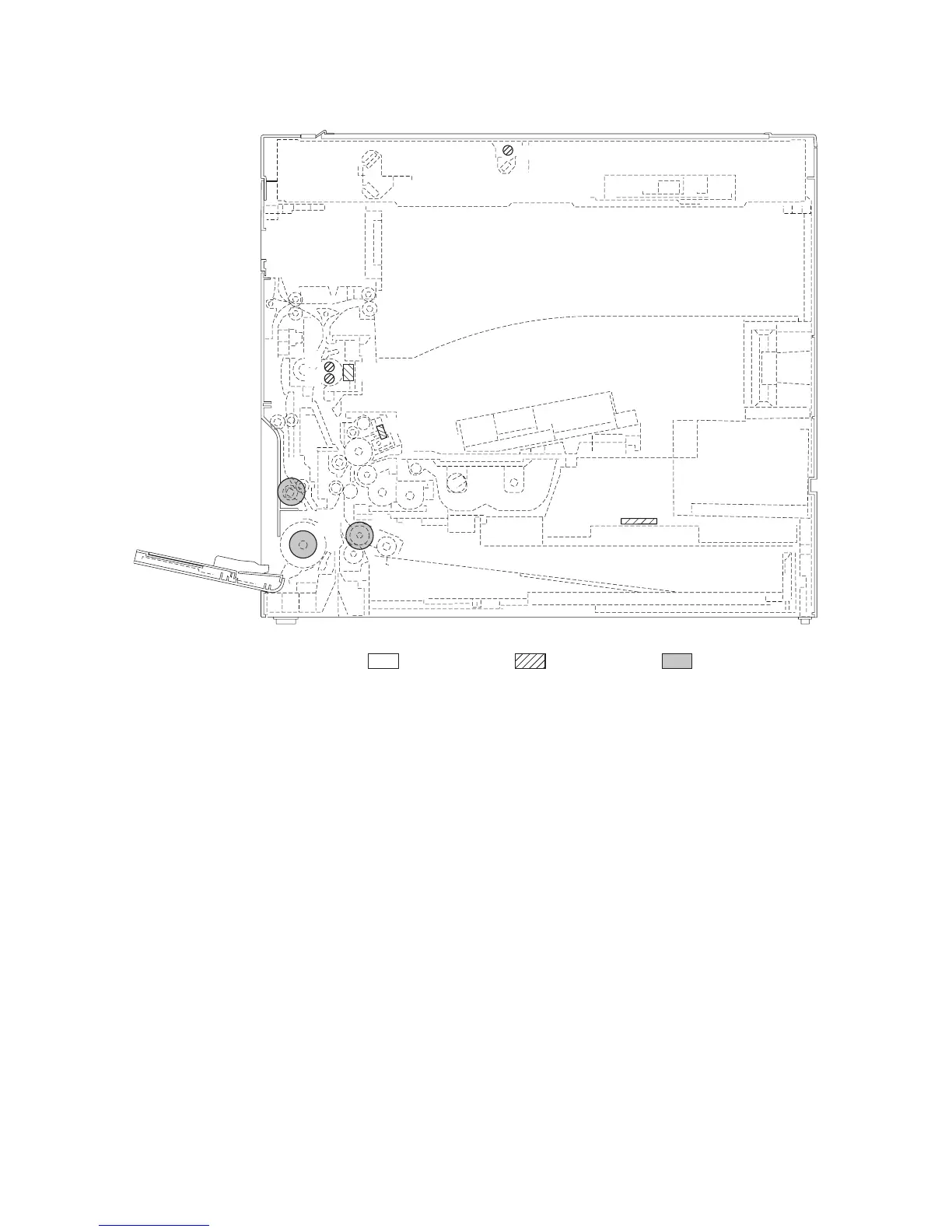

Figure 2-2-4 Other electrical components
1. Paper feed clutch (PFCL) ............................ Primary paper feed from the drawer.
2. MP paper feed clutch (MPPFCL) ................. Primary paper feed from the MP tray.
3. Exposure lamp (EL) ..................................... Exposes originals.
4. Cleaning lamp (CL) ...................................... Removes residual charge from the drum surface.
5. Fuser heater M (FH-M) ................................ Heats the heat roller.
6. Fuser heater S (FH-S) ................................. Heats the heat roller.
7. Fuser thermostat (FTS)................................ Prevents overheating in the fuser section.
8. Drawer heater (DH)* .................................... Dehumidifies the drawer section.
9. Duplex feed clutch (DUPFCL)* .................... Controls the drive of the duplex feed roller.
*: Optional
