Olivetti d-Copia 2000 Service Manual

2HA/2HB
2-1-13
2-1-7 Exit and switchback sections
The exit and switchback sections exit paper on which fuser has ended with the exit roller that is rotated by forward rotation
of the exit motor.
In duplex copying, paper is turned over by reverse rotation of the exit motor.

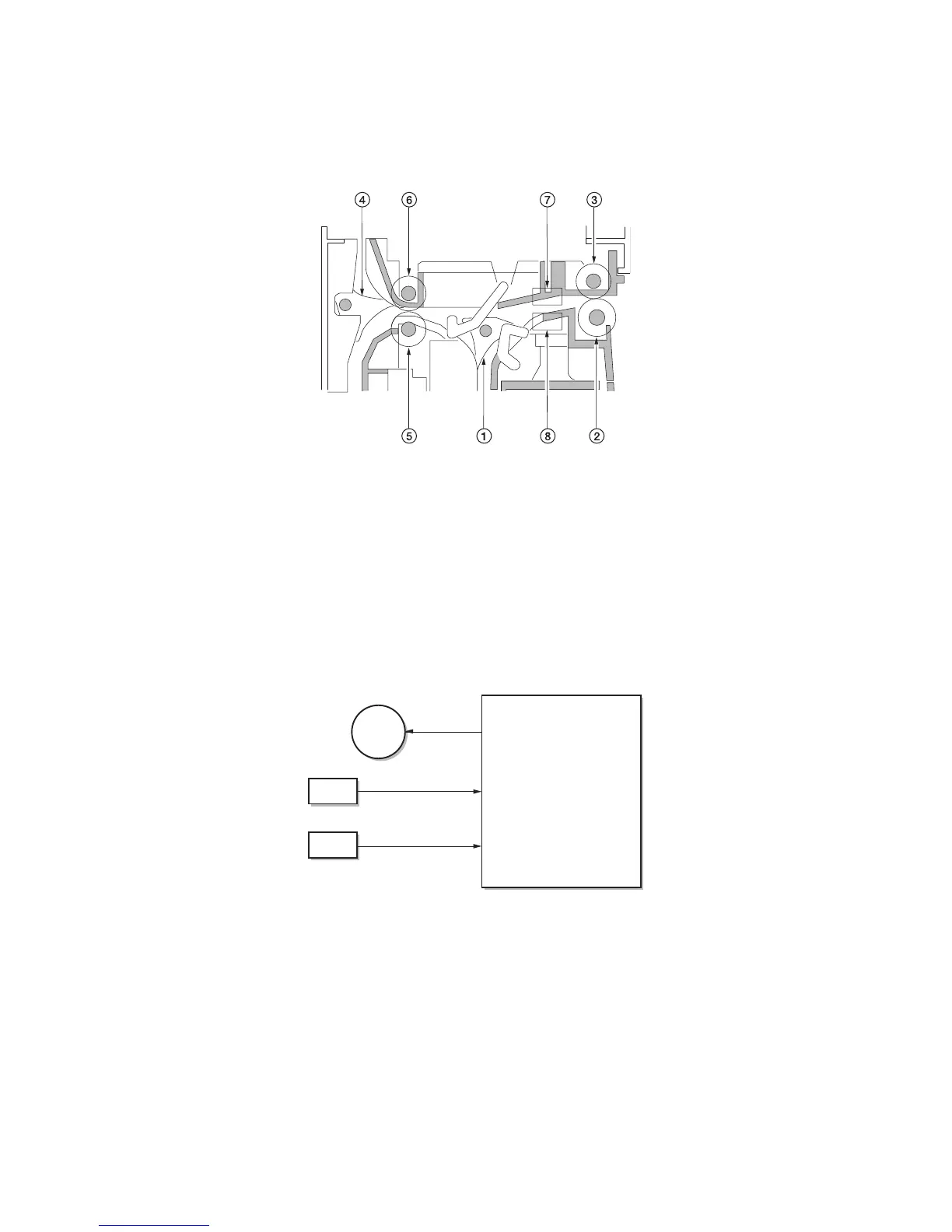

Figure 2-1-18 Exit and switchback sections
Figure 2-1-19 Exit and switchback sections block diagram
(1) Feedshift guide
(2) Exit roller
(3) Exit pulley
(4) Feedshift guide
(5) Switchback roller
(6) Switchback pulley
(7) Exit switch (ESW)
(8) Feedshift switch (FSSW)
EPWB
EM
ESW
FSSW
YC14-1, 2, 3, 4
YC15-2
YC15-3
EM
ESW
FSSW
