Olivetti d-Copia 2000 Service Manual

2HA/2HB
1-5-28
1-5-7 Fuser section
(1) Detaching and refitting the fuser unit
Follow the procedure below to replace the fuser unit.
Procedure
1. Open the front cover and left cover and then
remove the inner cover.
2. Insert a flat-blade screwdriver or the like
through the groove at the left side of the
machine and unlock the engaged portion of
front left cover 1 to remove it.

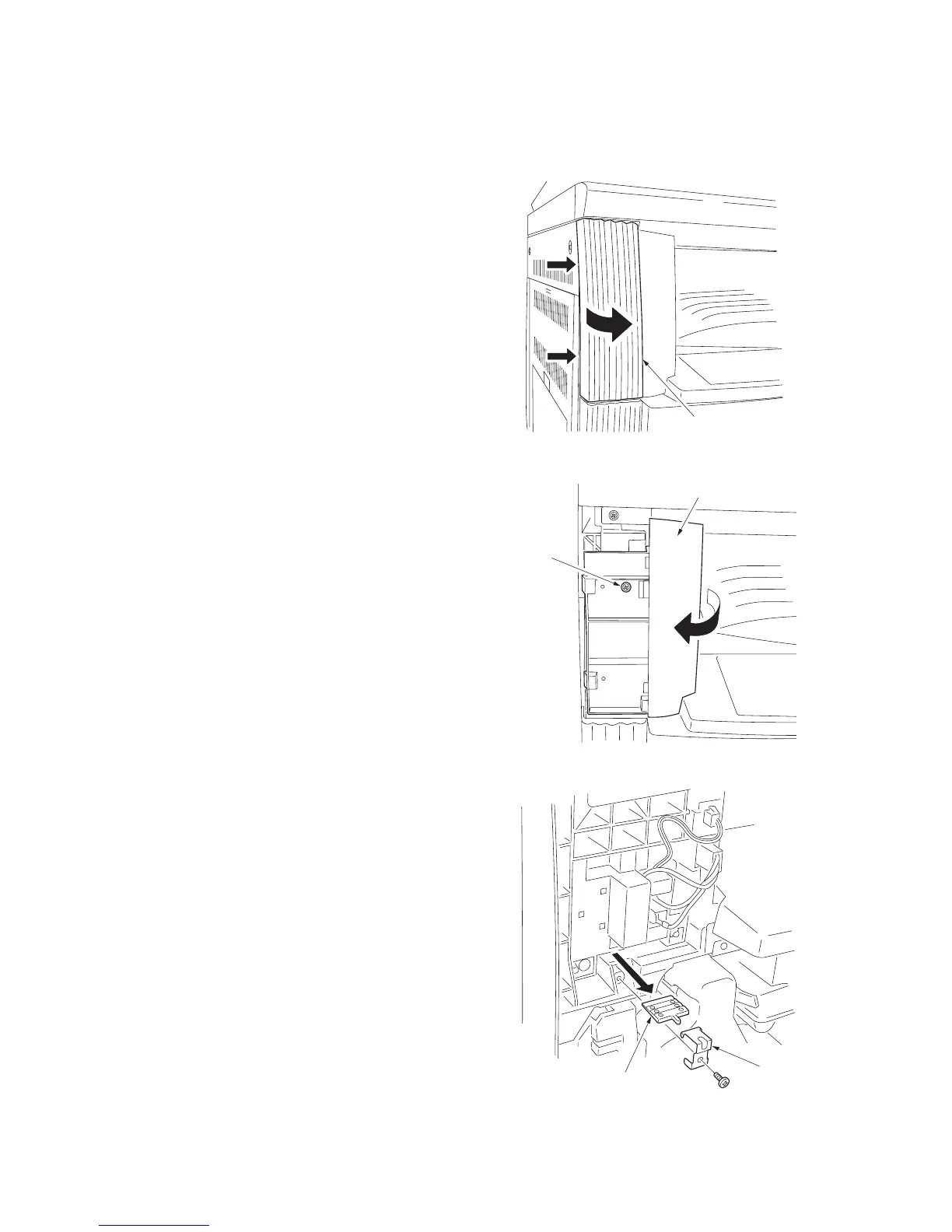

Figure 1-5-58
3. Remove the screw and then remove the
front left cover 2.
Figure 1-5-59
4. Remove the screw and then remove the
stopper and spacer.
When attaching the spacer, place the fuser
unit on the original step.
Figure 1-5-60
Front left cover 1
Front left cover 2
Screw
Spacer
Stoppe
r
