Olivetti d-Copia 2000 Service Manual

2HA/2HB
1-2-8
4. Insert the cassette heater from the bottom of
the machine and attach it to the copier.
1) Pass the connector of the cassette heater
through the hole located in the right frame of
the machine to pull it out.
2) Insert the projections at the rear side of
the cassette heater mounting plate into the
two holes in the rear frame of the machine.
3) Position the screw hole of the drawer
heater to the screw hole of the front frame of
the machine and secure the heater using
the M4 x 10 Taptite S binding screw.

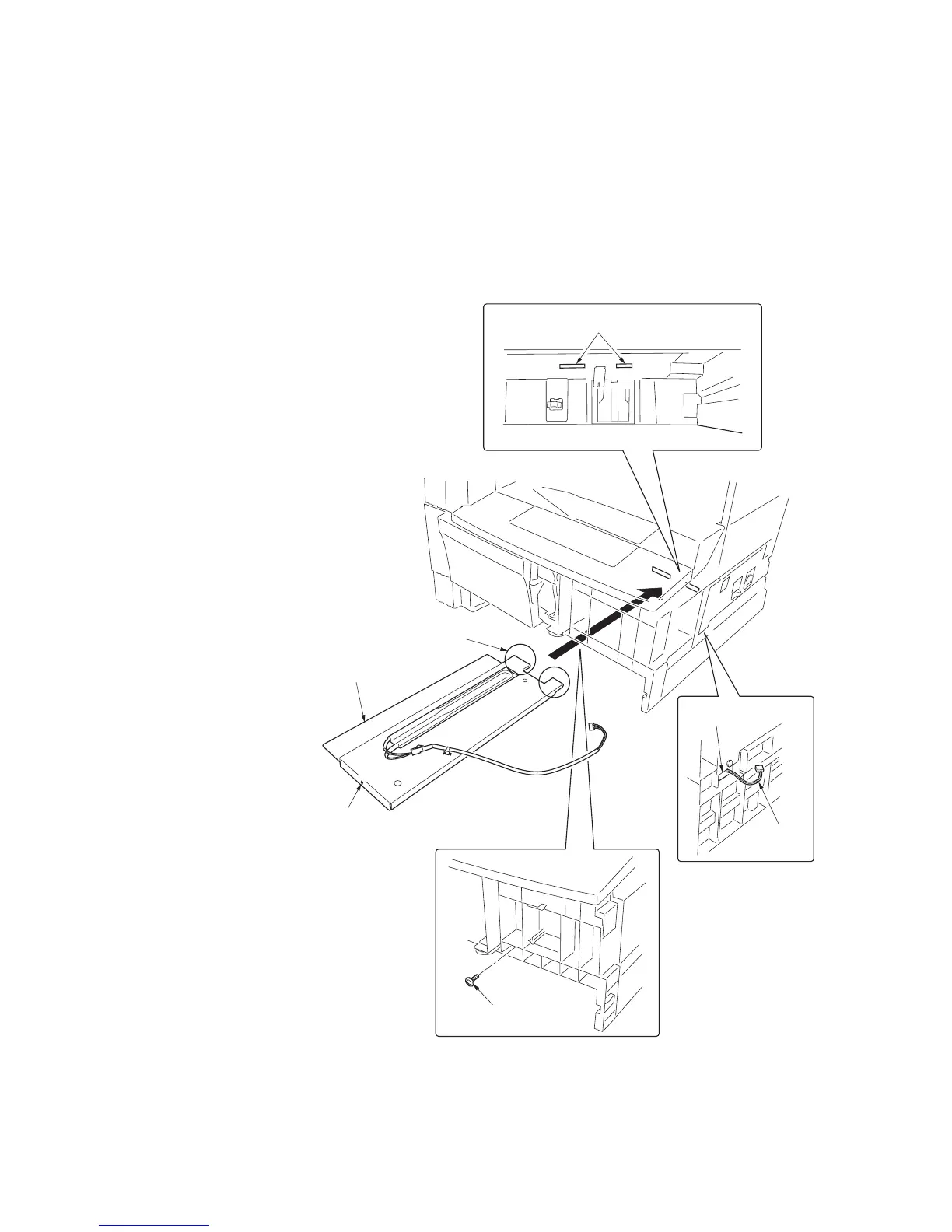

Figure 1-2-8
Drawer heater
Screw hole
Projections
Hole in the right frame
Connector
M4 x 10 tap tight
S binding screw
Holes in the rear frame
