2HA/2HB
1-3-59
U993
Outputting a VTC-PG pattern
Description
Selects and outputs a VTC-PG pattern created in the copier.
Purpose
When performing respective image printing adjustments, used to check the machine status apart from that of
the scanner with a non-scanned output VTC-PG pattern.
Method
1. Press the start key.
2. Select the VTC-PG pattern to be output using the exposure adjustment keys.
3. Press the interrupt key.
4. Press the start key. A VTC-PG pattern is output.
Completion
Press the stop/clear key. The indication for selecting a maintenance item No. appears.
Maintenance
item No.
Description

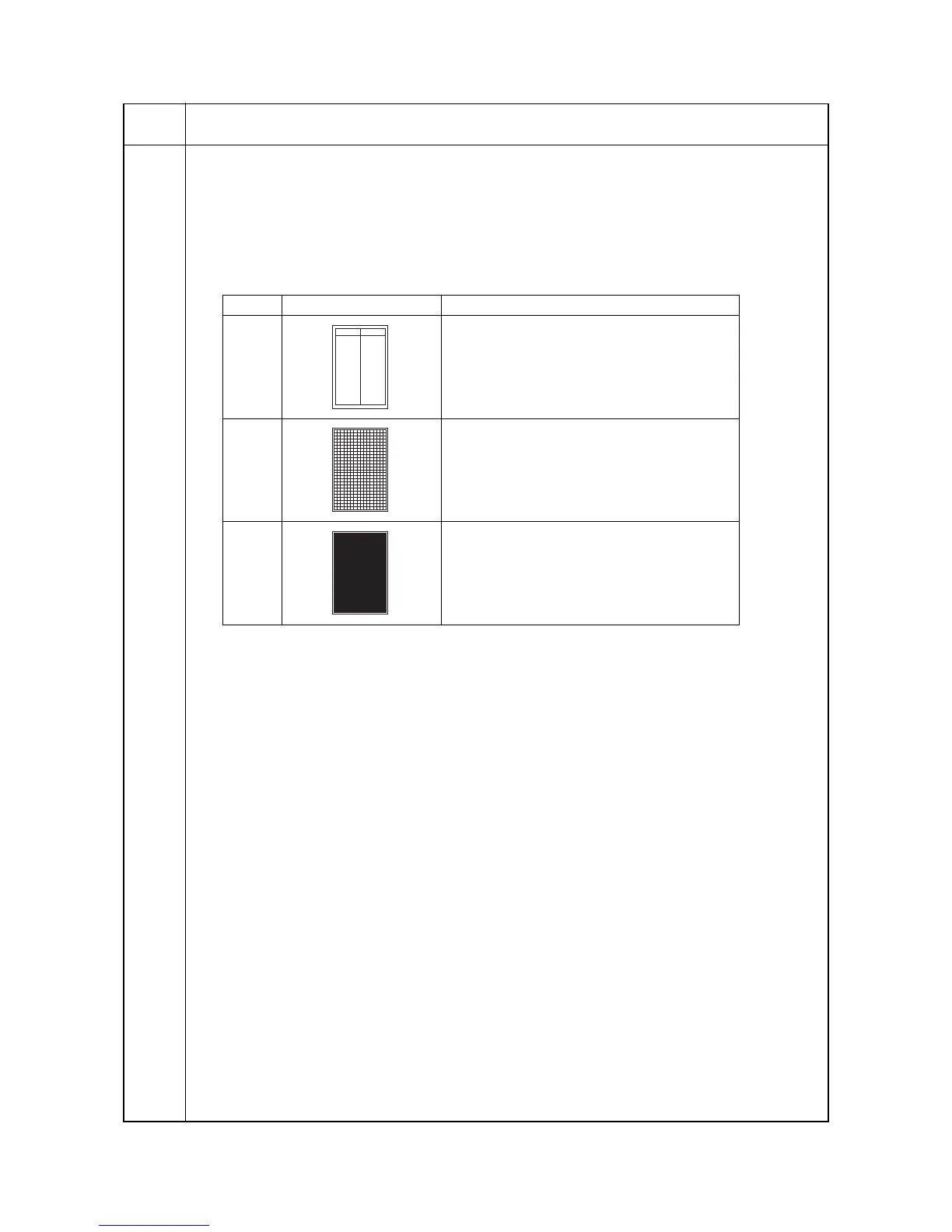

Display PG pattern to be output Purpose
0 Leading edge registration adjustment
Center line adjustment
1 Lateral squareness adjustment
Magnification adjustment
2 Checking the fuser performance (fuser pressure)
To Next Page
