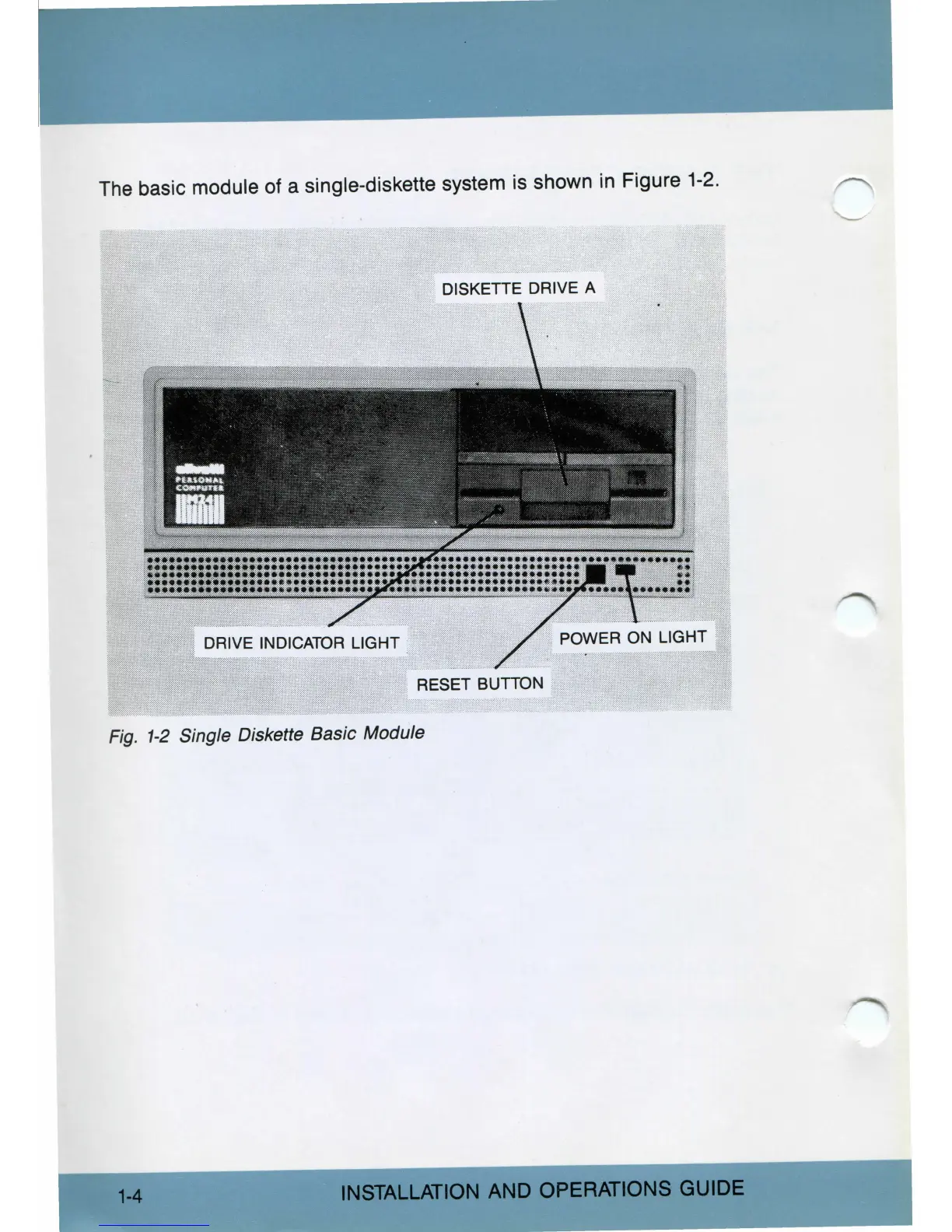

The
basic module of a single-diskette system is shown
in
Figure
1-2.
DISKETTE DRIVE A
RESET BUTTON
Fig.
1-2
Single Diskette Basic Module
1-4
INSTALLATION
AND
OPERATIONS
GUIDE
