INTRODUCTION
THE MAJOR COMPONENTS
Before installing your system, we suggest that you spend a few minutes
familiarizing yourself with the major components of the system: the
basic module, the keyboard, the display, and the printer.
THE BASIC MODULE
The basic module of the system is made up of several elements, in-
cluding one or two diskette drives or an integrated hard disk unit. The
video display can be placed on top of the basic module.
DISKETTE DRIVE B
RESET BUTTON

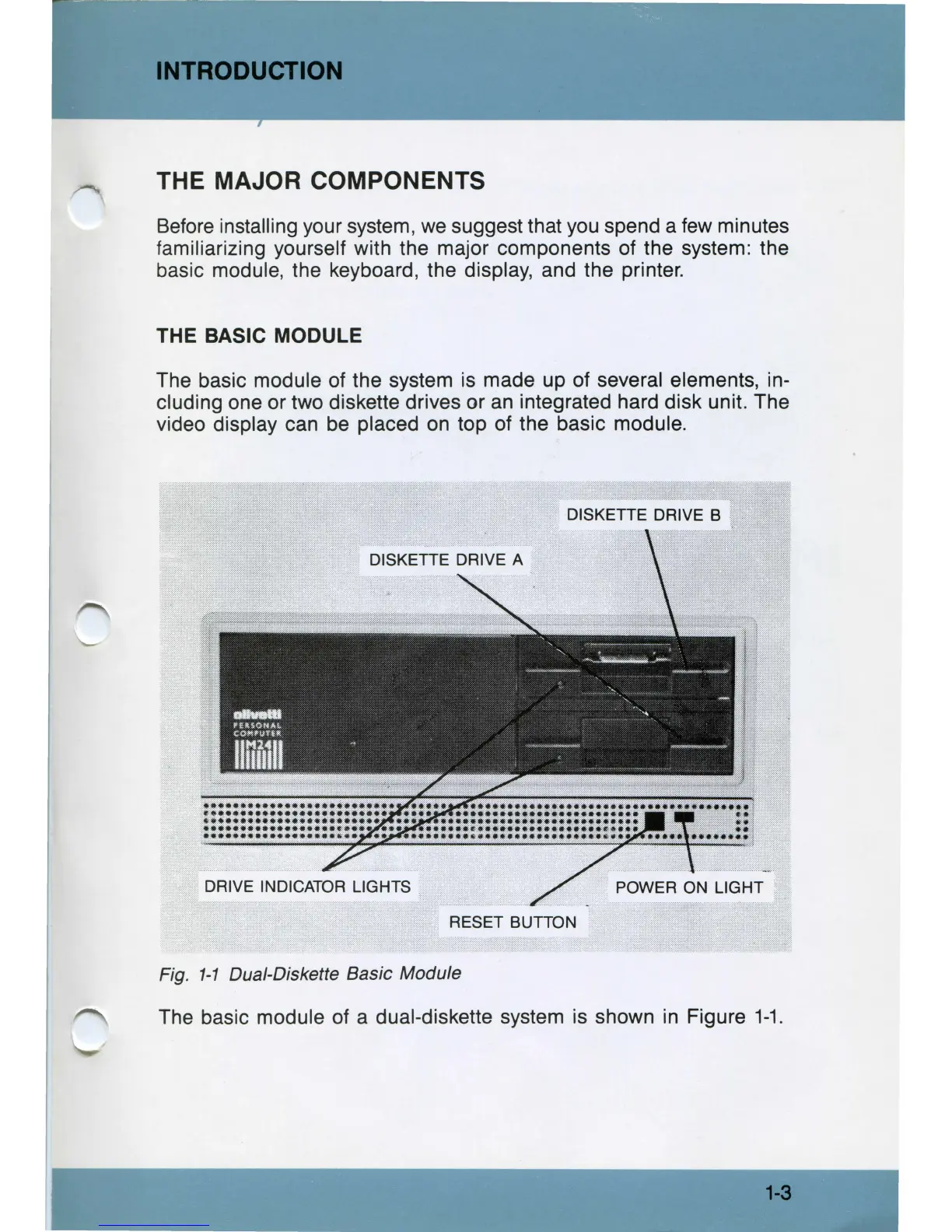

Fig. 1-1 Dual-Diskette Basic Module
The basic module of a dual-diskette system is shown in Figure 1-1.
