59
STM7
3

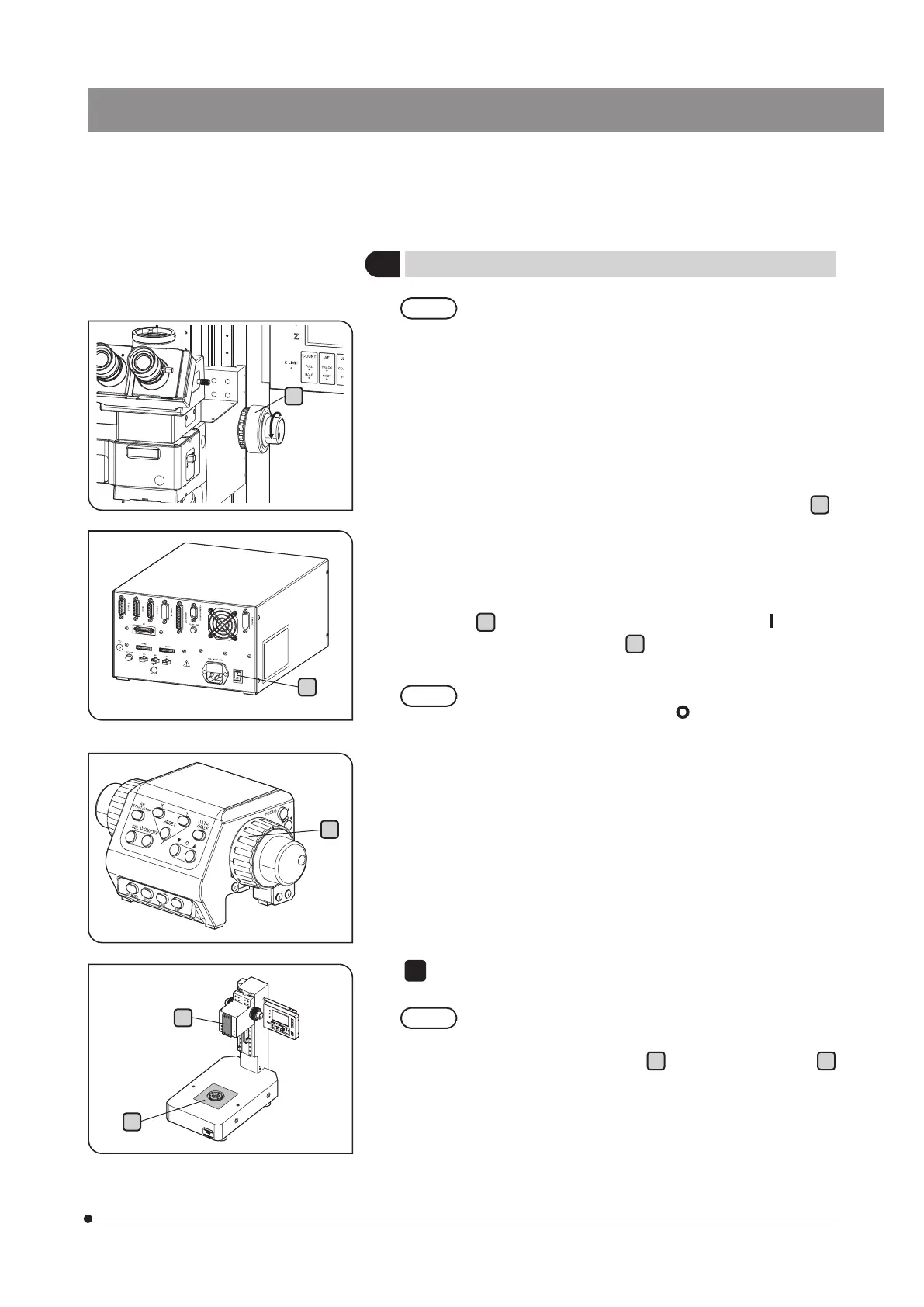

Mounting the stage
· Keep transport rods, transport sticks, and clamps/screws
for stage transport lock in a safe place. They will be used
for next transportation.
· Sudden or severe impact may exert an adverse effect upon
the precision of the microscope. Handle the stage with
care and avoid subjecting it to sudden or severe impact.
CAUTION
a
b
c
} When using the manual frame, rotate the coarse focusing knob
a
to raise the focusing unit as much as possible before installing the
stage.
} When using the motorized frame, refer to "15 Connecting cable and
cords" (page 69) and connect cables and cords. Then, set the main
switch
b
of the control box for motorized STM7-CBA to "
"(ON) and
rotate the coarse focusing knob
c
of the focusing controller STM7-
MCZ to raise the focusing unit as much as possible.
When the focusing unit is raised, set the main switch of
the control box for motorized to "
" (OFF). Unplug the
power cord from the outlet and install the stage.
CAUTION
Clean the stage mounting surface of the frame.
For cleaning procedures, see "Maintenance and storage" (page 12).
· Dust on the stage may hinder the product performance to
be manifested fully.
· Remove the anti-rust sheet
d
and the protective film
e
of the frame.
1
CAUTION
d
e
