Omega i-SERIES User Manual

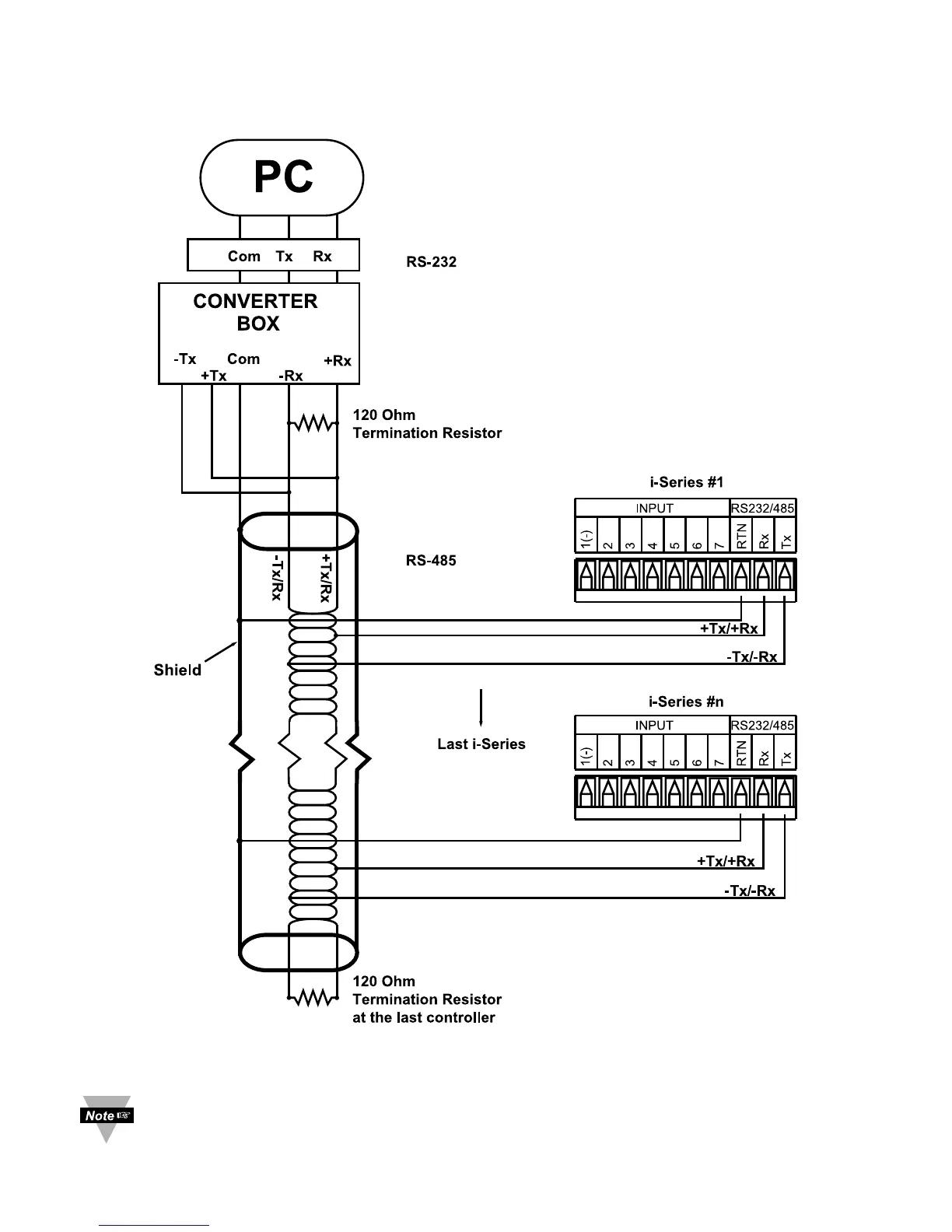

Figure 3.3 shows multipoint, half-duplex RS-485 interface connections for i-Series.
Figure 3.3 Multipoint, Half-Duplex RS-485 wiring
Value of the termination resistor is not critical and depends on the cable
impedance.
