Safety Accessories Supplementary Sheet
36 OMICRON
CPC 100 User Manual
Contains safety and operation instructions for the
CPC 100 test system.
CPC 100 Reference Manual
Contains detailed hardware and software information for the
CPC 100 test system including relevant safety instructions.
CPC 100 PTM User Manual
Contains information on how to use Primary Test Manager (PTM)
with CPC 100 test system.
TESTRANO 600 Getting Started
Contains safety information and use case examples for the
TESTRANO 600 test system.
TESTRANO 600 User Manual
Contains safety and operation instructions for the
TESTRANO 600 test system.
6.2 Operation
The SAA3 3-Position Remote Safety Switch has three operating positions shown in the following figure.

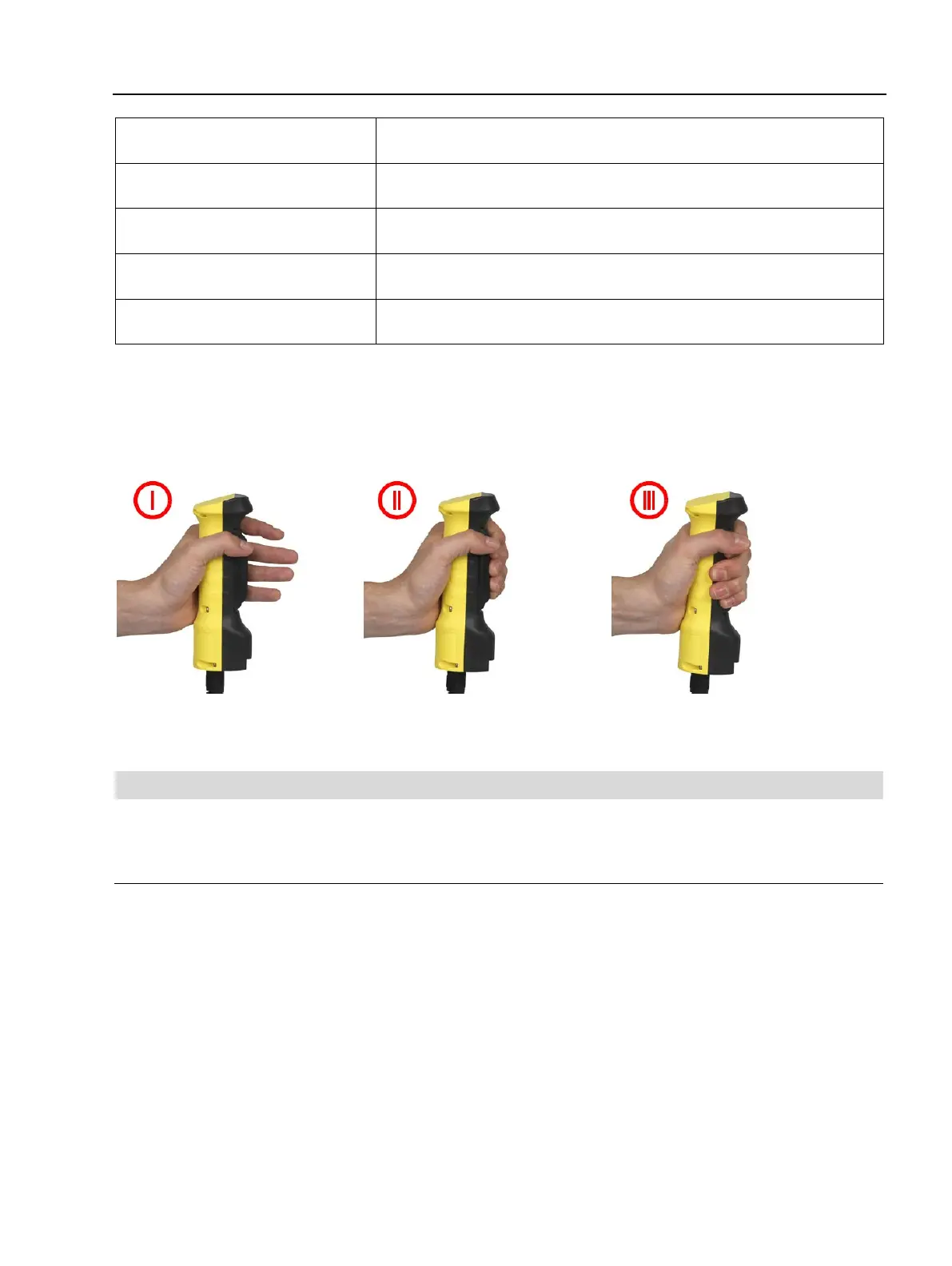

Figure 15: Operating positions of the SAA3 3-Position Remote Safety Switch
Table 21: SAA3 operating positions
Operating position Action Description
I Do not press the switch. Emergency-stop is activated.
II Press the switch into the middle position. No activation of emergency-stop.
III Press the switch all the way. Emergency-stop is activated.
6.3 Connection
To connect the SAA3 3-Position Remote Safety Switch to the main device:
1. Make sure that the test system´s main device used with the SAA3 is switched off.
2. Press the Emergency Stop button on the main device or test system and lock the main device with
a physical key (CPC 80 and CPC 100) or by pressing the software lock button (TESTRANO 600).
NOTE! CIBANO 500 and COMPANO 100 do not have a separate physical key nor a software lock
function.
3. Remove the Safety Connector Dongle from one of the SAFETY output connectors on the main
device side panel and store it for later use.
To Next Page
