SAA2 Warning Lamp
27 OMICRON
5.3 Connection
To connect the SAA2 system to the main device:
1. Make sure that the main device used with the SAA2 is switched off.
2. Press the Emergency Stop button on the main device or test system (in case of VOTANO 100 the
Emergency button on SAB1 safety box) and lock the main device with a physical key (CPC 80 and
CPC 100) or by pressing the software lock button (TESTRANO 600 and VOTANO 100).
NOTE! CIBANO 500 and COMPANO 100 do not have a separate physical key nor do they have a
software lock function.
Death or severe injury caused by high voltage or current possible.
Always place the SAA2 control unit in the working area.
3. Place the SAA2 control unit close to the main device and position the SAA2 signal lamps so that
they are clearly visible for all operators and if possible also so that the lamps surround the test area.
Use the magnetized surface to place the signal lamp on metallic objects, or fix it by using the tripod
screw, or by using the mounting ring. Make sure that the signal lamps are firmly in place and that the
Emergency Stop buttons are easily accessible.

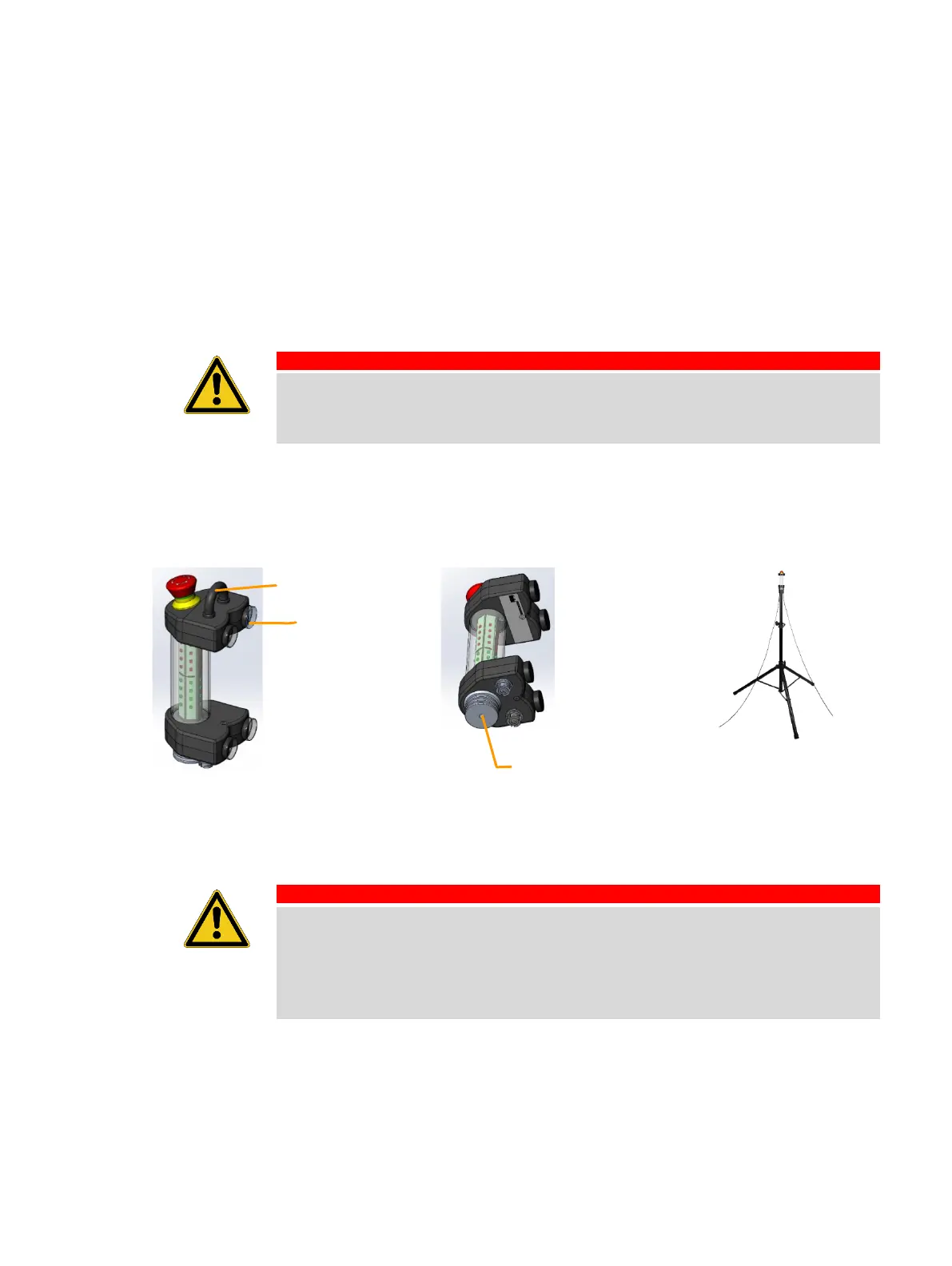

Figure 11: Mounting options
4. Connect the delivered power supply to the SAA2 control unit and connect the mains plug of the
power supply to the power outlet.
Death or severe injury caused by high voltage or current possible.
Use SAA2 only with the original power supply delivered by OMICRON.
The OMICRON power supply DC side negative is connected to the ground
(PE).
5. Remove the Safety Connector Dongle from the SAFETY connector on the main device and plug it in
the SAFETY OUT connector of the SAA2 control unit. In case of VOTANO 100 remove SAB1
connector from VOB2 SAFETY output connector.
NOTE! Alternatively, you can connect another SAA2 control unit or other Safety Accessory as
described in this Supplementary Sheet to the SAFETY OUT connector of the control unit
instead of the Safety Connector Dongle, in which case you must plug the Safety Connector
Dongle to the SAFETY OUT connector of the last cascaded Safety Accessory.
¼“ thread (torque 0.8 Nm)
1
Tripod is not included in OMICRON product range.
