Safety Accessories Supplementary Sheet
28 OMICRON
In case of VOTANO 100 connect the SAB1 to the SAFETY output connector of the last daisy
chained SAA2.
NOTE! For CIBANO 500 and TESTRANO 600 connect SAA2 only to the SAFETY OUT 1 connector
of the main device.
Death or severe injury caused by high voltage or current possible.
Only use the delivered cables to connect the control unit to the main device
and the signal lamps to each other or to the control unit.
6. Connect the SAA2 signal lamps to the CH 1 and/or CH 2 connector(s) of the control unit with the
connection cable. You can cascade up to six lamps in any channel combination according to the
wiring diagram on the bottom of the control unit. Then the signal lamps should flash alternatively in
green and red.
7. Terminate any free CH 1 or CH 2 connectors on the SAA2 control unit and the free connectors on
the SAA2 signal lamps with the SAA2 dongles.

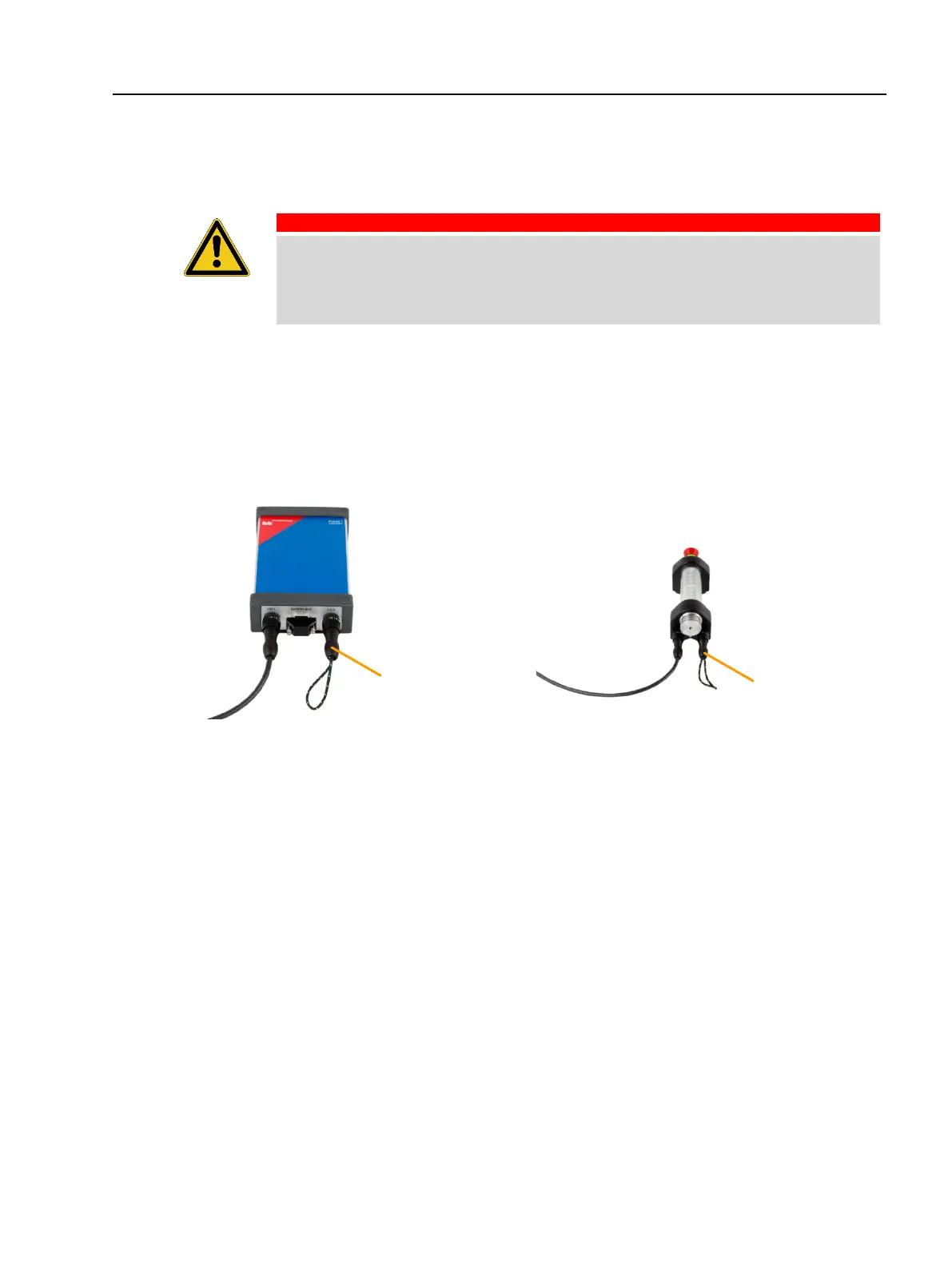

Figure 12: The use of SAA2 dongles
8. Connect the SAFETY IN connector of the control unit to the SAFETY connector of the main device
with the safety interface cable and firmly tighten the locking thumb screws. Then the signal lamps
should light with the same color as the signal light on the main device (see Table 3 for detailed
information).
9. Unlock the Emergency Stop button on the main device or test system and unlock the main device
with the key or via screen (CIBANO 500 and COMPANO 100 do not have a lock). If all signal lamps
light continuously green, the main device/test system is ready for operation.
10. With the controls on the front panel of the control unit, you can set following options: beeper on/off,
red light continuous or flashing and light intensity. See Figure 6.
SAA2 dongle
SAA2 dongle
