2-22 Installation Instructions
Installation on G3 Cabinets
External Return Bin Installation and Service Guide/67-2038 Rev D © 2011 Omnicell, Inc.

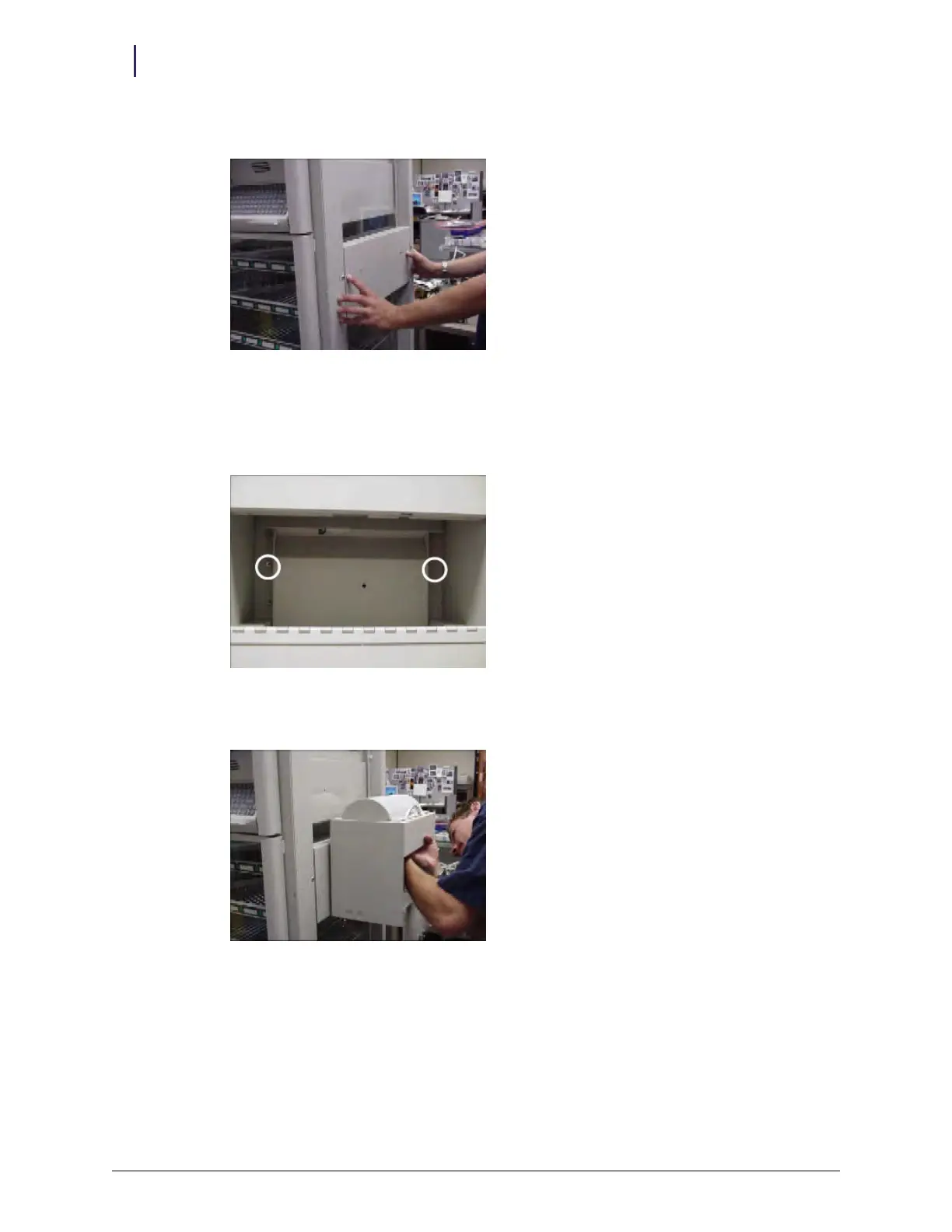

3. Place the mounting bracket over the new transport handle.
Figure 2-55. Placing mounting bracket
4. Open the ERB access door with both keys. Use key #2204 to unlock the access door and key
#2202 to override the solenoid.
5. Align the ERB drilled holes to the metal studs on the mounting plate.
Figure 2-56. Aligned drill holes
6. Fasten the ERB to the mounting plate with #8 hex nuts in two places.
Figure 2-57. Securing the ERB
7. Close and lock the access door.
