© 2011 Omnicell, Inc. External Return Bin Installation and Service Guide/67-2038 Rev D
Installation Instructions 2-43
Installation on G3 Cabinets with G4 Console Upgrade
5. Route the gray ERB PowerCom cable around the front of the E-box and connect it to the
adapter cable.

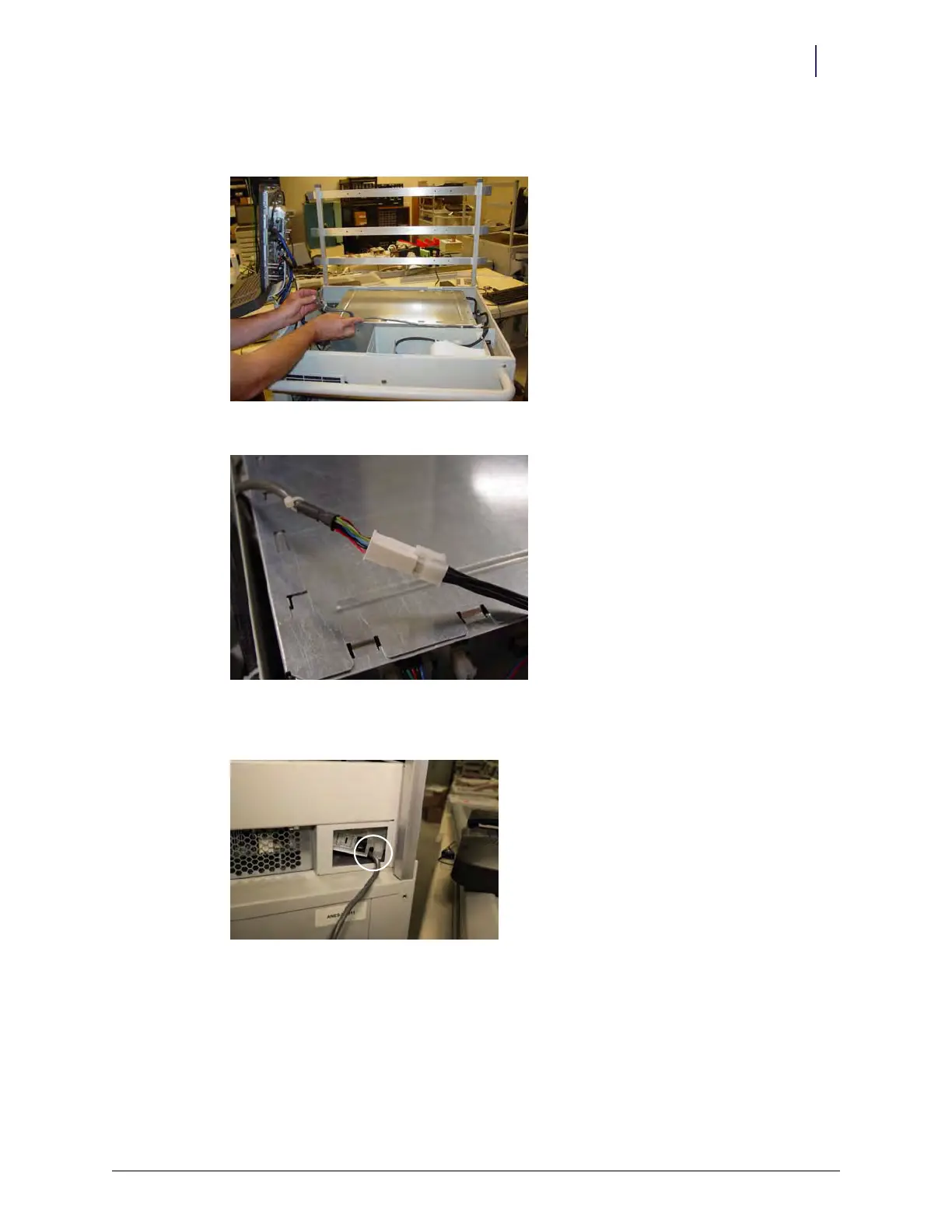

Figure 2-111. Routing the ERB cable around the front of the E-box
Figure 2-112. ERB PowerCom cable connected to ERB adapter cable
6. Cover the PowerCom cable with the slot in the plate removed in step 2.
ERB PowerCom cable
ERB adapter cable
