Installation on G4 Cabinets
8. Route the adapter cable along the front of the E-box.

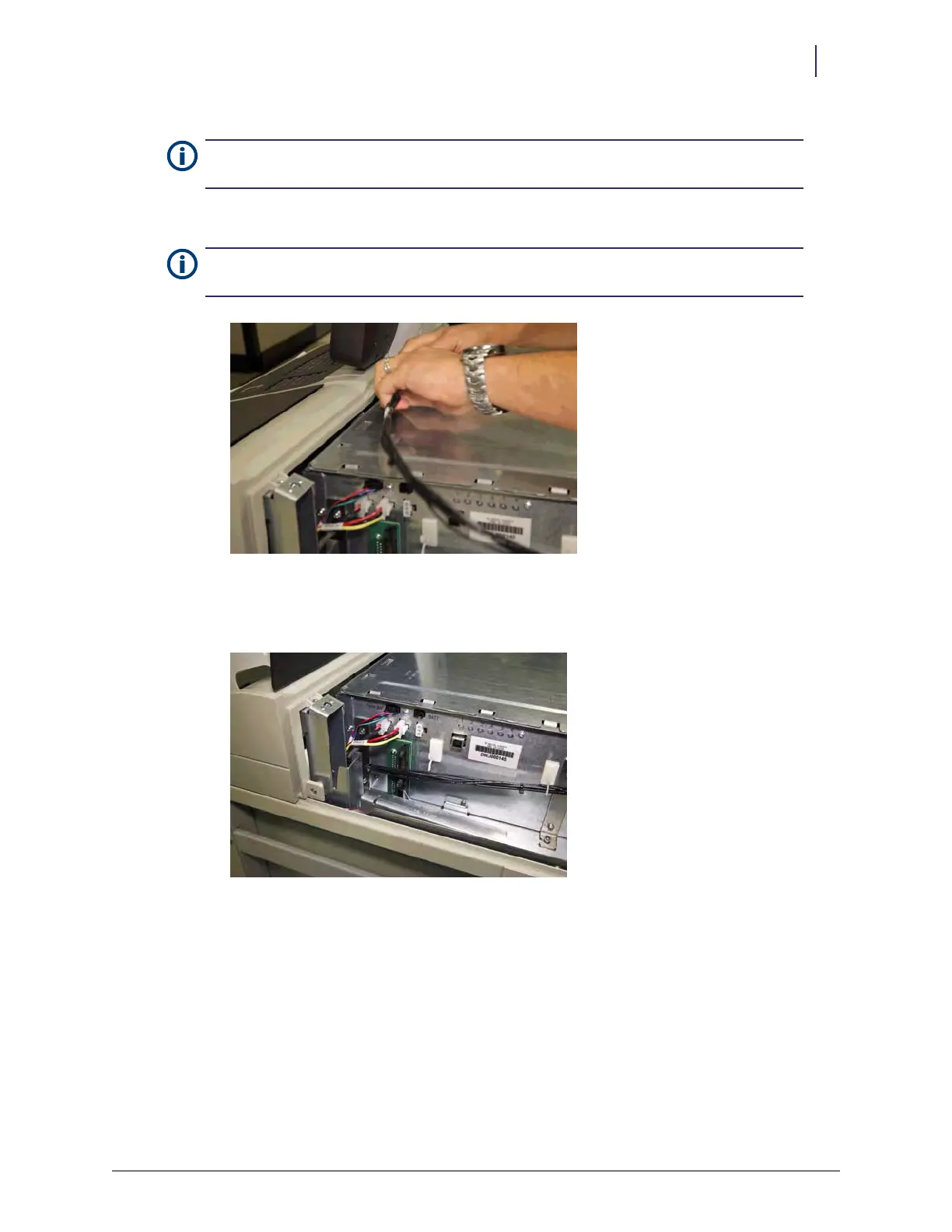

Figure 2-123. Routing cable around E-box
Make sure the cable passes to the right of the kick stand (Tinnerman tower), so it doesn’t get
pinched.
Figure 2-124. Cable next to Tinnerman tower
Note: Do not connect the adapter cable to the E-box before routing, or the female connector will not
clear the gap between the E-box and the frame.
Note: It might be necessary to flex the display assembly and front lid plastic to be able to pass the
cable through the opening.
