2-56 Installation Instructions
Installation on G4 Cabinets
External Return Bin Installation and Service Guide/67-2038 Rev D © 2011 Omnicell, Inc.

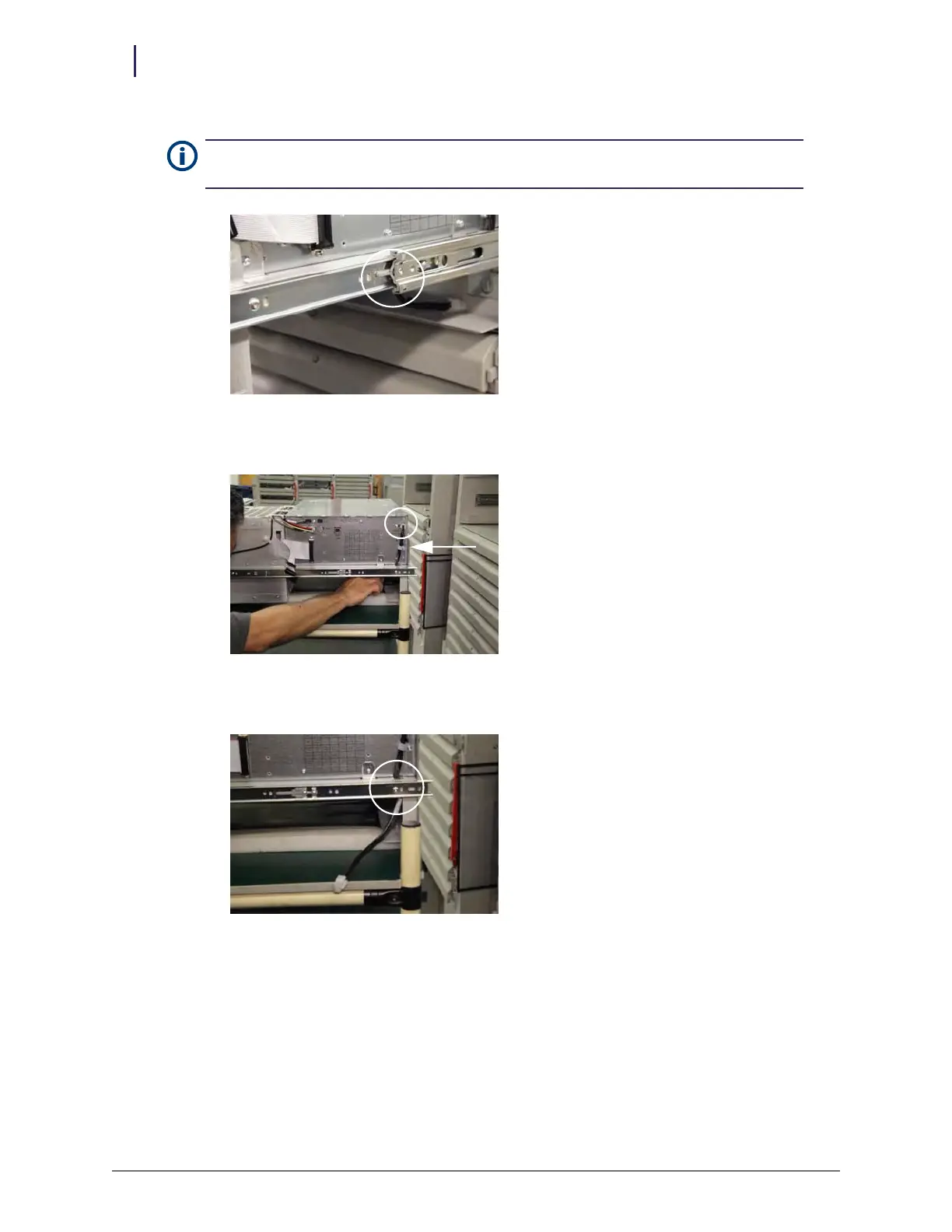

Figure 2-136. Unlocking drawer slides
3. Connect the ERB adapter cable to the E-box and secure it with a P-clip.
Figure 2-137. ERB adapter cable connected and secured with P-clip
4. Route the adapter cable down through the hole in the frame.
Figure 2-138. Adapter cable routed through frame
Note: Take care not to pull the E-box off the slides altogether. Use an assistant to make sure
the E-box does not fall.
