2-62 Installation Instructions
Installation on G4 Cabinets
External Return Bin Installation and Service Guide/67-2038 Rev D © 2011 Omnicell, Inc.
2. Remove the cover from the E-box.
a. Use cam lock key #2378 to unlock the E-box cover on the left (monitor) side of the chassis.

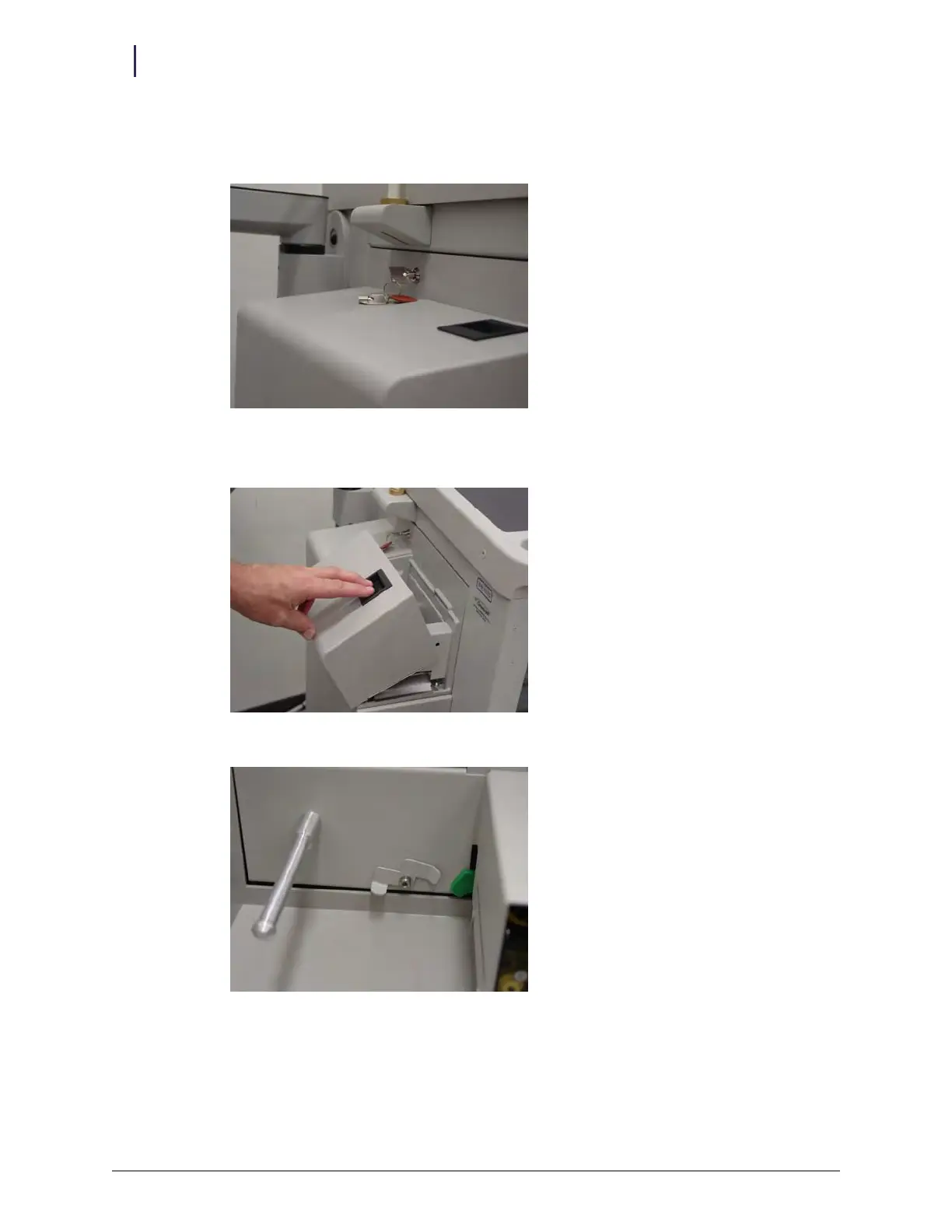

Figure 2-150. Unlocking the E-box cover
b. Open the printer door and rotate the lever on the back wall.
Figure 2-151. Opening printer door
Figure 2-152. Rotated lever
