© 2011 Omnicell, Inc. External Return Bin Installation and Service Guide/67-2038 Rev D
Installation Instructions 2-65
Installation on G4 Cabinets
b. Tilt the cover up and into place

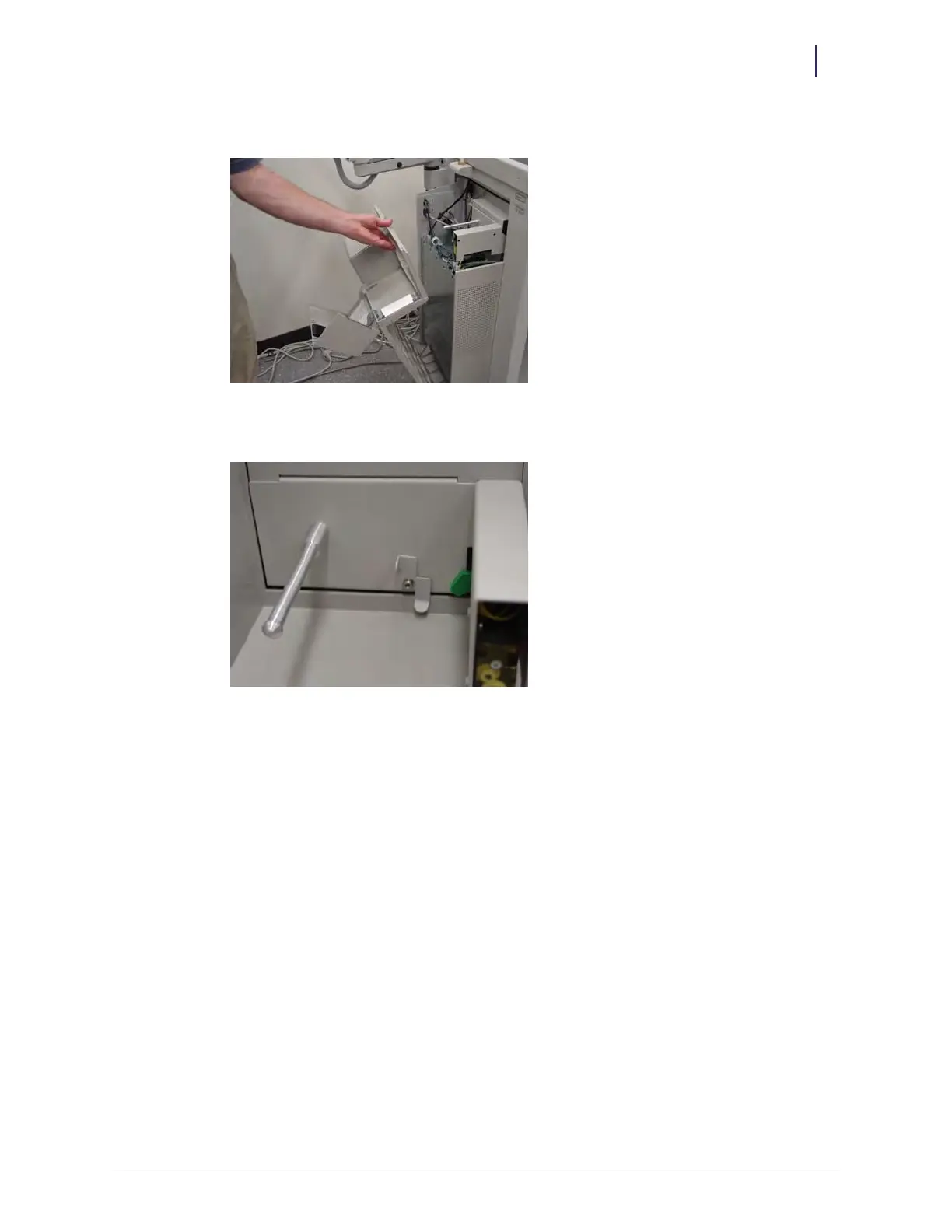

Figure 2-159. Tilting cover back into position
c. Rotate the lever back into the locked position.
Figure 2-160. Lever in locked position
d. Close the printer cover.
e. Close and lock the E-box cover.
9. Put the worksurface on and slide it closed.
10. Screw the worksurface into place.
11. Lock the worksurface.
