© 2011 Omnicell, Inc. External Return Bin Installation and Service Guide/67-2038 Rev D
Installation Instructions 2-69
Installation on G4 Cabinets
5. If there is no hole in the frame, route the ERB PowerCom cable up behind the ERB and
through the slot in the top of the back panel.

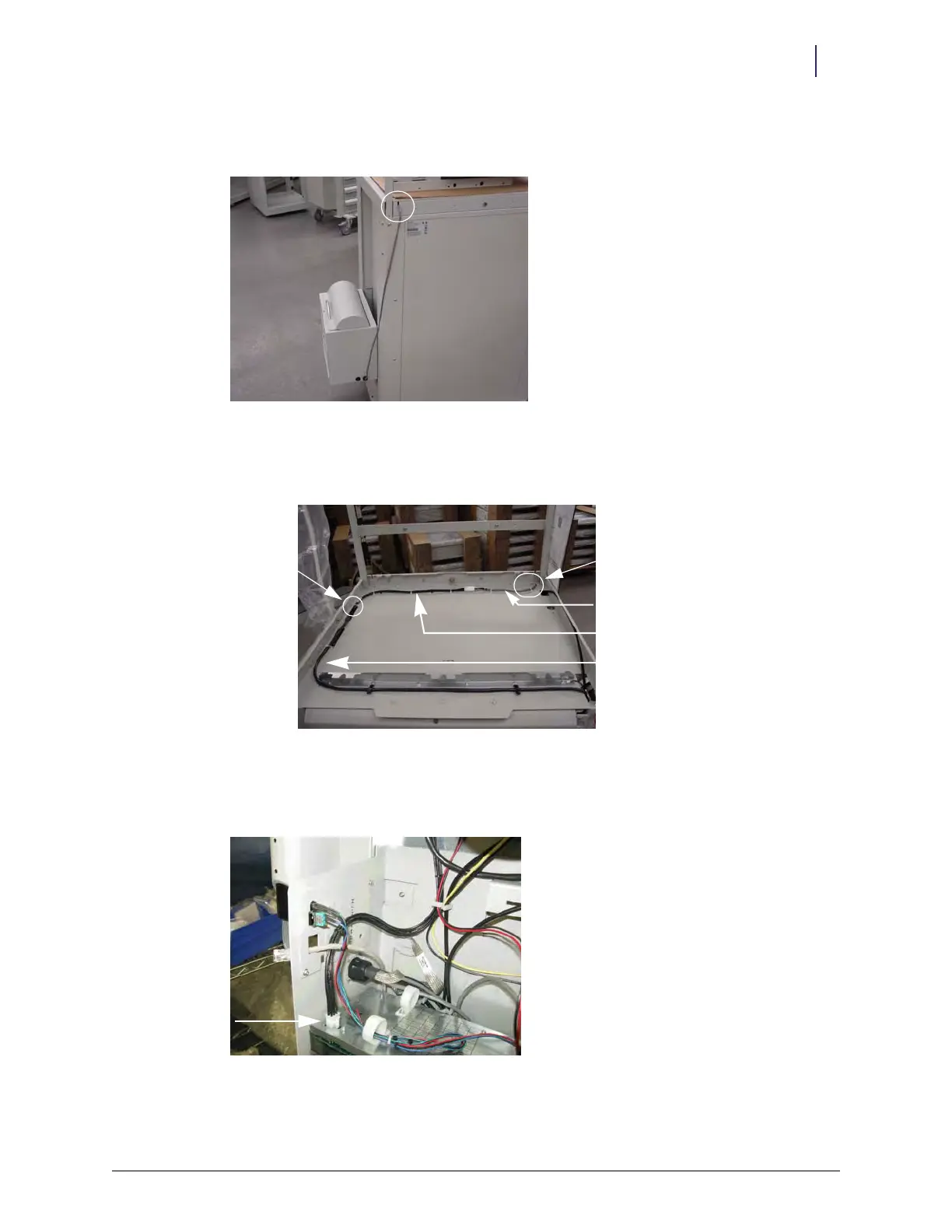

Figure 2-168. ERB cable routed behind AWS G4
6. Connect the ERB PowerCom cable to the ERB adapter cable.
7. Route the cable across the top of the chassis and into the slot for the E-box.
Figure 2-169. ERB cable running across top of AWS chassis
8. Secure the cables to the cover with cable ties, using the anchors in the cover.
9. Connect the adapter cable into the E-box.
Figure 2-170. ERB adapter cable connected to E-box
ERB PowerCom cable
Wireway cable
E-box slot
Back panel slot
ERB adapter cable
