2-74 Installation Instructions
Daisy Chains
External Return Bin Installation and Service Guide/67-2038 Rev D © 2011 Omnicell, Inc.
4. Remove the RFI cover that is under the PCB/solenoid mount.
a. Loosen the two hex nuts on either side of the internal cover using a 5/16” nut driver or
socket.

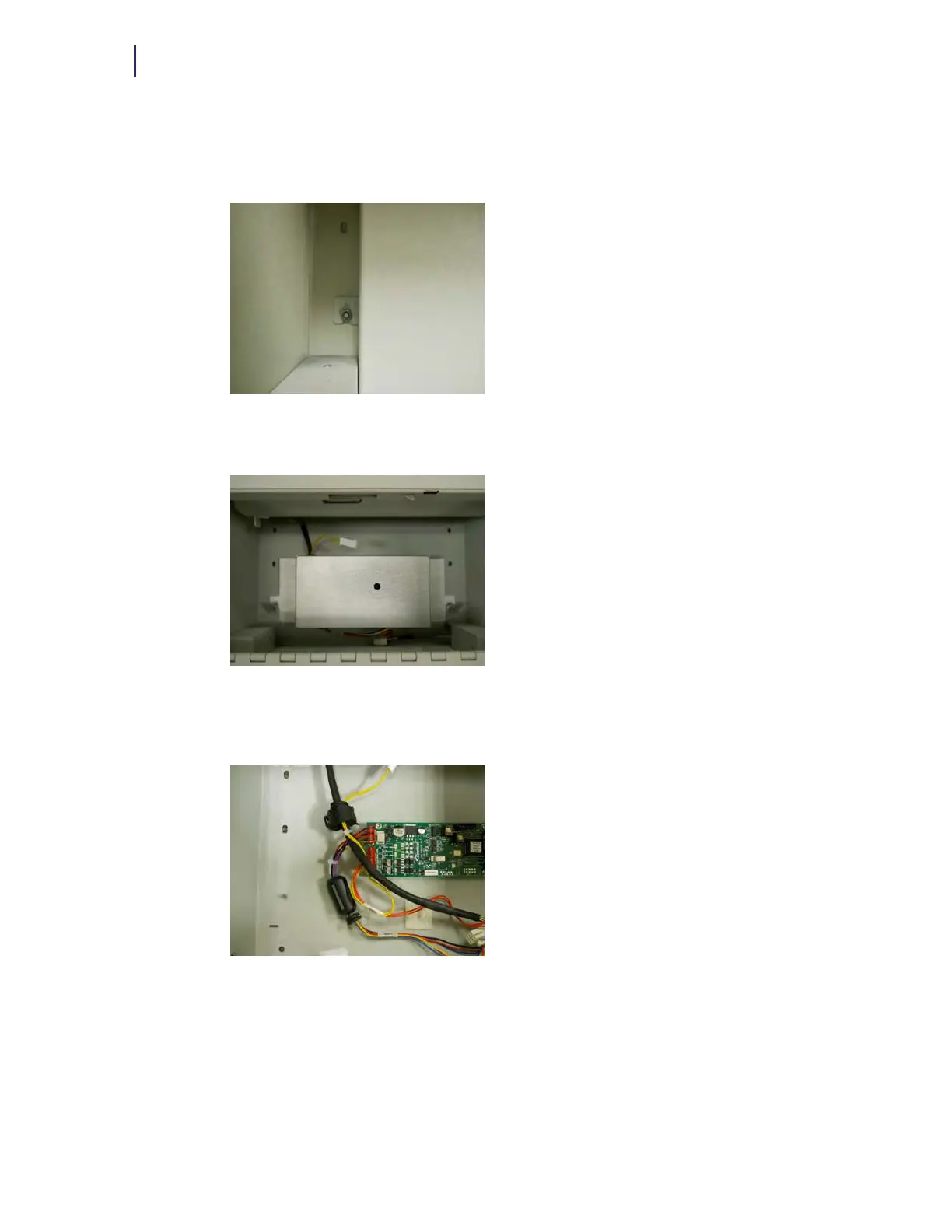

Figure 2-180. Loosening hex nuts
b. Disconnect the yellow solenoid cable for convenience.
Figure 2-181. Disconnecting solenoid cable
c. Lift the RFI cover off the two studs. Slide the wiring rubber grommets down the two
keyhole slots and remove the RFI cover completely.
Figure 2-182. PC board with RFI cover removed
