10. Secure the solenoid with the two #4 hex nuts with a 1/4" nut driver.
11. Route the cables carefully through the plate notch in the upper right corner. The cables are tied
with a cable tie.

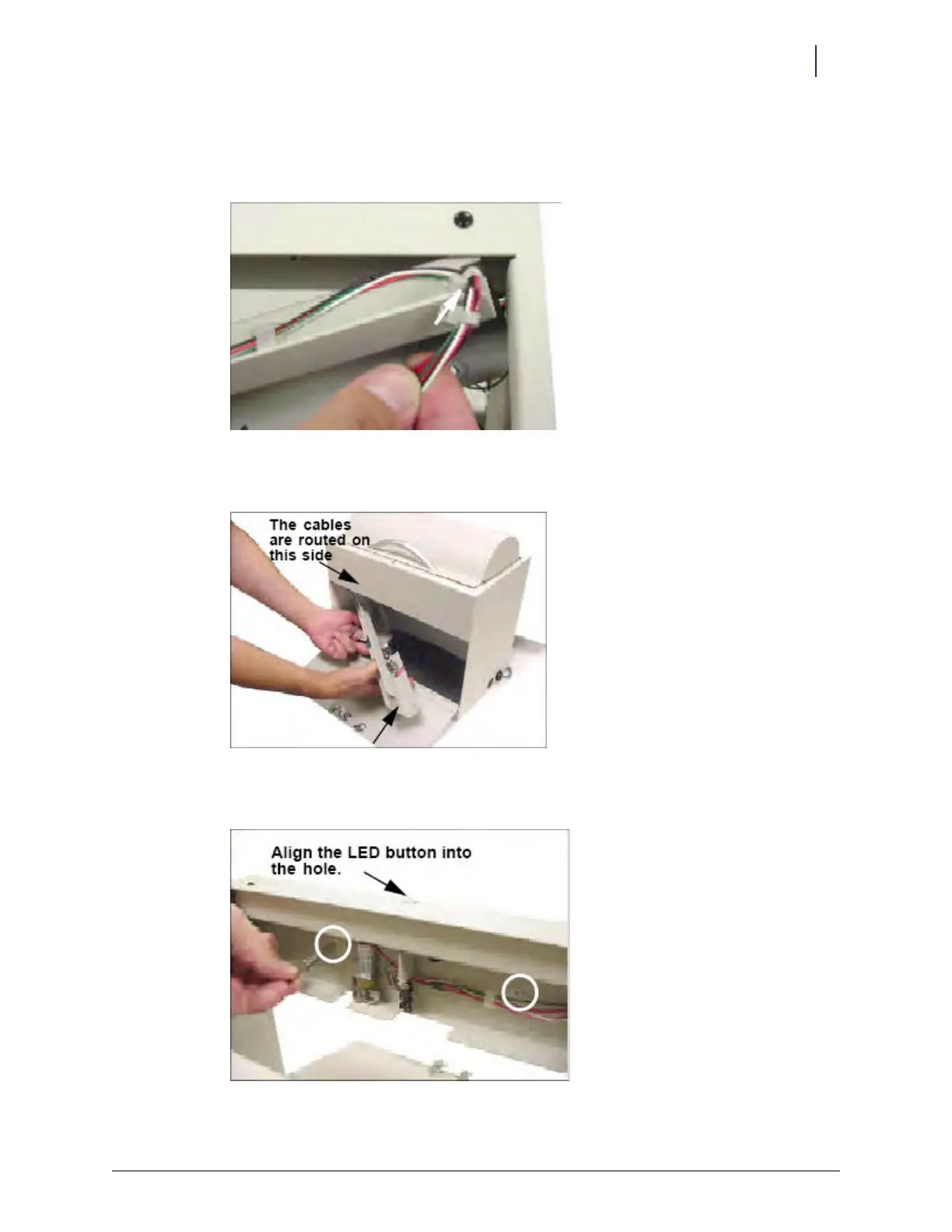

Figure 3-27. Wire routing
12. Re-install the LED bracket mount in the ERB carefully.
Figure 3-28. Re-installing the LED bracket
13. Locate the two studs on the ERB and align them to the bracket holes.
Figure 3-29. Tightening the inside #4 hex nuts
