Omron 1S Series Startup Guide

20

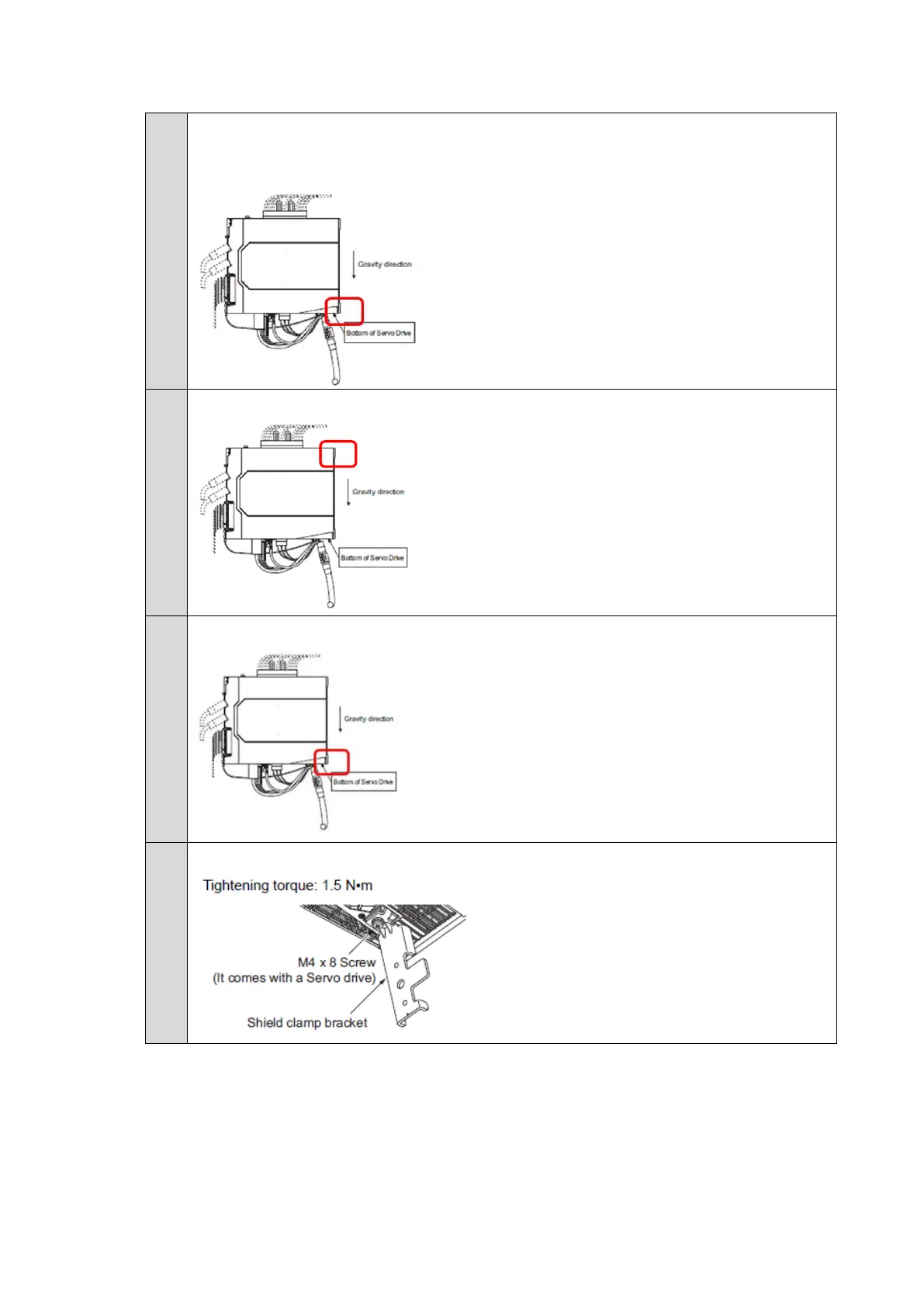

◼ Mounting the Servo Drive
1.
Put the Servo Drive in place and secure the top first and then the bottom.
Temporarily tighten the screw to attach the lower part of the Servo Drive and slide the
Servo Drive from top to bottom to put the U-groove of the Servo Drive on the screw.
2.
Tighten the screw at the upper part.
3.
Tighten the screw at the lower part.
4.
Mount a shield clamp bracket to the Servo Drive.

Omron 1S Series Specifications

General

Safety Function	STO (Safe Torque Off)
Motor Capacity	50 W to 15 kW
Output Power	50 W to 15 kW
Communication Interface	EtherCAT, MECHATROLINK-II/III
Feedback	Incremental Encoder
Operating Temperature	0 to +55°C
Protection Features	Overcurrent, Overvoltage
Ambient Humidity	20% to 90% RH (non-condensing)
Installation	Panel Mount
Weight	Varies by model
Storage Temperature	-20 to 85°C
