Omron 1S Series - Advanced Tuning;  How to Perform Advanced Tuning

93

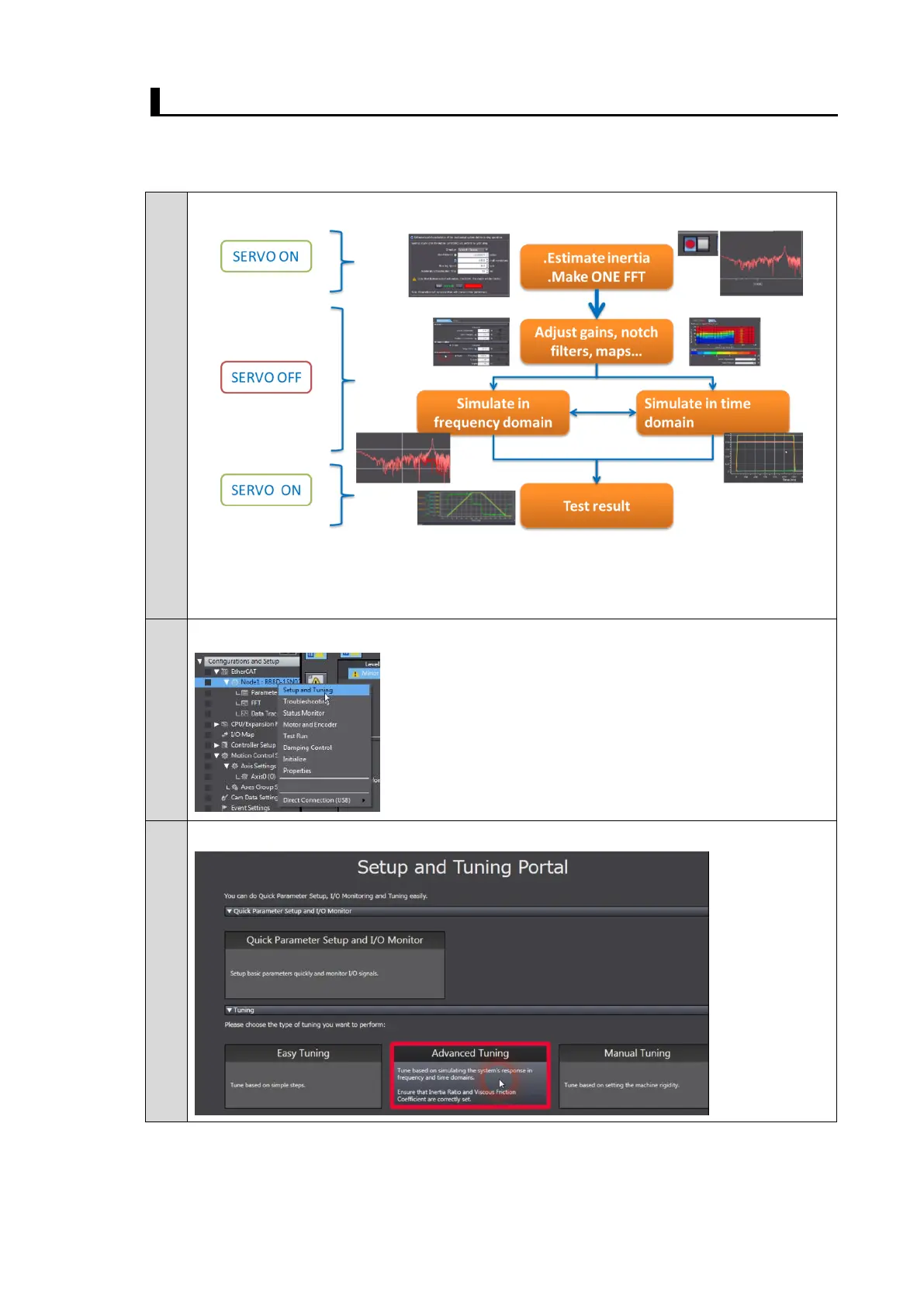

Advanced Tuning
◼ How to Perform Advanced Tuning
Overview
The example below explains how to tune a 1S-series Servo Drive and Servomotor.
Advanced tuning adjusts gains through simulation, dramatically reducing the number of
test runs and adjustment time on your actual machine.
1.
Right-click the Servo Drive and select Setup and Tuning from the menu.
2.
Click the Advanced Tuning Button.
