Omron 1S Series Startup Guide

22

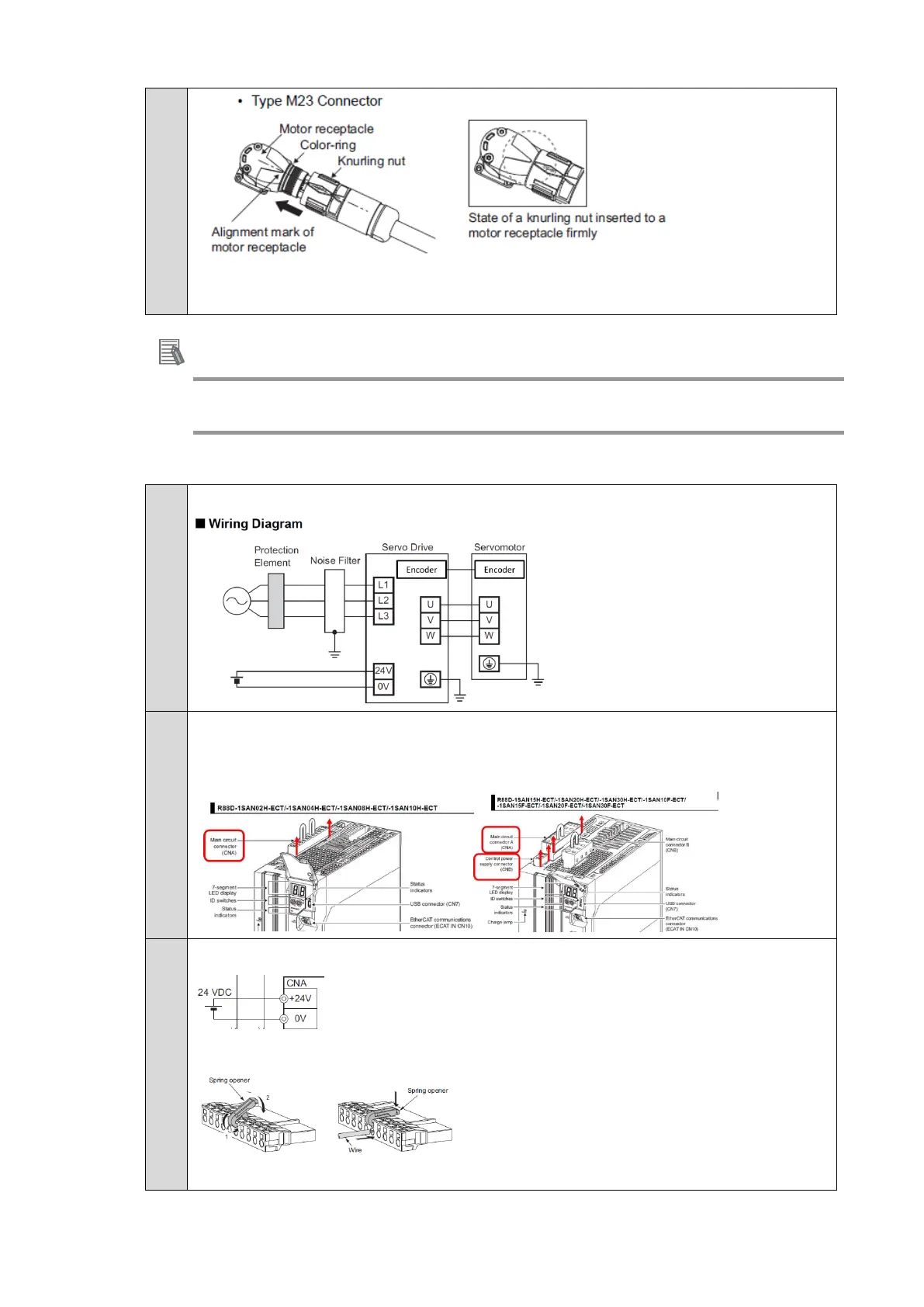

Turn the knurling nut to clockwise direction until it stops.
Additional Information
For further details on how to mount the Servomotor, refer to the 1S-series AC Servomotors/Servo
Drives with Built-in EtherCAT Communications and Safety Functionality User’s Manual (Cat. No. I621).
◼ Wiring
1.
Overview
2.
Remove the main circuit connector (CNA), or the main circuit connector A (CNA)
and control power supply connector (CND) from the Servo Drive.
200 V (up to 1 kW) 200 V (1.5 - 3 kW) and 400 V (1 - 3 kW)
3.
Wire the 24 V control power supply.
Connect wires with the spring opener.
Check the connector corresponding to your Servo Drive and AC power supply.

Omron 1S Series Specifications

General

Safety Function	STO (Safe Torque Off)
Motor Capacity	50 W to 15 kW
Output Power	50 W to 15 kW
Communication Interface	EtherCAT, MECHATROLINK-II/III
Feedback	Incremental Encoder
Operating Temperature	0 to +55°C
Protection Features	Overcurrent, Overvoltage
Ambient Humidity	20% to 90% RH (non-condensing)
Installation	Panel Mount
Weight	Varies by model
Storage Temperature	-20 to 85°C
