Omron 1S Series Startup Guide

23

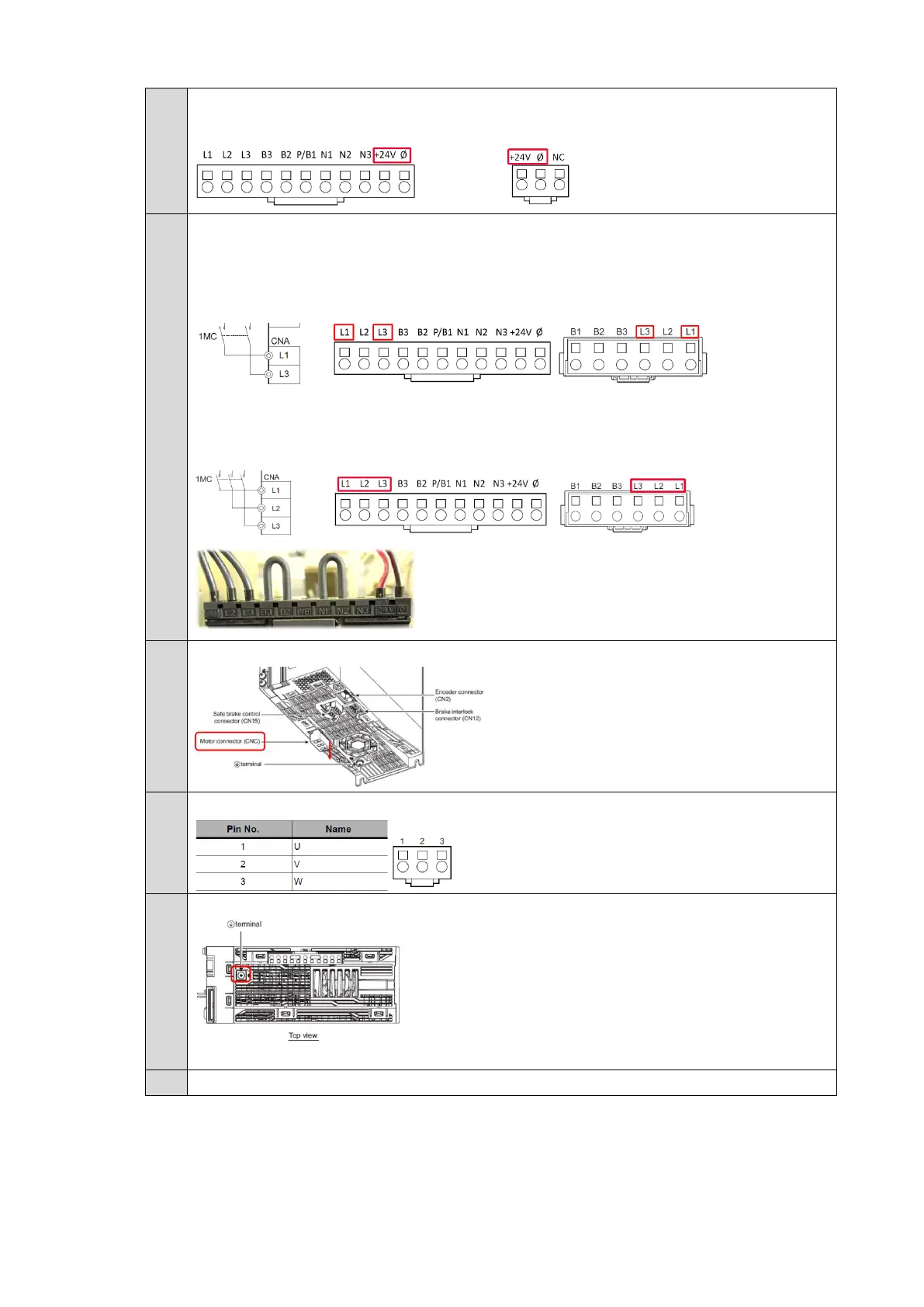

CNA for 200 V (up to 1 kW) CND for 200 V (1.5 - 3 kW) and 400 V (1 - 3
kW)
4.
Wire the main circuit power supply.
Check the connector corresponding to your Servo Drive and AC power supply.
Single-phase
200 V (up to 1 kW) 200 V (1.5 kW)
3-phase
200 V (up to 1 kW) 200 V (1.5 - 3 kW) and 400 V (1 - 3
kW)
Example: CNA for 200 V (up to 1 kW)
5.
Remove the motor connector (CNC) from the Servo Drive.
6.
Connect the power line to the phase U, V, and W of the Servomotor.
7.
Screw the PE wire of the main circuit power supply cable to the Servo Drive.
8.
Plug back the above connectors to the Servo Drive. (Power and motor)

Omron 1S Series Specifications

General

Safety Function	STO (Safe Torque Off)
Motor Capacity	50 W to 15 kW
Output Power	50 W to 15 kW
Communication Interface	EtherCAT, MECHATROLINK-II/III
Feedback	Incremental Encoder
Operating Temperature	0 to +55°C
Protection Features	Overcurrent, Overvoltage
Ambient Humidity	20% to 90% RH (non-condensing)
Installation	Panel Mount
Weight	Varies by model
Storage Temperature	-20 to 85°C
