Omron 1S Series Startup Guide

34
4.

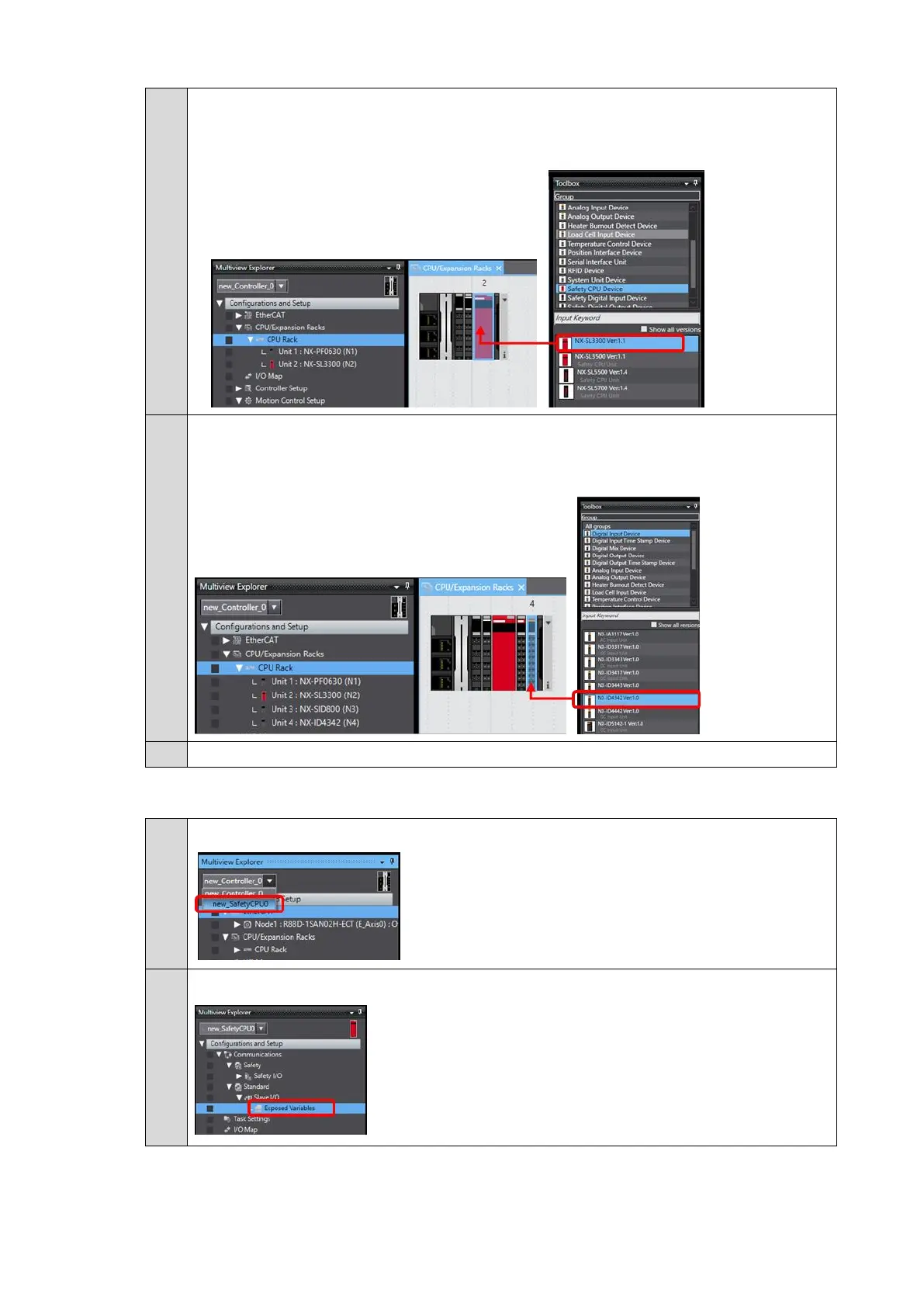

Drag a safety digital input device to the location where you want to add it in the
CPU and Expansion Racks Tab Page.
In this example, drag the NX-SID800 Safety Input Unit.
5.
Drag a digital input device to the location where you want to add it in the CPU and
Expansion Racks Tab Page.
In this example, drag the NX-ID4342 Digital Input Unit.
6.
Turn ON the power supply to all devices.
◼ Setting to Transfer Data from the Standard Controller to the Safety Controller
1.
Select new_SafetyCPU0 from the list.
2.
Double-click Exposed Variables.

Omron 1S Series Specifications

General

Safety Function	STO (Safe Torque Off)
Motor Capacity	50 W to 15 kW
Output Power	50 W to 15 kW
Communication Interface	EtherCAT, MECHATROLINK-II/III
Feedback	Incremental Encoder
Operating Temperature	0 to +55°C
Protection Features	Overcurrent, Overvoltage
Ambient Humidity	20% to 90% RH (non-condensing)
Installation	Panel Mount
Weight	Varies by model
Storage Temperature	-20 to 85°C
