Omron 1S Series Startup Guide

30
4.

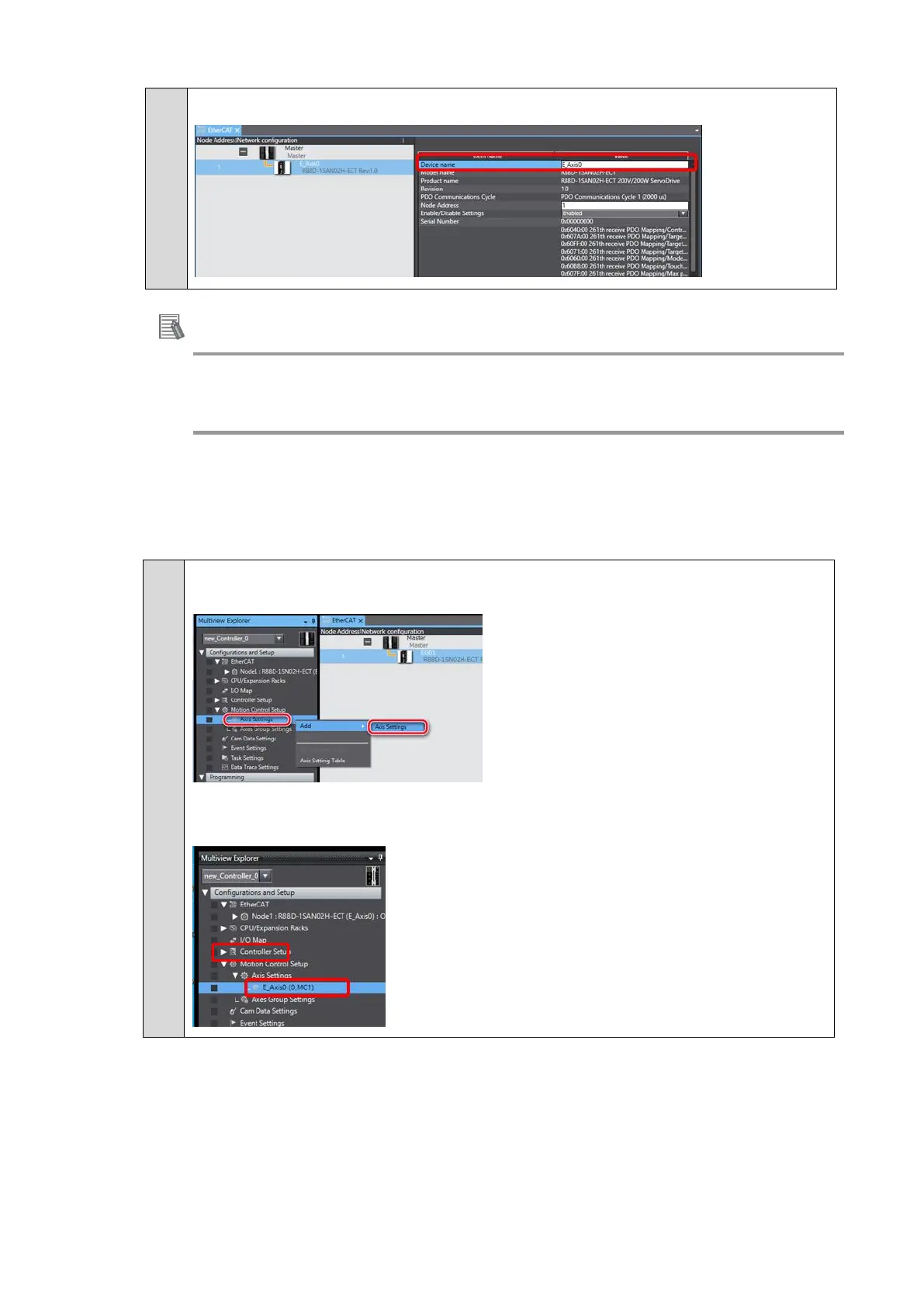

Change the device name of the Servo Drive to E_Axis0.
Additional Information
If the physical EtherCAT network configuration is already connected, you can automatically create the
virtual network configuration on the Sysmac Studio from the physical network configuration.
Refer to the Sysmac Studio Version 1 Operation Manual (Cat. No. W504) for the procedure.
◼ Setting an Axis
This section describes how to add the axis that is used to control the Servo Drive, assign the
Servo Drive, and set the axis parameters.
1.
Right-click Axis Settings in the Multiview Explorer and select Add - Motion
Control Axis from the menu.
The axis Axis0 is added to the Multiview Explorer.
This added axis is called the axis 0.

Omron 1S Series Specifications

General

Safety Function	STO (Safe Torque Off)
Motor Capacity	50 W to 15 kW
Output Power	50 W to 15 kW
Communication Interface	EtherCAT, MECHATROLINK-II/III
Feedback	Incremental Encoder
Operating Temperature	0 to +55°C
Protection Features	Overcurrent, Overvoltage
Ambient Humidity	20% to 90% RH (non-condensing)
Installation	Panel Mount
Weight	Varies by model
Storage Temperature	-20 to 85°C
