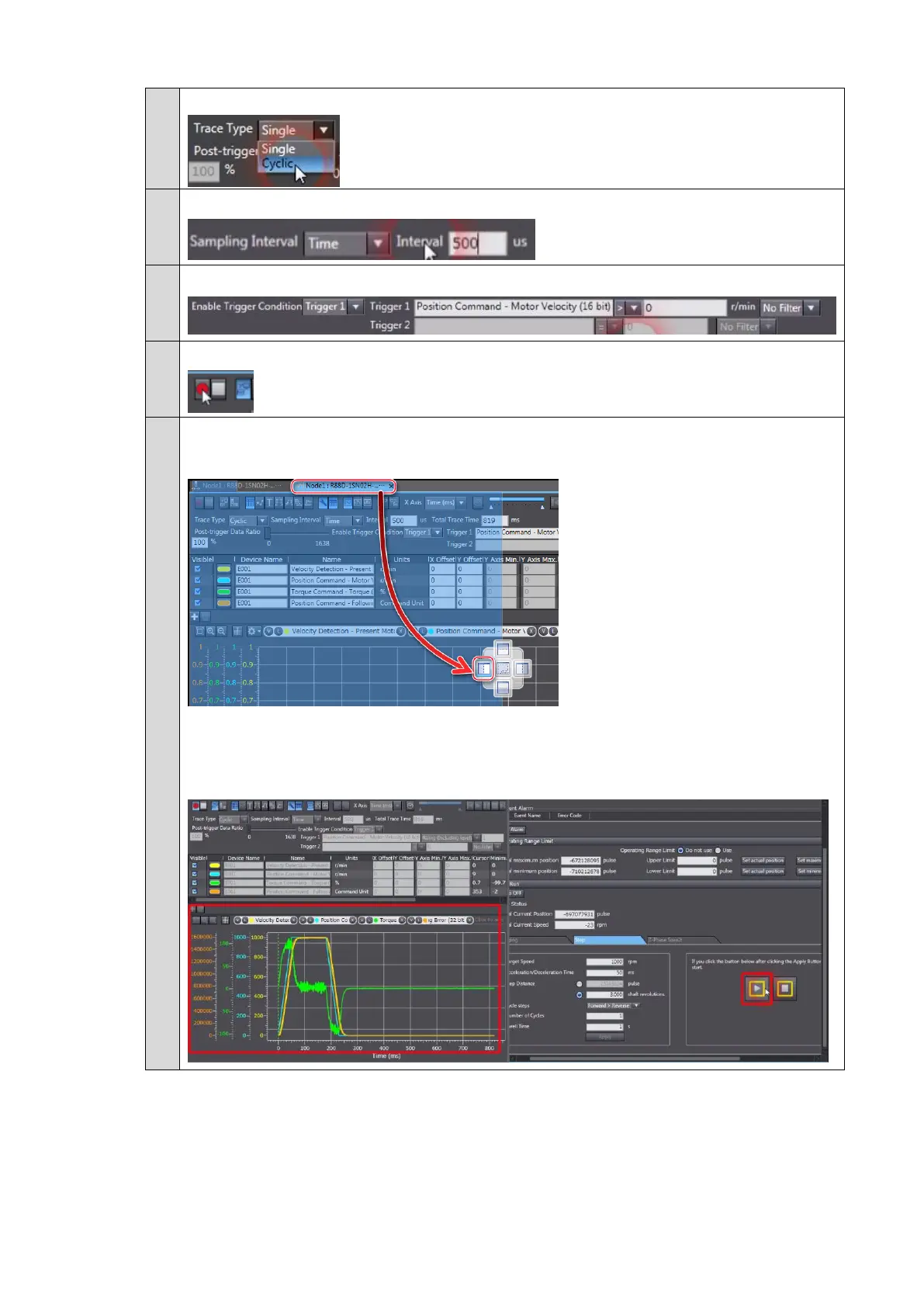

5.
Select Cyclic for the trace type.
6.
Specify the sampling interval.
7.
Specify the enable trigger condition.
8.
Click the Execute Button.
9.
Align the Test Run Window and the Data Trace Window horizontally by docking
them.
Click the Start Button in the Test Run Window to run the Servomotor.
Traced data will appear cyclically.
