2 Starting a Sample System
EtherCAT Communication Unit USER’S MANUAL (3G3AX-MX2-ECT)
2-8 Communication Starting and Operation
Checking with NJ501-1x00 Master
2
2-8-2 Network Setup
4 Building a program
Build the project program you created, so as to convert it to the format supported by the
NJ501-1x00 Master.
Select Build Controller from the Project Menu.
Confirm that the program that is built is with no errors.
5 Synchronizing with the CPU Unit
Transfer the program and settings created in Sysmac Studio to the NJ501-1x00 Master.
Go online and select Synchronization from the Controller Menu.
Click Transfer To Controller to transfer the program data.
When the transfer is completed successfully, the RUN LED indicator on the inverter turns ON.
The inverter is now ready.

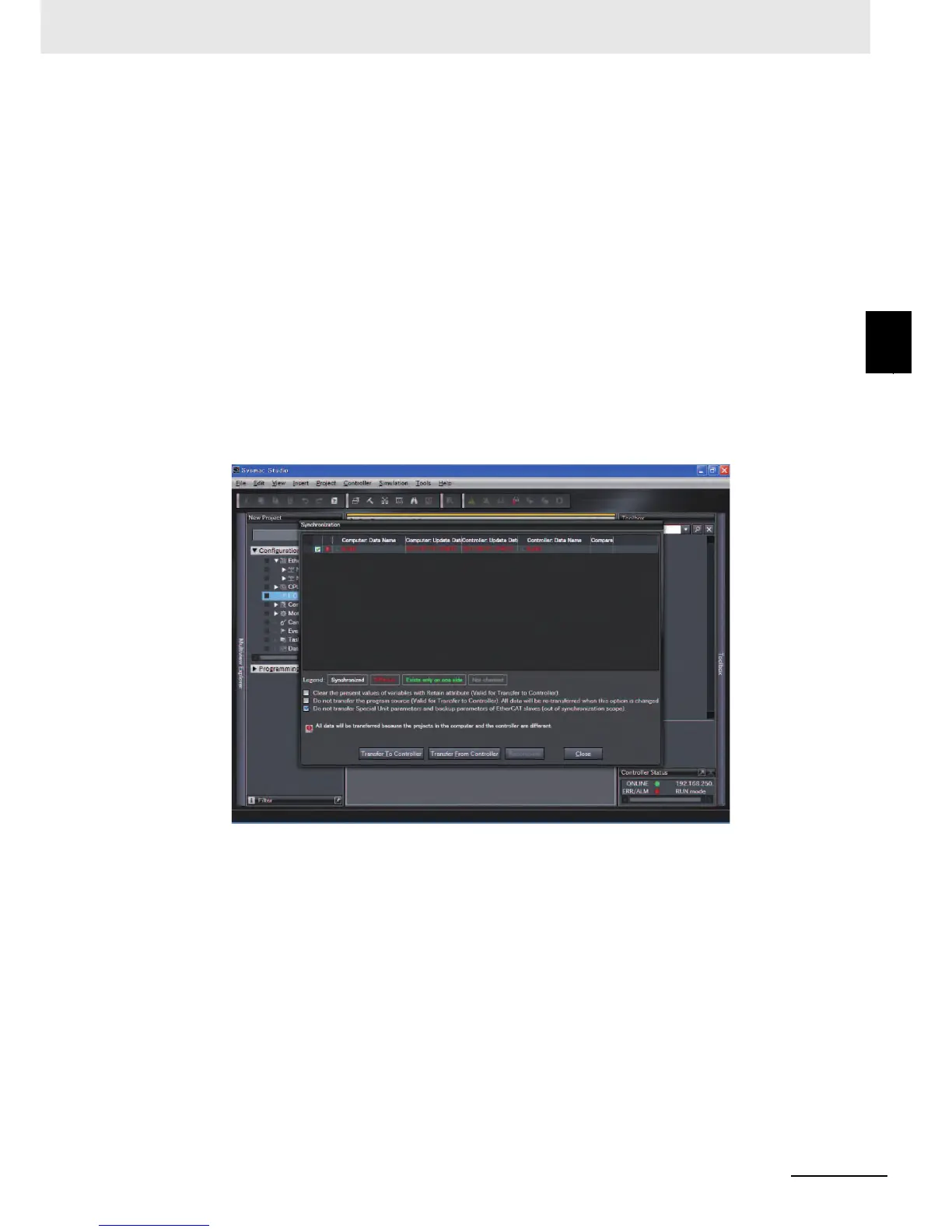

<Synchronization Pane>
