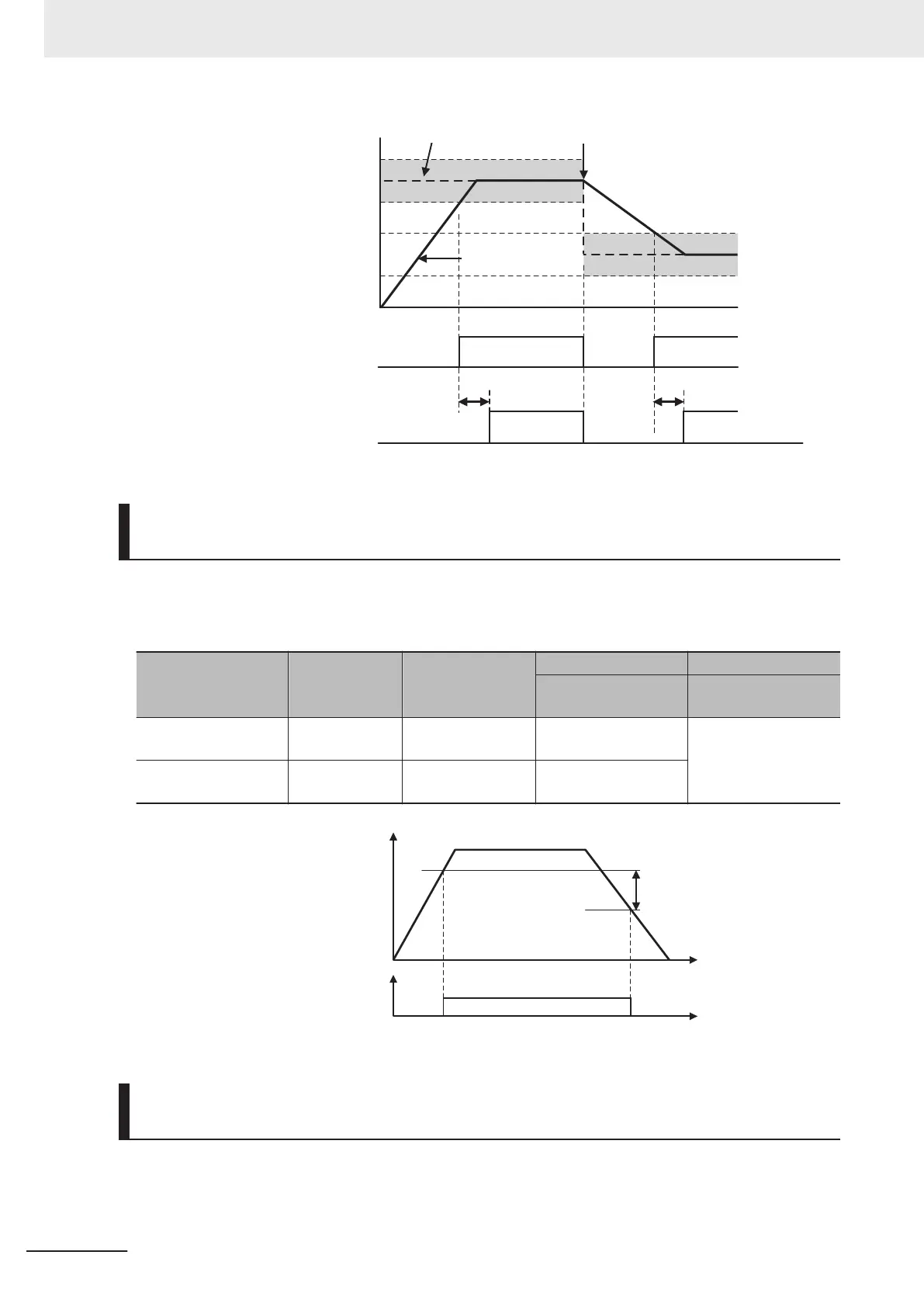

Frequency arrival signal 1
(constant speed) “F
AR1”
Frequency Arrival 2 ON Timer
(3005Hex-1EHex)
Frequency
Arrival 2 ON
Timer
(3005Hex-
1EHex)
ON
ON ON
ON
Set frequency (1) + 3005Hex-1FHex
Set frequency (2) + 3005Hex-1FHex
Set frequency (1) - 3005Hex-1FHex
Set frequency (2) - 3005Hex-1FHex
Set frequency (1)
Set frequency (2)
Frequency arrival signal 2 “FAR2”
Output frequency
Frequency settings changedFrequency setting
Over Set Frequency Arrival Signal (3005Hex-15Hex,
3005Hex-1CHex = 2: FDT1, 31:FDT2)
An ON signal is output when the output frequency becomes equal to or higher than Frequency Detec-
tion Level (3005Hex-20Hex/3005Hex-25Hex), and the signal is turned OFF when the frequency falls
below Frequency Detection Hysteresis Width (3005Hex-21Hex).
Name Output signal
3005Hex-15Hex,
3005Hex-1CHex
allocated data
Operation level Hysteresis width
Range: 0.0 to
500.0Hz
Range: 0.0 to
500.0Hz
Over set frequency ar-
rival signal 1
FDT1 2 3005Hex-20Hex
3005Hex-21Hex
Over set frequency ar-
rival signal 2
FDT2 31 3005Hex-25Hex
Operation level
(3005Hex-20Hex/3005Hex-25Hex)
Over set frequency arrival signal 1 “FDT1”
Over set frequency arrival signal 2 “FDT2”
Set frequency
Frequency Detection Hysteresis Width
(FDT1/ FDT2) (3005Hex-21Hex)
Cancellation level
Time
Time
Output frequency
ON
Set-Frequency-Only Arrival Signal (3005Hex-15Hex,
3005Hex-1CHex = 183: FDT3, 185: FDT4)
An ON signal is output when the output frequency is within the range of Frequency Detection Level
(3005Hex-20Hex/3005Hex-25Hex), and the signal is turned OFF when the output frequency is out of
range.
8 Other Functions
8-80
M1 Series EtherCAT Type User’s Manual (I670)
