Omron 3G3M1-A4004-ECT - Load Mode Selection

Parameter No. Function name Data Description
Default
data
Unit

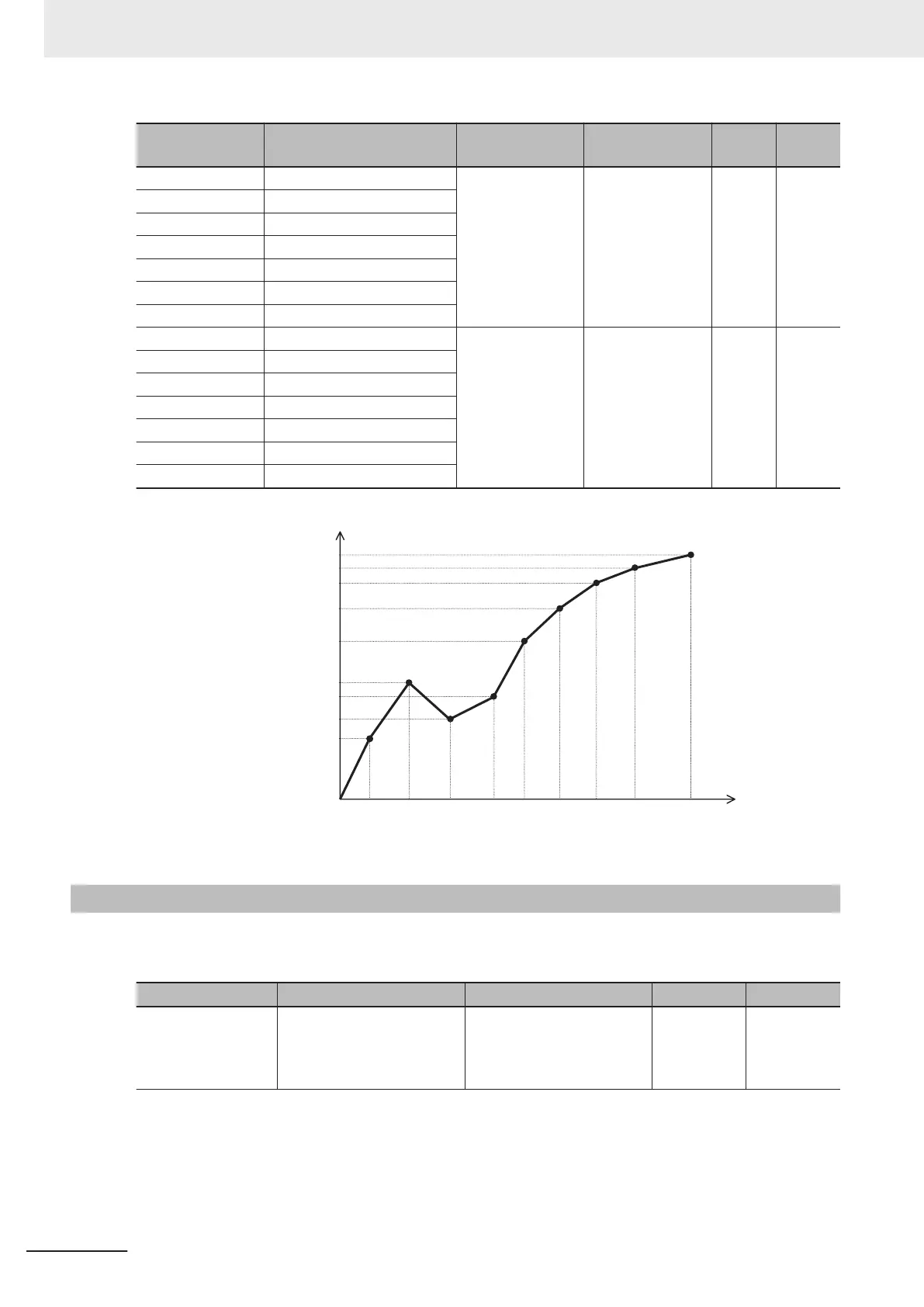

301FHex-43Hex Non-linear V/f Frequency 1
0.0: Disable
0.1 to 590.0
Sets the frequen-
cy at each break
point.
0.0 Hz
301FHex-45Hex Non-linear V/f Frequency 2
301FHex-47Hex Non-linear V/f Frequency 3
301FHex-49Hex Non-linear V/f Frequency 4
301FHex-4BHex Non-linear V/f Frequency 5
301FHex-4DHex Non-linear V/f Frequency 6
301FHex-4FHex Non-linear V/f Frequency 7
301FHex-44Hex Non-linear V/f Voltage 1
0 to 240 (for 200
V class series)
0 to 500 (for 400
V class series)
Sets the voltage
at each break
point.
0 V
301FHex-46Hex Non-linear V/f Voltage 2
301FHex-48Hex Non-linear V/f Voltage 3
301FHex-4AHex Non-linear V/f Voltage 4
301FHex-4CHex Non-linear V/f Voltage 5
301FHex-4EHex Non-linear V/f Voltage 6
301FHex-50Hex Non-linear V/f Voltage 7
301FHex-44Hex
301FHex-4CHex
301FHex-4AHex
301FHex-46Hex
301FHex-48Hex
301FHex-4EHex
3004Hex-06Hex
301FHex-50Hex
3004Hex-07Hex
301FHex-
43Hex
301FHex-
45Hex
301FHex-
4BHex
301FHex-
49Hex
301FHex-
47Hex
301FHex-
4DHex
3004Hex-
05Hex
301FHex-
4FHex
3004Hex-
04Hex
Output frequency
Output voltage
6-2-2
Load Mode Selection
Select either of the heavy load mode (HHD/HD) or the light load mode (HND/ND) according to the ap-
plication.
Parameter No. Function name Data Default data Unit
3004Hex-51Hex Load Mode Selection
0: HHD
1: HND
3: HD (only for 400 V)
4: ND (only for 400 V)
0 -
6 Basic Settings
6-10
M1 Series EtherCAT Type User’s Manual (I670)
