ON OFF
ON OFF
Outpu
t frequency
FW
RUN
• The signal is not output when at stop frequency and starting frequency or below

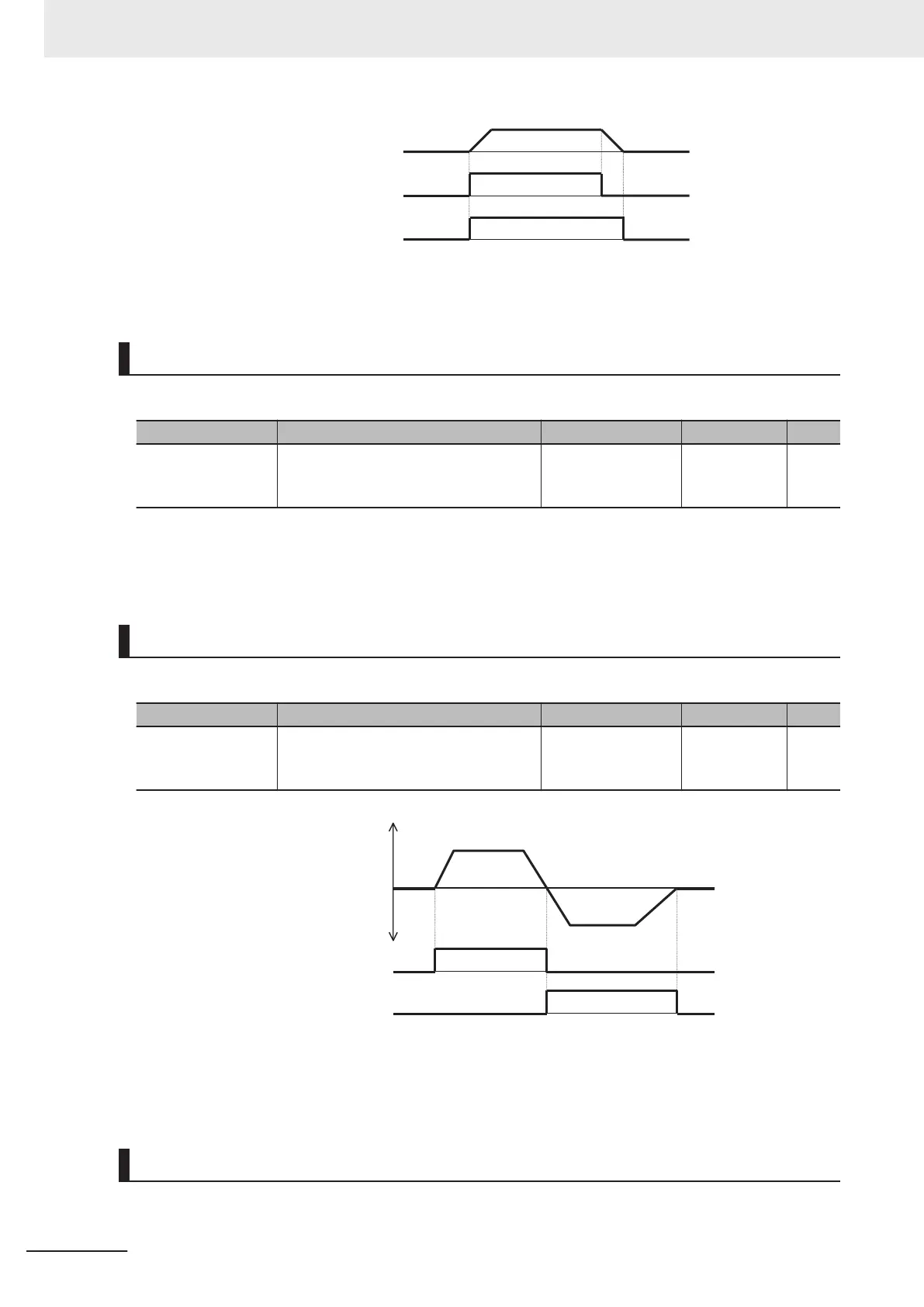

Forward Run Signal (FWR)
• This signal is output while the inverter performs forward operation.
Parameter No. Function name Data Default data Unit
3005Hex-15Hex/
3005Hex-1CHex
Output Terminal [DO1] Function Selec-
tion/Output Terminal [ROA, ROB] Func-
tion Selection
52: FWR (Forward
run signal) - -
• This signal is not output while the inverter performs reverse operation, when it is stopped or during
free-run. Note, however, that during control methods with speed sensor, judgment is performed
based on the speed detection value to output the signal even in free-run status.
Reverse Run Signal (RVR)
• This signal is output while the inverter performs reverse operation.
Parameter No. Function name Data Default data Unit
3005Hex-15Hex/
3005Hex-1CHex
Output Terminal [DO1] Function Selec-
tion/Output T
erminal [ROA, ROB] Func-
tion Selection
53: R
VR (Reverse
run signal) - -
Outpu
t frequency
FWR
R
VR
R
ev
e
rse
Forward
• This signal is not output while the inverter performs forward operation, when it is stopped or during
free-run. Note, however, that during control methods with speed sensor
, judgment is performed
based on the speed detection value to output the signal even in free-run status.
Frequency Arrival 1 (Constant Speed) (FAR1)
• This signal is output when the output frequency arrives at the frequency reference.
6 Basic Settings
6-62
M1 Series EtherCAT Type User’s Manual (I670)
