Omron 3G3M1-A4110-ECT - AX Terminal Function (AX)

Parameter No. Function name Data Default data Unit
3005Hex-4DHex
Main Circuit DC Voltage Low-
voltage Detection Level
200 to 400V (200Vseries)
400 to 800V (400Vseries)
235 V
3005Hex-15Hex/
3005Hex-1CHex
Output Terminal [DO1] Func-
tion Selection/Output T
erminal
[ROA, ROB] Function Selec-
tion
77: U-EDC (Low DC link bus
voltage detection)
- -
Main Circuit
DC Voltage
Main Circuit DC Voltage Low-voltage
Detection Level (3005Hex-4DHex)
“U-EDC”
8-8-22

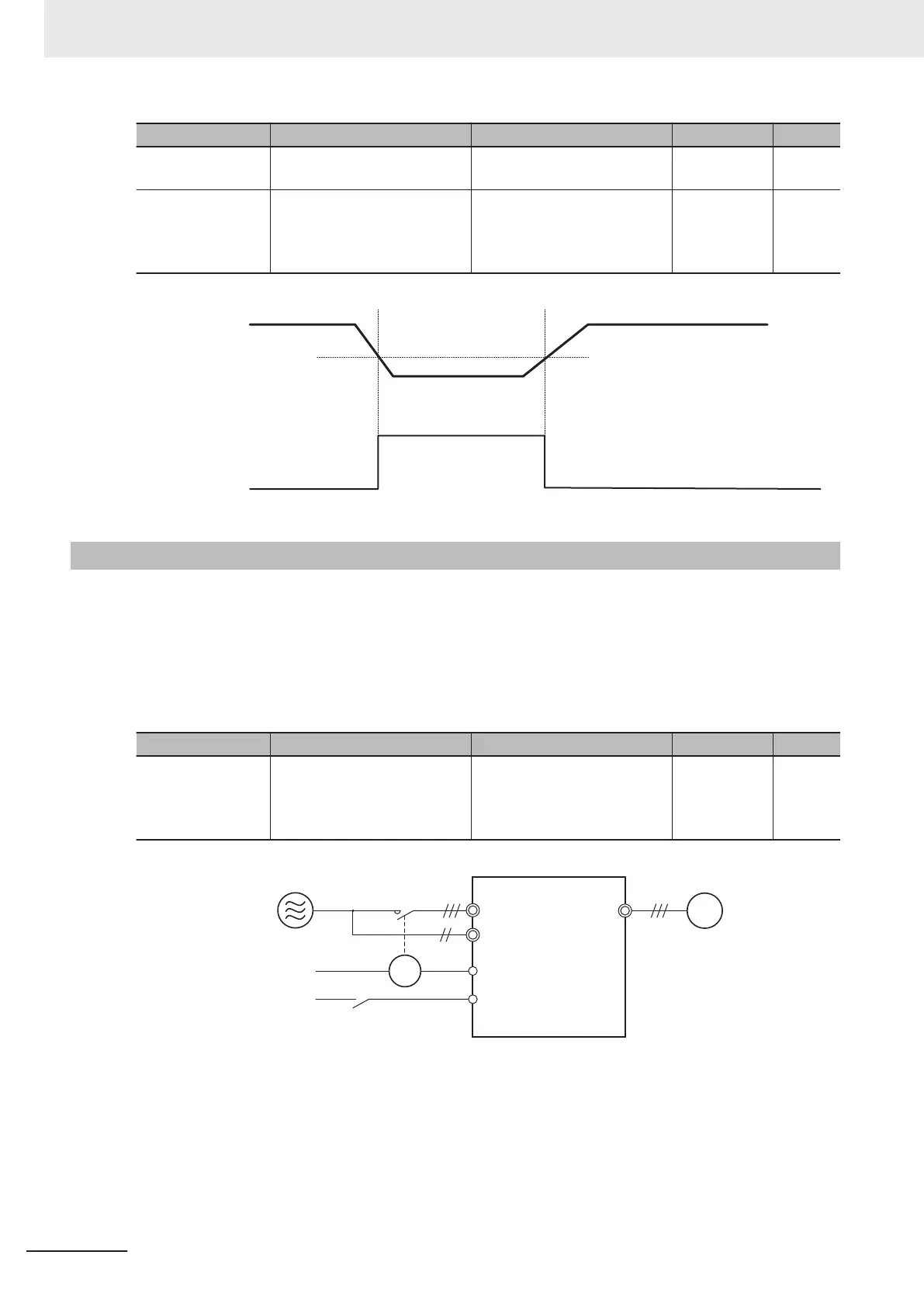

AX Terminal Function (AX)
This function is used to control the electromagnetic contactor (MC) at the inverter input side in associ-
ation with the RUN command. It turns ON when the RUN command is input. When the stop command
is input, this function turns OFF after the inverter undergoes a deceleration stop. This function turns
OFF momentarily when the free run command is input and an alarm is generated. “AX” can be select-
ed at a capacity of 18.5kW or more of auxiliary power supply
.
Connect the power supply directly between R0 and T0.
Parameter No. Function name Data Default data Unit
3005Hex-15Hex/
3005Hex-1CHex
Output Terminal [DO1] Func-
tion Selection/Output Terminal
[ROA, ROB] Function Selec-
tion
15: AX (Switch MC on the in-
put power lines)
- -
L1/R to L3/T
R0, T0
DO1 (“AX”)
F
W
U, V, W
M
Power supply
“FW”
Motor
3G3M1
MC
MC
8 Other Functions
8-94
M1 Series EtherCAT Type User’s Manual (I670)
