Omron 3G3M1-A4110-ECT - External Dimensions

Note that FreeRun mode in the synchronization mode has a different meaning from free-run stop of an In-
verter.
1-3-3

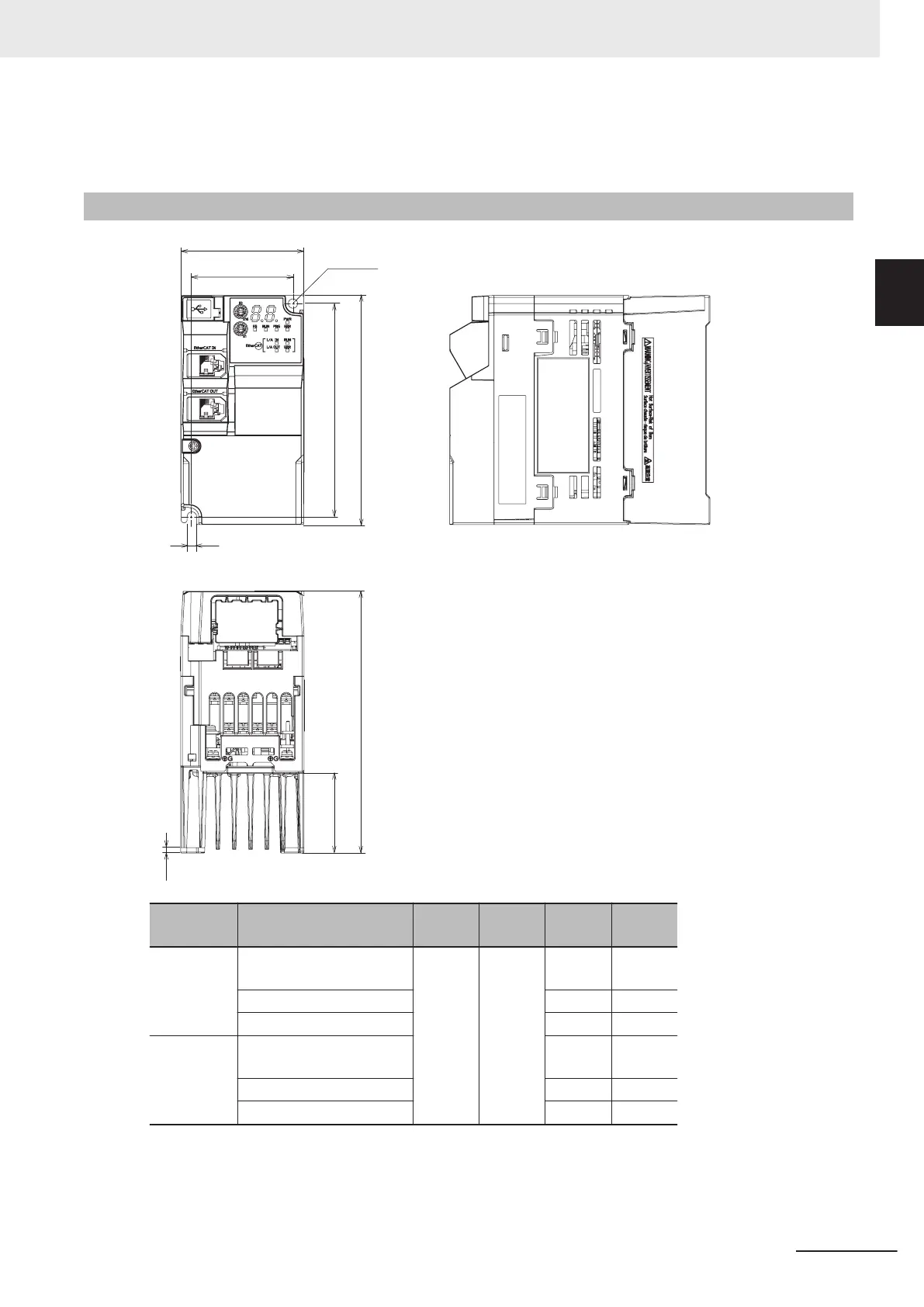

External Dimensions
D
D1
3
68 (W)
56
2xϕ5.2
127 (H)
118
5.2
Power
supply
Model W [mm] H [mm] D [mm]
D1
[mm]
Single-
phase 200
V
3G3M1-AB001-ECT
3G3M1-AB002-ECT
68 127
98 8
3G3M1-AB004-ECT 120 23
3G3M1-AB007-ECT 165 48
Three-
phase 200
V
3G3M1-A2001-ECT
3G3M1-A2002-ECT
98 8
3G3M1-A2004-ECT 113 23
3G3M1-A2007-ECT 145 48
1 Overview
1-17
M1 Series EtherCAT Type User’s Manual (I670)
1-3 Specifications
1
1-3-3 External Dimensions
