Parameter No. Function name Data Default data Unit
3005Hex-26Hex
1st Overload Early Warning
Detection Level
0.00: Disable
0.01 to 176.0
# Setting range from 1%
(HHD) to 200% (ND) of the
rated inverter current.
21.00 A
3005Hex-27Hex
1st Overload Early Warning
Detection T
imer / Low Current
detection level (OL, LOC)
0.01 to 600.00 10.00
s
301FHex-55Hex
Low Current Detection Condi-
tion Selection (LOC)
0: Output during acceleration/
deceleration and constant-
speed operation
1: Output only during con-
stant-speed operation
*1
- -
3005Hex-15Hex/
3005Hex-1CHex
Output Terminal [DO1] Func-
tion Selection/
Output Terminal [ROA, ROB]
Function Selection
41: LOC (Light load detection
signal)
*2
- -
Related function
Output T
erminal [DO1] ON Delay Time (3051Hex-0AHex)
Output T
erminal [DO1] OFF Delay T
ime
(3051Hex-0BHex)
Output Terminal [ROA, ROB] ON Delay Time
(3051Hex-0EHex)
Output Terminal [ROA, ROB] OFF Delay Time
(3051Hex-0FHex)
*1. If analog input (3004Hex-02Hex/3006Hex-1FHex = 1) is selected for 1st Frequency Reference Selection
(3004Hex-02Hex)/2nd Frequency Reference Selection (3006Hex-1FHex), the signal may not be judged as a
constant speed depending on the sampling condition. In this case, set 301FHex-55Hex = 0 (Output during
acceleration/deceleration and constant-speed operation), or increase the value set in the Input Terminal
[AI1] Filter (3006Hex-22Hex).
*2.
The OFF delay becomes the time obtained by adding 0.1 s to Output Terminal [DO1] OFF Delay Time
(3051Hex-0BHex) and Output Terminal [ROA, ROB] OFF Delay Time (3051Hex-0FHex).

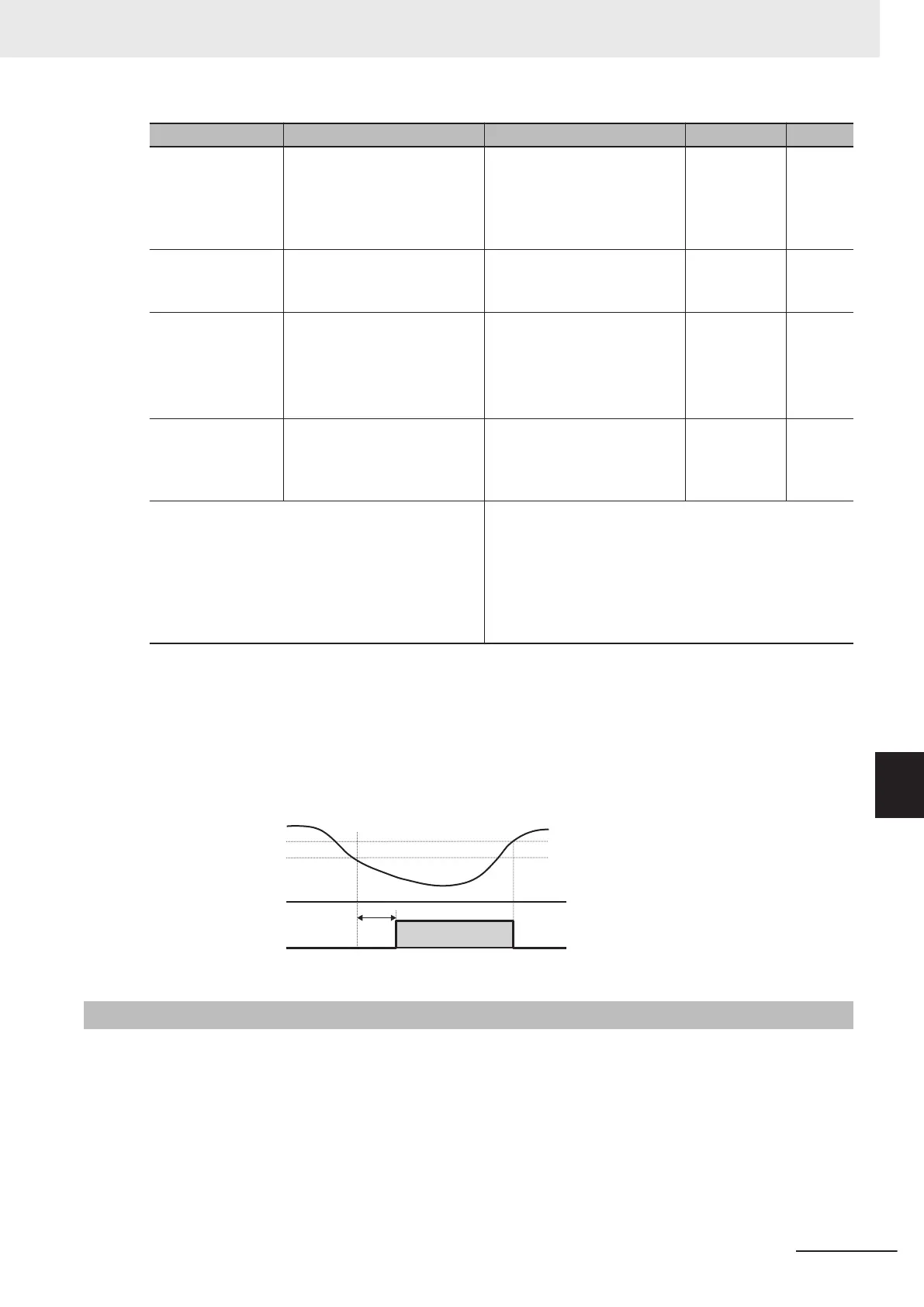

Detection level + Inverter rated current + 5%
D
etection level
Output current
LOC
ON
Timer
8-8-18
Window Comparator/Disconnection Detection (AI1Dc)
The window comparator signal is output when the input value of the analog input terminal [AI1] is be-
tween the upper and lower limit level of the window comparator. It is useful for monitoring the analog
input at a level to detect disconnection or other faults.
Set the detection upper limit level by Analog Input [AI1] Detection Upper Limit Level
(301FHex-3AHex), detection lower limit level by Analog Input [AI1] Detection Lower Limit Level
(301FHex-3BHex) and detection hysteresis width by Analog Input [AI1] Level Detection Hysteresis
Width (301FHex-3CHex).
8 Other Functions
8-91
M1 Series EtherCAT Type User’s Manual (I670)
8-8 Functions Related to Protection, Warning and Various Output Signals
8
8-8-18 Window Comparator/Disconnection Detection (AI1Dc)
