A-4 CP1L Programming Examples
SYSMAC CP1L/CP1E Introduction Manual 141
●PLC Setup
High-speed counter 0 will be enabled.

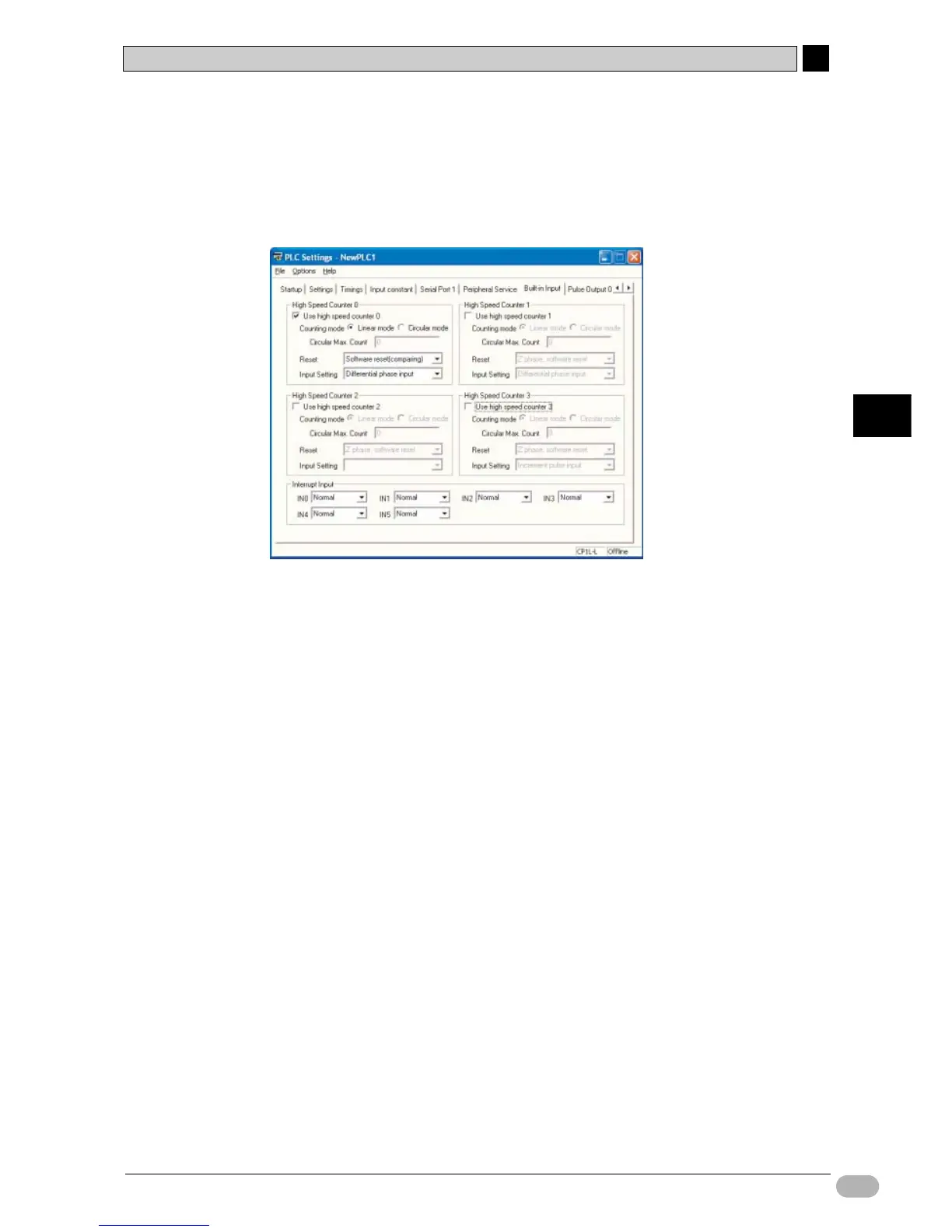

1. Open the PLC Settings dialog box.
2. Click the Built-in Input tab.
3. Check the [Use high speed counter 0] checkbox for High Speed Counter
0.
4. Select [Linear mode] for [Counting mode].
5. Select [Software reset(comparing)] from the Reset drop-down list.
6. Select [Differential phase input] from the Input Setting drop-down list.
7. Close the PLC Settings dialog box.
8. To apply changes made to the PLC settings, turn the PLC power ON.
