A
Appendix

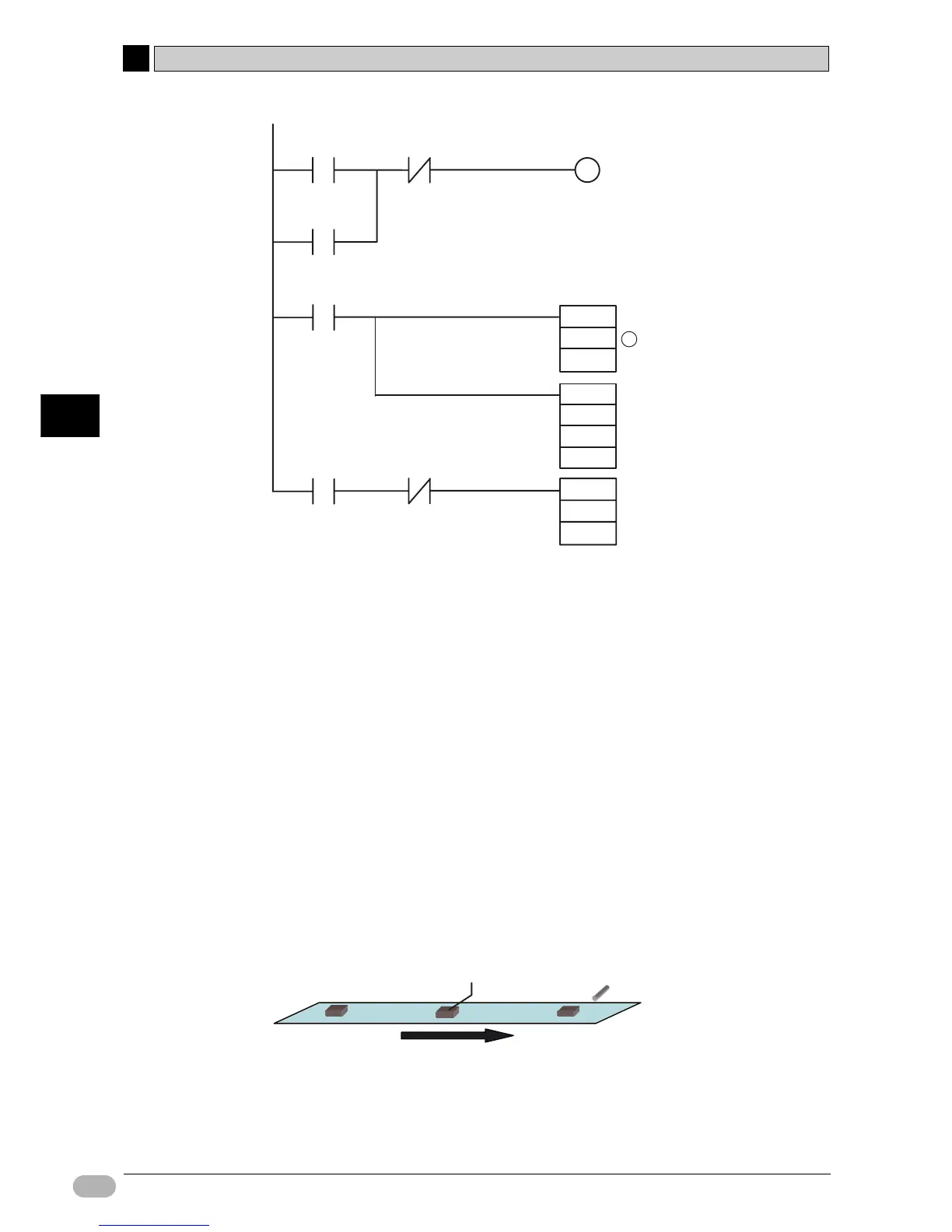

A-4 CP1L Programming Examples
124 SYSMAC CP1L/CP1E Introduction Manual
(A): To use the analog adjuster on CP1L or CP1E for setting the timer in the
example application, change auxiliary area A643 in the ladder program to
A642.
A-4-2 Capturing Short Signals
■Functions Used
●Quick-Response Input
By setting the built-in input to use quick-response inputs, inputs having a signal
width as small as 30
µs (CP1E: 50µs) can be captured, regardless of the cycle
time.
CP1L 10-point I/O units can use up to 2 quick-response inputs. 14-point I/O units
can use up to 4. 20/30/40/60-point I/O units can use up to 6. All types of CP1E
units can use up to 6.
■Operation Overview
Products moving at high speeds are detected by a sensor and counted.
100.00
Gate
T00100.00
Photoelectric
sensor
100.00
Gate
P_On
100.00
Gate
0.00
Photoelectric
sensor
D1
TIM
0010
D1
+B
#20
D0
A
D0
BCD
A642
Sensor (E3X-series used with
E32-series fiber unit.)
Product
