4-5-6 Inputting Auxiliary Areas
Auxiliary area is a relay with a specific purpose.
The first cycle flag will be ON for only 1 cycle after the PLC has been powered ON.
Here, it will be used to reset the counter when CP1L is powered ON.

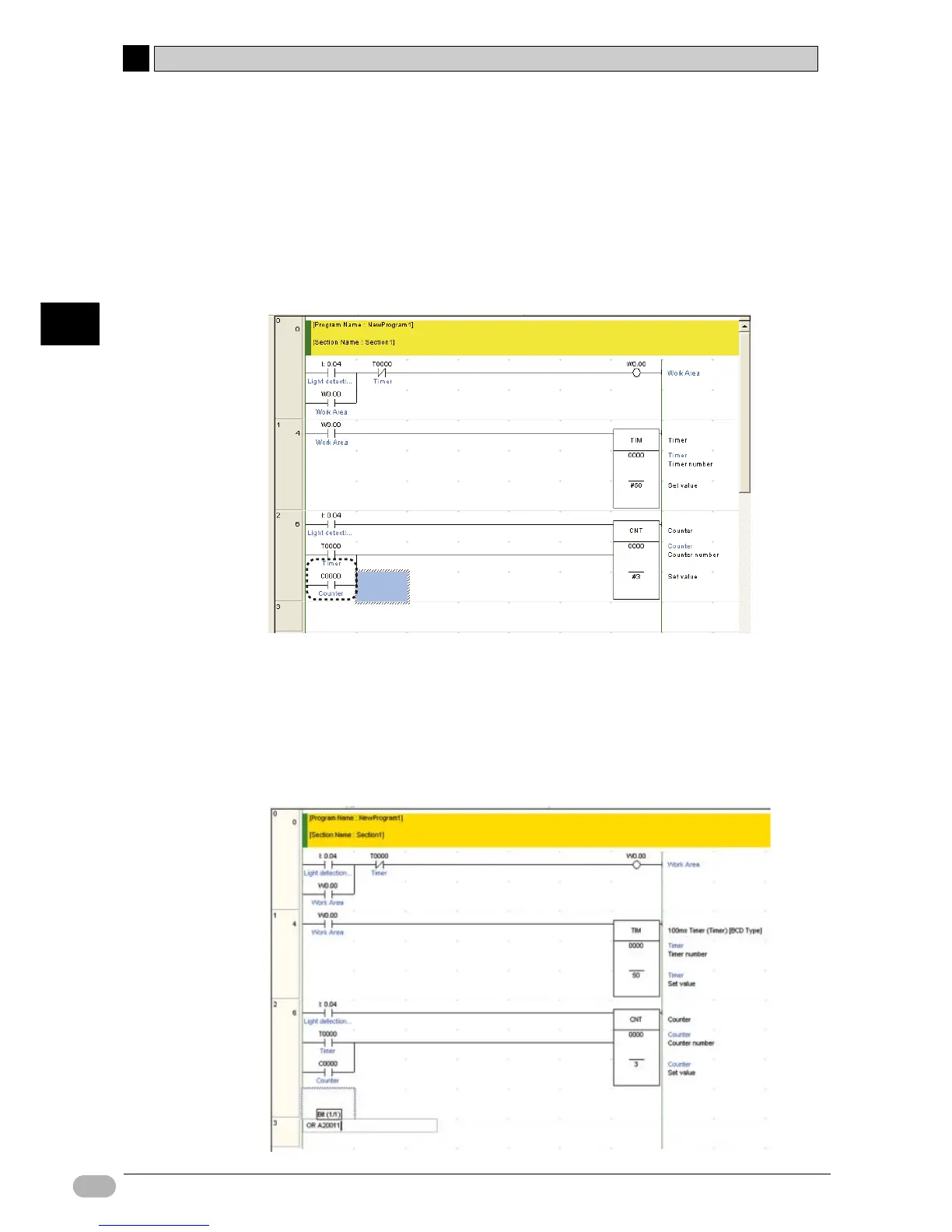

1. Press the [W] key. Input an OR circuit contact "C0000".
A space for inserting an OR circuit will be created.
For details on inputting a contact, refer to 4-5-2 Inputting Contacts.
2. Press the left arrow key.
3. Press the [W] key.
The Operand input box will be displayed.
4. Input address "A20011". Press the [Enter] key.
