2-2 About the Shutter Control System
2
2
SYSMAC CP1L/CP1E Introduction Manual 25
Designing Systems
2-2-2 System Components
This section defines components to be used in the shutter control system. The
following components are to be used.
●PLC
• CP1L (14-point I/O unit with AC power supply)
●Equipment and Software for Programming
• CX-Programmer
• Computer
• USB cable (A-B)
●Inputs
• Shutter OPEN button : PB1 (A16-series, etc)
• Shutter STOP button : PB2
(A16-series, etc)
• Shutter CLOSE button : PB3
(A16-series, etc)
• Car detection sensor : SEN1
(E3G-series, etc)
• Headlight detection sensor : SEN2
• Limit switch, turned ON when shutter is fully open : LS1 (WL-series, etc)
• Limit switch, turned ON when shutter is fully closed : LS2 (WL-series, etc)
●Outputs
• Contact for activating the shutter escalation motor : MO1
• Contact for activating the shutter de-escalation motor : MO2

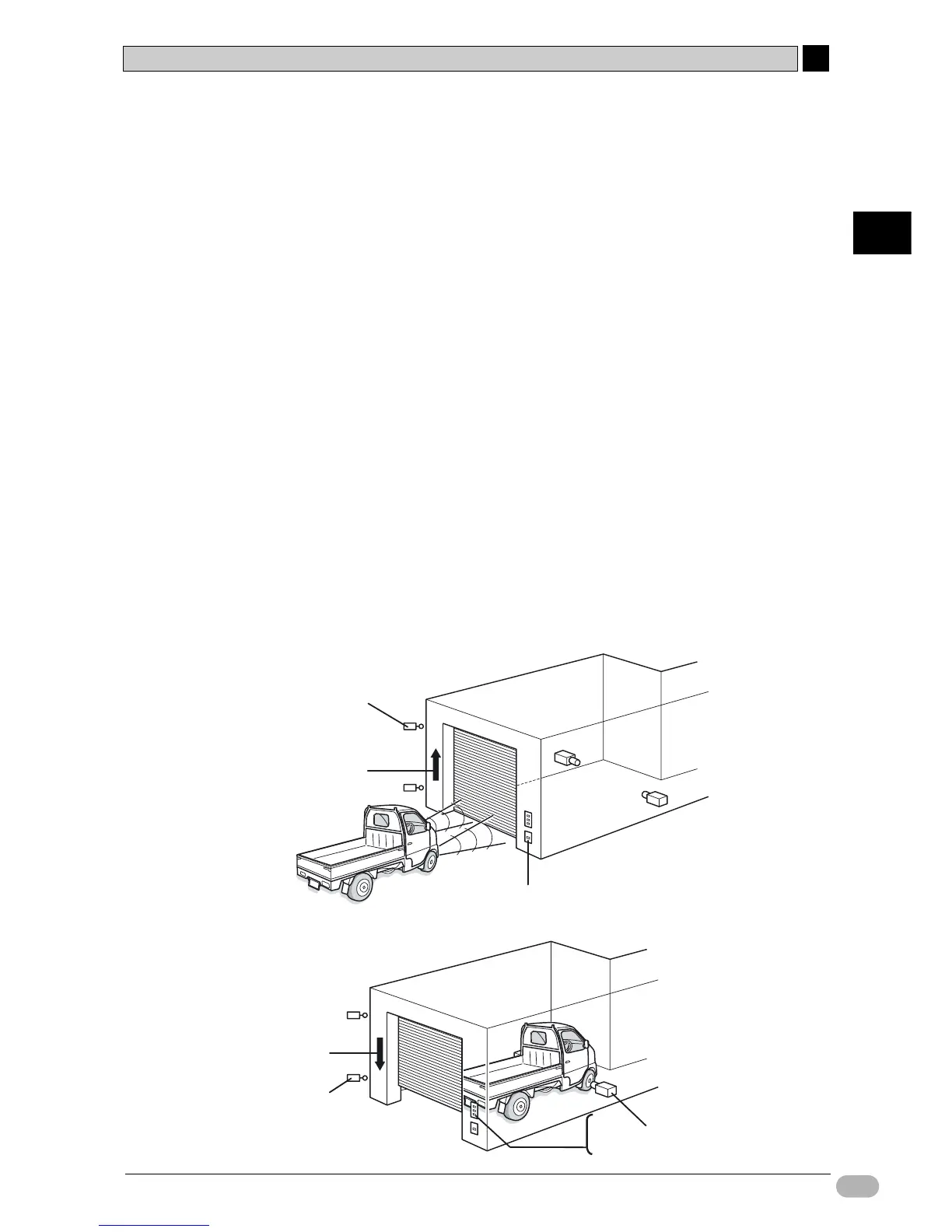

LS1
MO1
SEN2
PB1
PB2
PB3
SEN1
LS2
MO2
