4-2 Creating Ladder Programs
4
4
46 SYSMAC CP1L/CP1E Introduction Manual
Creating Programs
●After Entering the Garage / Exiting the Garage

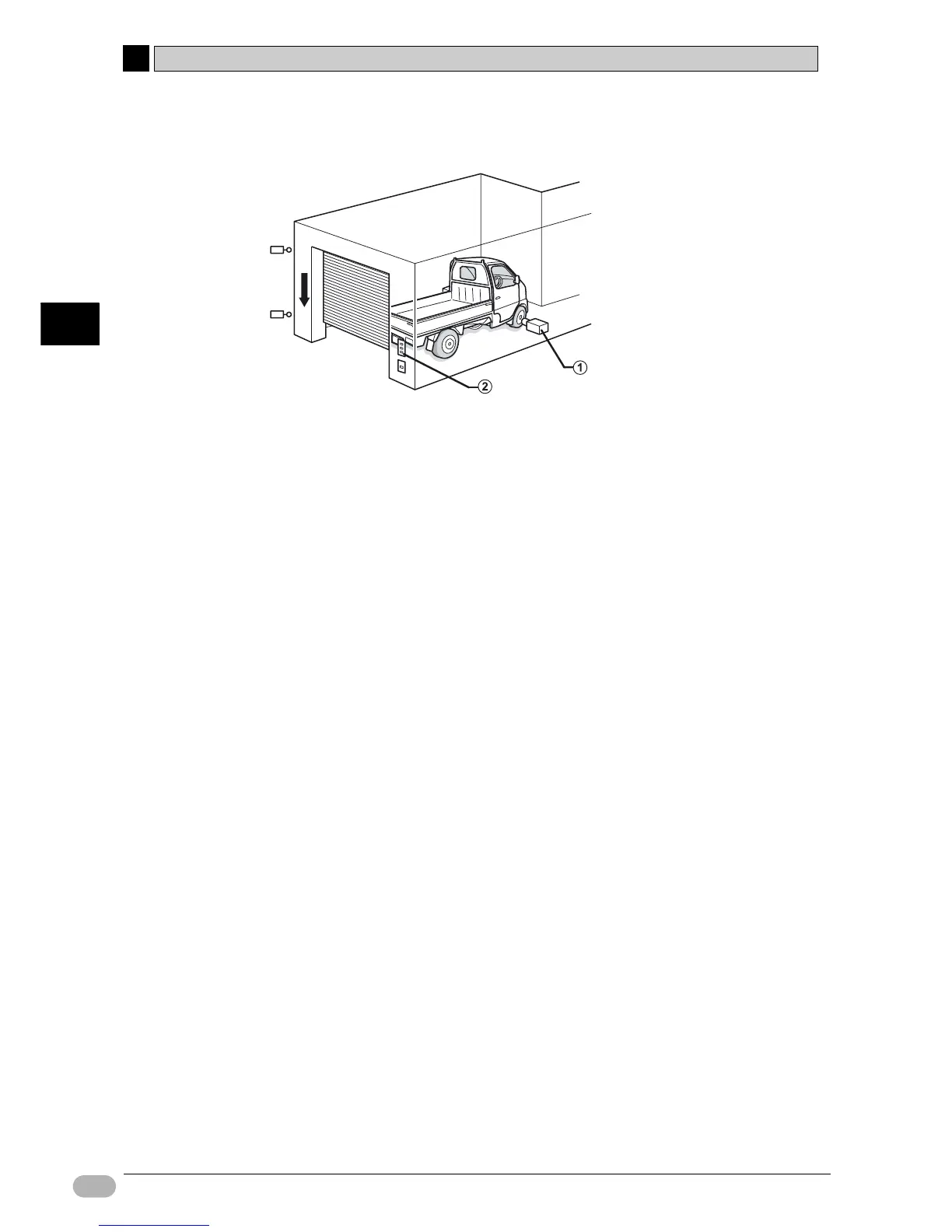

(1) Car detection sensor (E3G-series, etc):
• A car detection sensor will detect full car entrance into the garage, and activate
the shutter de-escalation motor.
(2) Push-buttons (A16-series, etc):
• When pulling the car out of the garage, use the buttons to operate the shutter.
• When pulling the car out of the garage, a differentiated up contact should be
used as the car detection sensor, so that the shutter does not close
immediately upon fully opening.
A ladder program will be set forth hereafter based on the description above.
