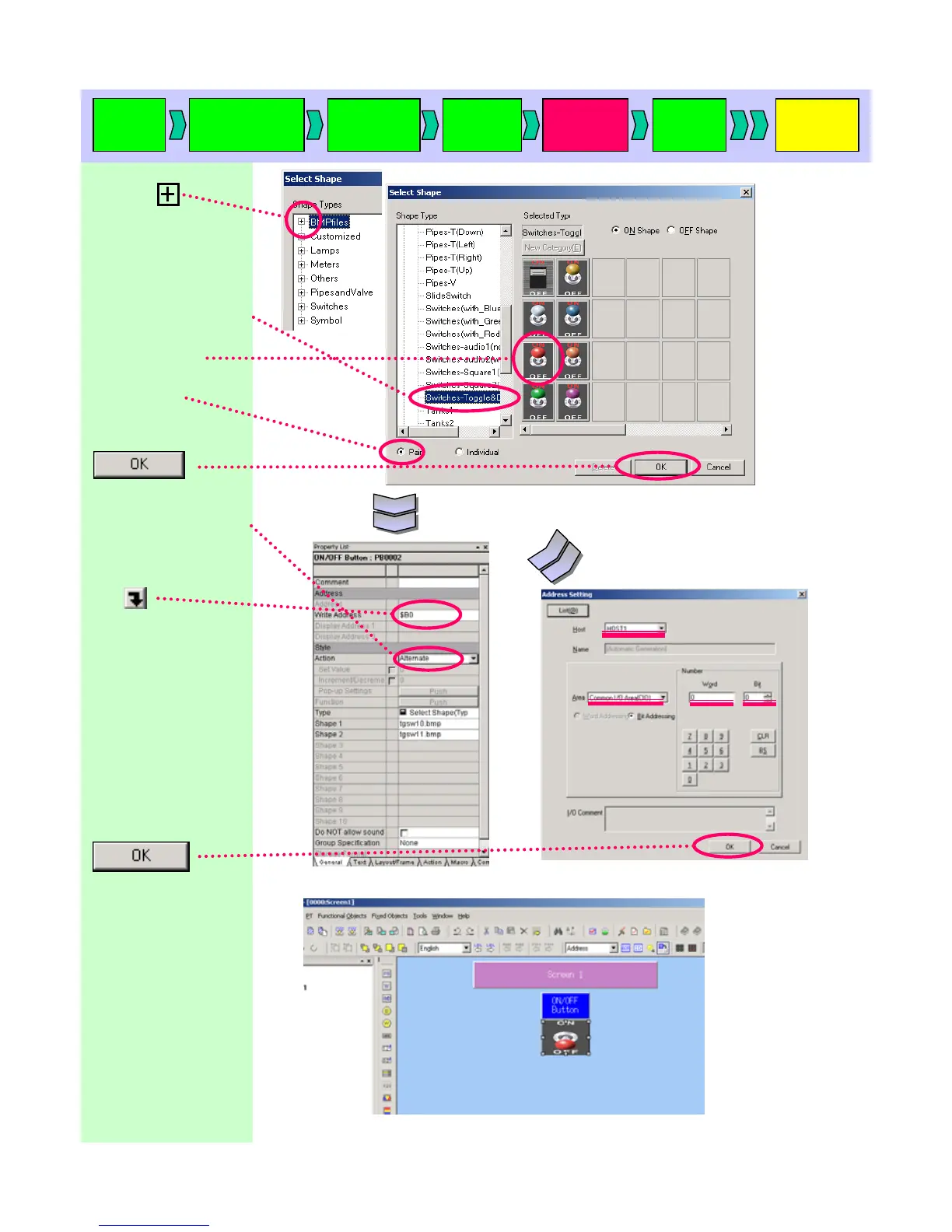

to display the [BMPfiles]
pull-down menu.
Select “Switches-Toggle&Dip”
in the BMPfiles.
Select the shape.
Check [Pair].
Set as follow:
Host
! [HOST1]
Area
! [Common I/O Area
(CIO)]
Word
! [0]
Bit
! [0]
Click
Click
Then,
complete.
Click
Completed image.
Click [Action] in the
ON/OFF button property
list and select [Alternate].
Click [Write Address]
and
Start up
CX-D
Creating a
new project
Project
property
System
setting
Creating
a screen
Validation
Transferring
a project
