Omron CX-DESIGNER - INTRODUCTION GUIDE User Manual

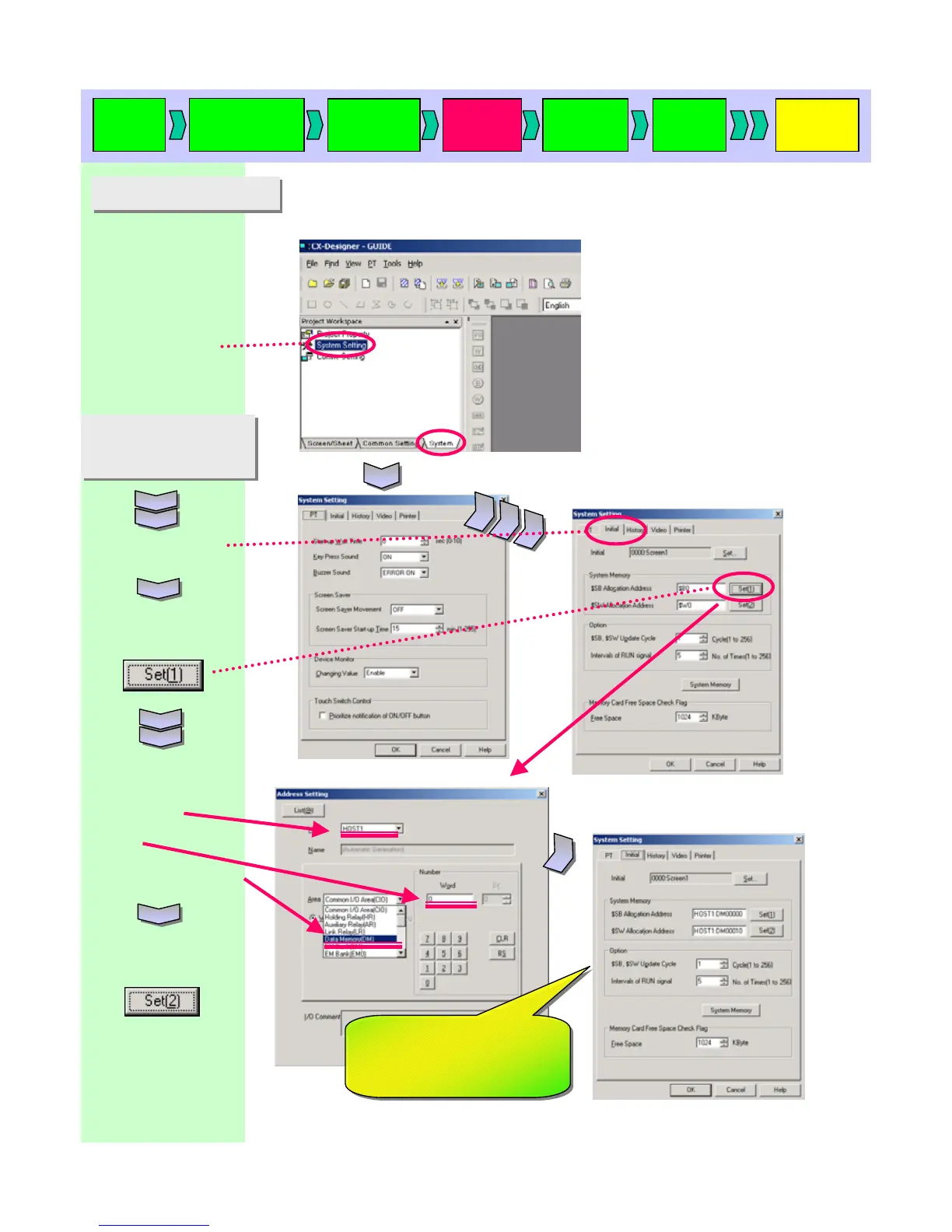

6. System settings
6. System settings
Double-click
[System Setting].
Allocating NS system memory areas to the PLC.
System memory area is memory area that is used to control the NS from the
host (PLC) or to notify operation status from the NS to the host.
In this manual, you will allocate system memory areas to the PLC.
Click the [Initial] tab
Complete
Set as follow:
Host name
! [HOST 1]
Word
! “0”
Area Type
! [Data Memory (DM)]
Set address in the same
way as [Set(1)]
With this setting, a present
value of DM0010CH is shown
on the PT.
With this setting, a present
value of DM0010CH is shown
on the PT.
Allocate a word to
the PLC for controlling
screen No.
Allocate a word to
the PLC for controlling
screen No.
Click
Click
[System]
In the “Project
Workspace”.
Host name
! [HOST 1]
Word
! “10”
Area Type
! [Data Memory (DM)]
Start up
CX-D
Creating a
new project
Project
property
System
setting
Creating
a screen
Validation
Transferring
a project
