Omron CX-DESIGNER - INTRODUCTION GUIDE - Switch Label Button

21. Word Button/Command Button
21. Word Button/Command Button
Word button is an object that writes constants to a specified address when it is
pressed,
or increases/decreases a value of the specified address. It is possible to
write a specified value to the item selected from a pop-up menu.
In this manual, you will make a button to switch labels (switching English and
Dutch here) using a pop-up menu.

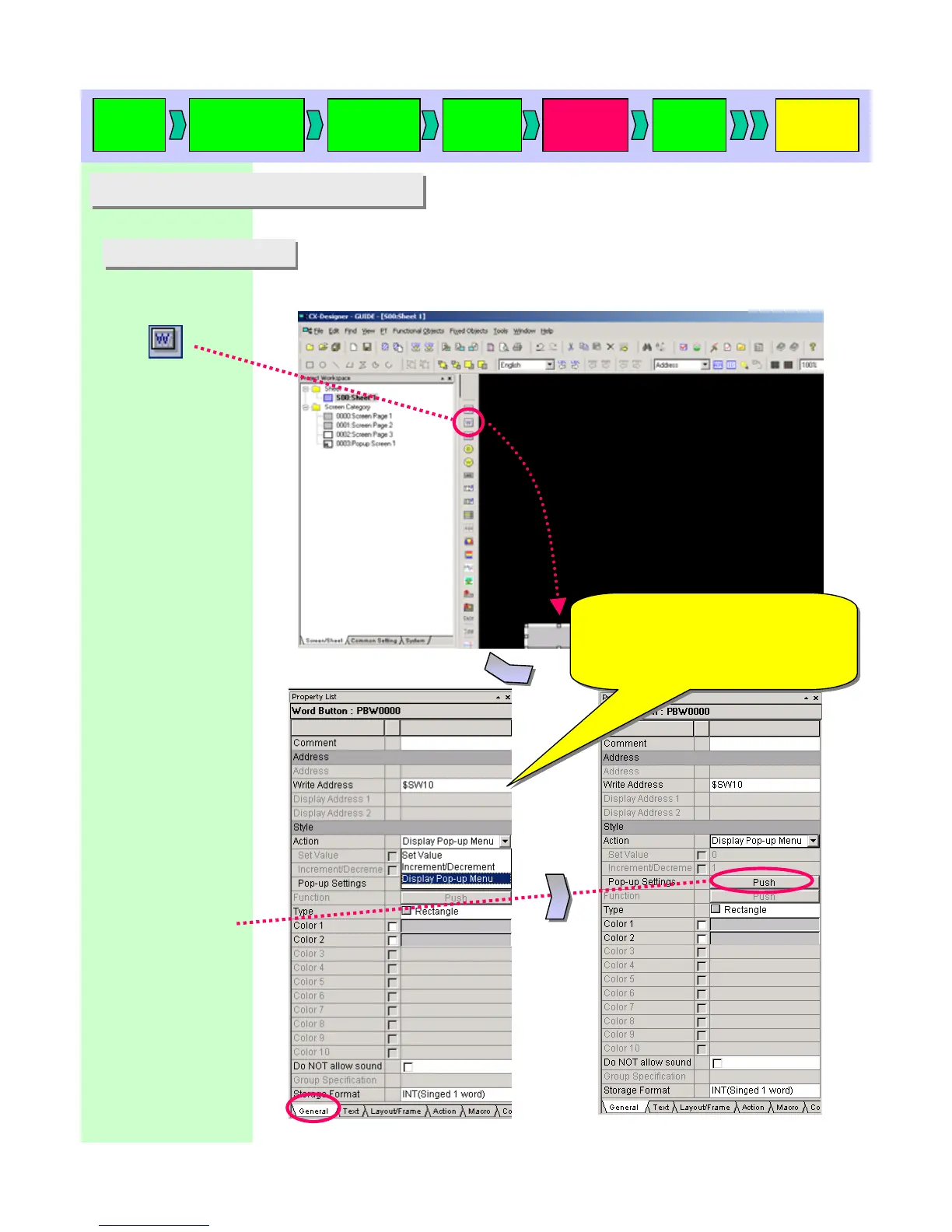

Click the Word button
on the list
Set as follow in the object
property list:
General tab
[Write Address]
! “$W10”
[Action]
! “Display Pop-up Menu”
Click the Push button
of the Pop-up Settings
on the General tab.
21-1 Switch label button
21-1 Switch label button
The value of $SW10 (NS system memory) is
set to display a specified label No.
(The settings of label No. 0 (English) and
No. 1 (Dutch) made to the initial project
property are applied.
The value of $SW10 (NS system memory) is
set to display a specified label No.
(The settings of label No. 0 (English) and
No. 1 (Dutch) made to the initial project
property are applied.
