Sample Screen
Sample Screen
Screen 1
Screen 1
Create 5 screens using the CX-Designer.
All screens are designed to display labels in two languages (English/Dutch) with
“Switch Label” function.
Here, you will create a screen that turns ON/OFF specified addresses of the PLC.
On the screen 1, lamps (bit lamp) are lit/out according to the status of bits
allocated to the PLC.

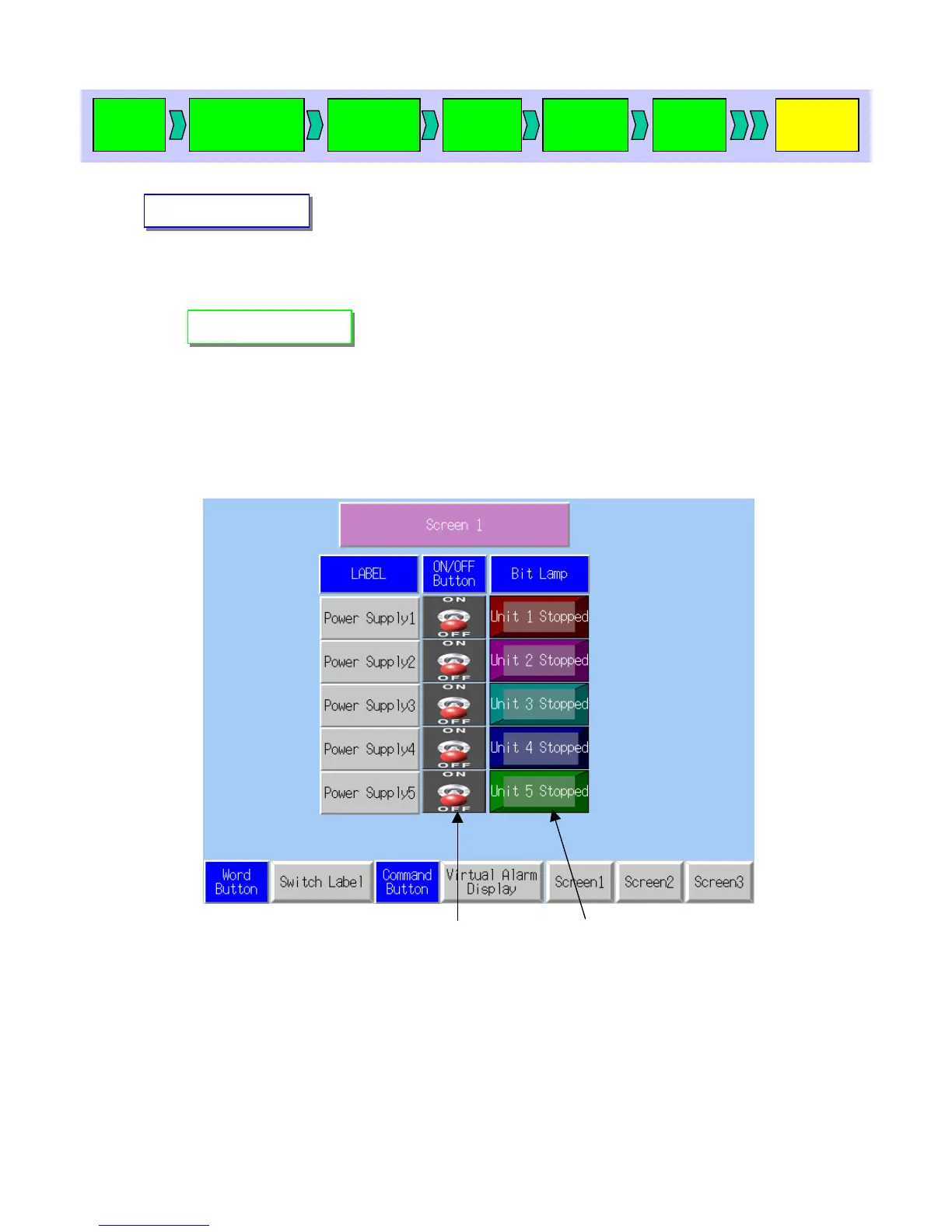

The screen below illustrates an example of a touch panel screen used to operate a
machinery.
ON/OFF Button
Operational Status Display
1. ON/OFF Button
Press the button to switch ON/OFF status.
2. Operational Status Display
“RUN/STOP” lamp is lit/out in linked with the status of an ON/OFF button.
Start up
CX-D
Creating a
new project
Project
property
System
setting
Creating
a screen
Validation
Transferring
a project
To Next Page
