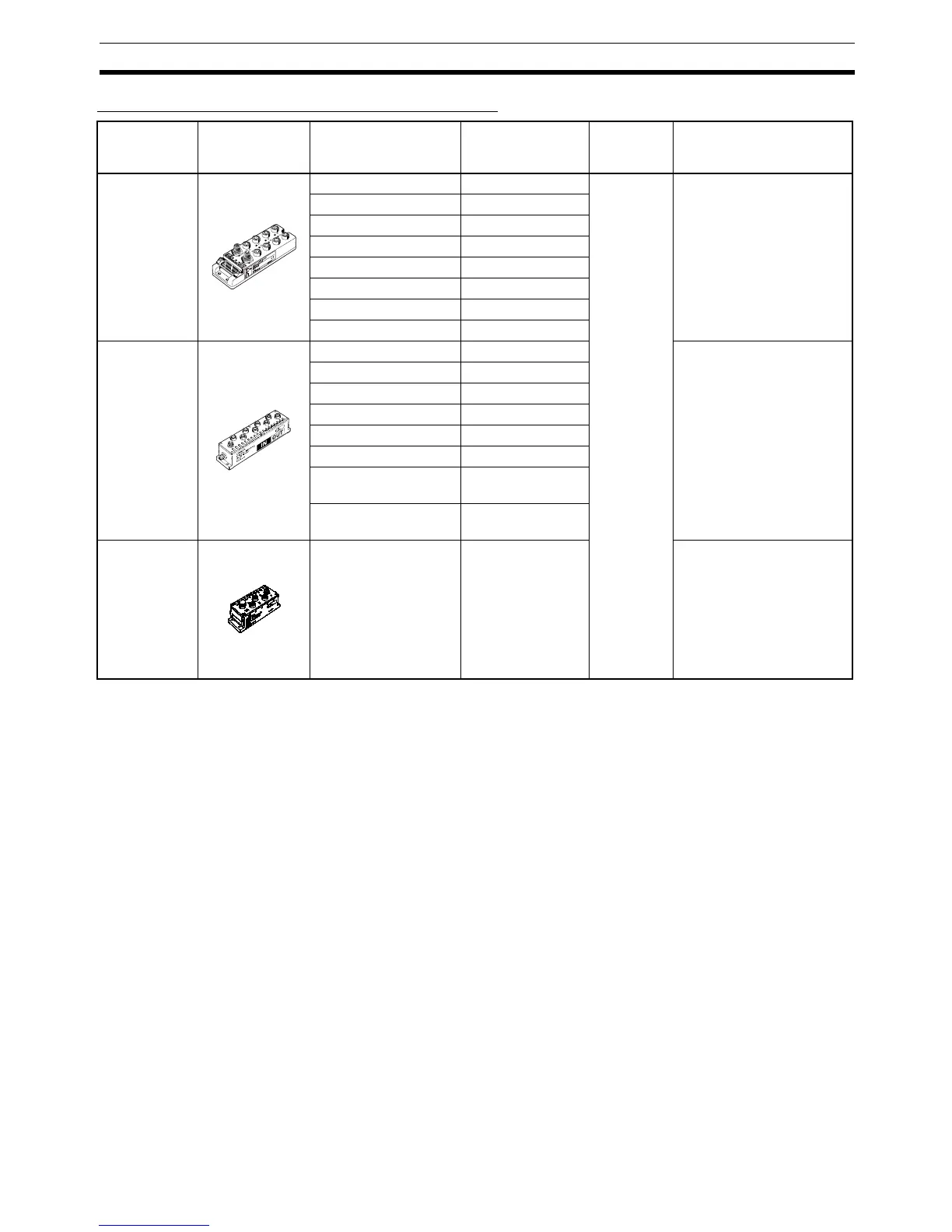

DeviceNet-compatible Devices Section 1-2
Waterproof and Environment-resistive Slaves
Name Appearance I/O points Model number Communi-
cations
cable
Remarks
Waterproof
Ter minals
4 input points (NPN) DRT1-ID04CL Round con-
nectors
Dust and drip-proof struc-
ture for environmental
resistance (IP 67)
XS2 Series connector sys-
tem eliminates the need for
tools for sensor, valve or
other connections.
4 input points (PNP) DRT1-ID04CL-1
8 input points (NPN) DRT1-ID08CL
8 input points (PNP) DRT1-ID08CL-1
4 output points (NPN) DRT1-OD04CL
4 output points (PNP) DRT1-OD04CL-1
8 output points (NPN) DRT1-OD08CL
8 output points (PNP) DRT1-OD08CL-1
Environment-
resistive Ter-
minals
8 input points (NPN) DRT1-ID08C Spatter, dust and drip-proof
structure for environmental
resistance (IP 66)
XS2 Series connector sys-
tem eliminates the need for
tools for sensor, valve or
other connections.
8 output points (NPN) DRT1-OD08C
16 input points (NPN) DRT1-HD16C
16 input points (PNP) DRT1-HD16C-1
16 output points (NPN) DRt1-WD16C
16 output points (PNP) DRT1-WD16C-1
8 input points+8 output
points (NPN)
DRT1-MD16C
8 input points+8 output
points (PNP)
DRT1-MD16C-1
B7AC Inter-
face Terminal
10 input points x 3 DRT1-B7AC Splits 1 B7AC Unit into 3
branches.
XS2 Series connector sys-
tem eliminates the need for
tools.
Spatter, dust and drip-proof
structure for environmental
resistance (IP 66)
