Omron DEVICENET - Page 71

50

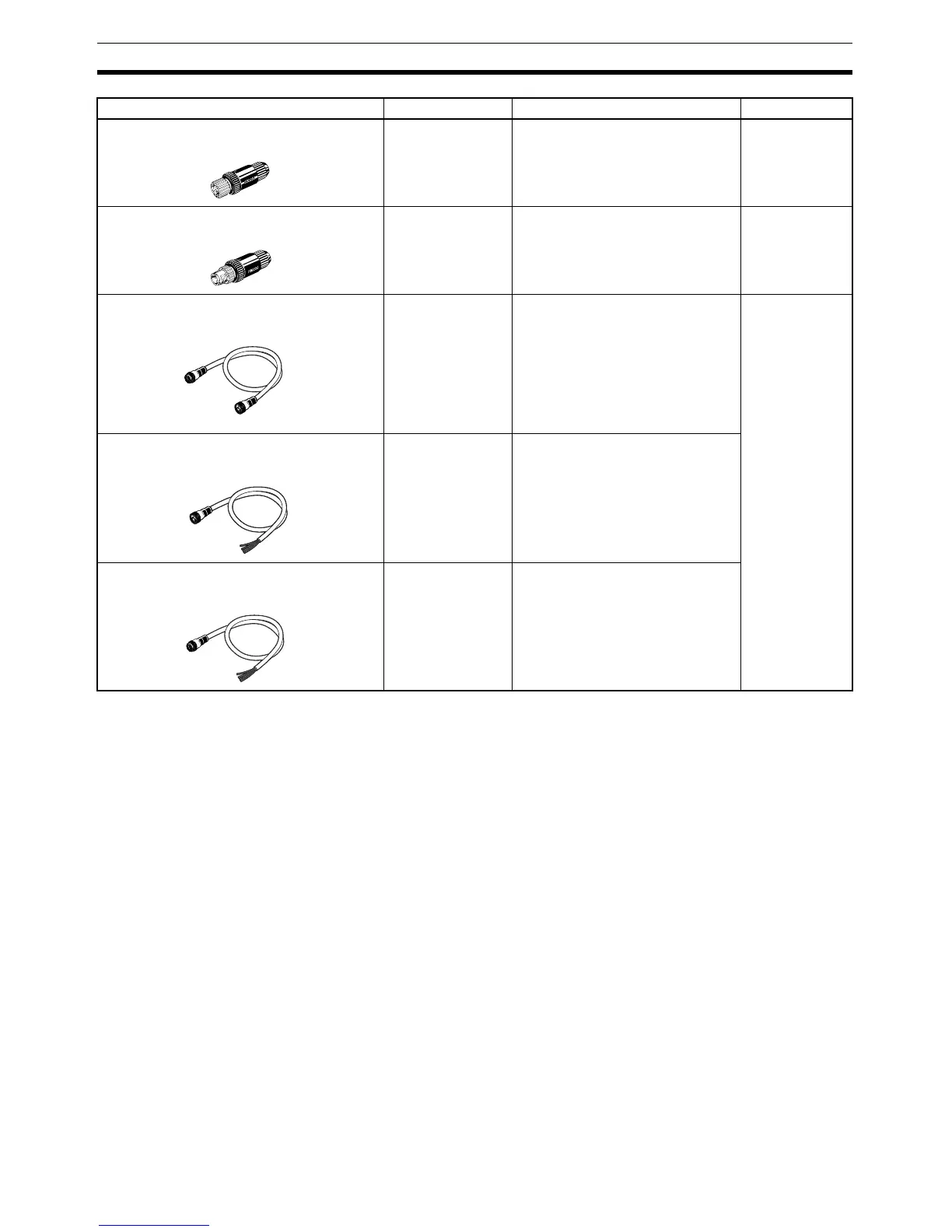

Cables, Connectors, and Related Devices Section 2-3
Shielded, micro-size (M12) female connector
(socket) for custom cable assembly
XS2C-D5S7 Connects to a micro-size (M12)
connector of a shielded T-branch
Connector or Environment-resistive
Slave.
Compatible with thin cable only.
---
Shielded, micro-size (M12) male connector
(plug) for custom cable assembly
XS2G-D5S7 Connects to a micro-size (M12)
connector of a shielded T-branch
Connector.
Compatible with thin cable only.
---
Thick cable with shielded, mini-size connec-
tors on both ends
DCA2-5CN@@W1 Used to connect a mini-size con-
nector of a shielded T-branch Con-
nector to a mini-size connector of
another shielded T-branch Connec-
tor or an Environment-resistive
Slave.
(Primarily used in the trunk line.)
Cable lengths:
1 m
2 m
5 m
10 m
Thick cable with a shielded, mini-size female
connector (socket) on one end
DCA2-5CN@@F1 Used to connect to a T-branch Con-
nector or Environment-resistive
Slave.
(Primarily used in the trunk line.)
Thick cable with a shielded, mini-size male
connector (plug) on one end
DCA2-5CN@@H1 Used to connect a mini-size con-
nector of a shielded T-branch Con-
nector to a device other than an
Environment-resistive Slave, such
as a Master, Slave, or T-branch
Tap.
(Primarily used in the trunk line.)
Name Model Specifications Remarks
Thick cable
Mini-size
Mini-size
Thick cable
Mini-size
Thick cable
Mini-size
