51
Cables, Connectors, and Related Devices Section 2-3
Multi-drop
Connectors

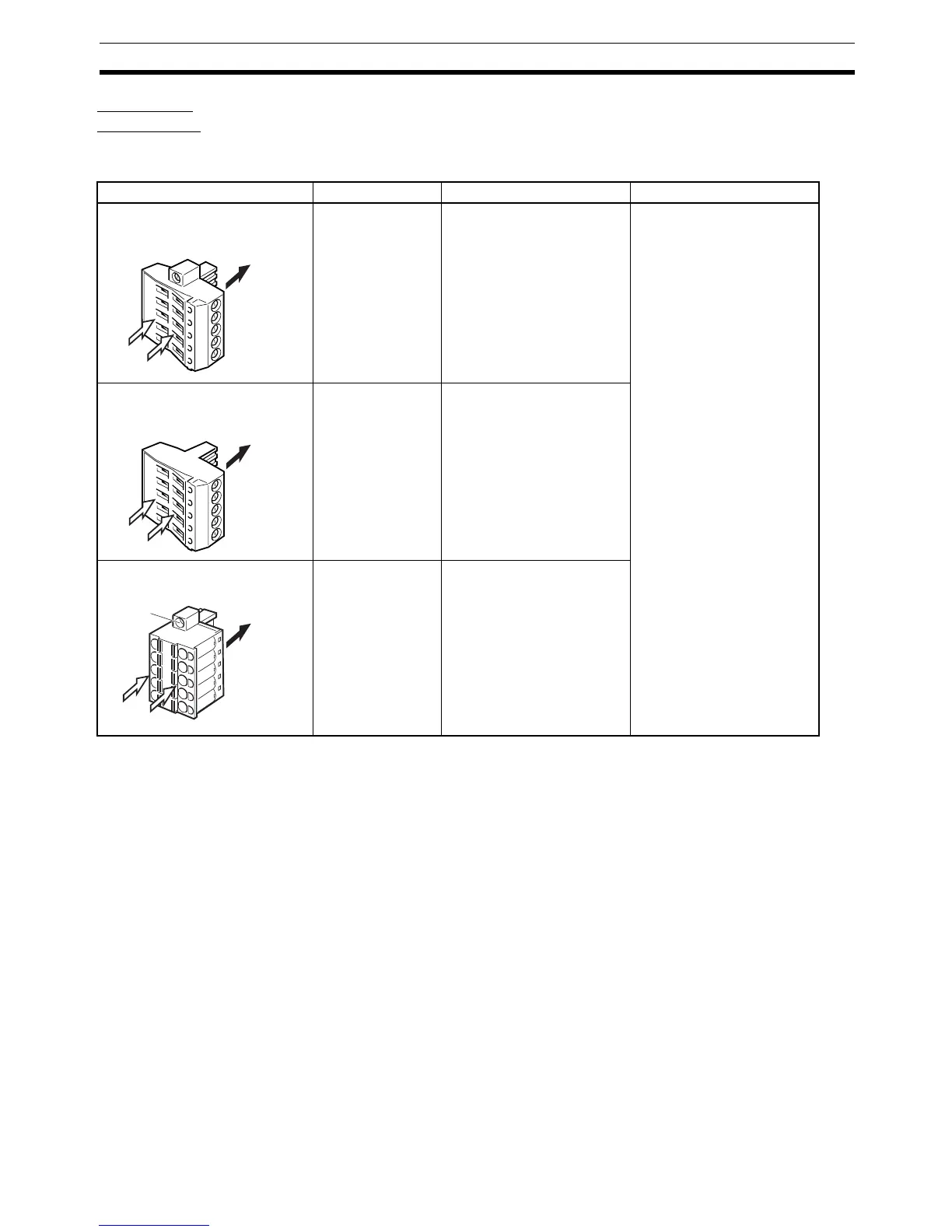

The following table shows connectors that can be used for multi-drop connec-
tions. These connectors are not supplied with OMRON products, but must be
ordered separately. Since these connectors cannot be used with all DeviceNet
devices, check that the connector is compatible before ordering.
Note The multi-drop connectors can be used with the following Units
Name Model Specifications Remarks
Straight multi-drop connector
with attachment screws
XW4B-05C4-TF-D Straight multi-drop connector
with attachment screws
The insertion and wiring
directions are the same.
These multi-drop connec-
tors cannot be used with all
Masters and Slaves. See the
note following this table for a
list of the compatible Units.
Straight multi-drop connector
without attachment screws
XW4B-05C4-T-D Straight multi-drop connector
without attachment screws
The insertion and wiring
directions are the same.
Straight multi-drop clamp con-
nector with attachment screws
XW4G-05C4-TF-D Straight multi-drop connector
with attachment screws
The insertion and wiring
directions are the same.
CS1W-DRM21 DRT1-ID16T(-1) DRT2-ID08(-1) DRT2-ID16SL(-1)
CJ1W-DRM21 DRT1-MD16T(-1) DRT2-OD08(-1) DRT2-OD16SL(-1)
CPM2C-S100C-DRT DRT1-OD16T(-1) DRT2-ID16(-1) DRT2-ID16SLH(-1)
CPM2C-S110C-DRT DRT1-ID16TA(-1) DRT2-OD16(-1) DRT2-OD16SLH(-1)
CPM1A-DRT21 DRT1-MD16TA(-1) DRT2-MD16(-1) DRT2-ID32SL(-1)
DRT1-OD16TA(-1) DRT2-AD04 DRT2-OD32SL(-1)
DRT1-ID32ML(-1) DRT2-DA02 DRT2-MD32SL(-1)
DRT1-MD32ML(-1) DRT2-ROS16 DRT2-ID32SLH(-1)
DRT1-OD32ML(-1) DRT2-ID16TA(-1) DRT2-OD32SLH(-1)
DRT1-232C2 DRT2-OD16TA(-1) DRT2-MD32SLH(-1)
DRT1-COM DRT2-MD16TA(-1)
DRT2-ID16S(-1)
DRT2-ID16ML(-1)
DRT2-OD16ML(-1)
DRT2-ID16MLX(-1)
DRT2-OD16MLX(-1)
DRT2-ID32ML(-1)
DRT2-OD32ML(-1)
DRT2-MD32ML(-1)
Insertion
direction
Wiring
direction
Insertion
direction
Wiring
direction
Insertion
direction
Wiring
direction
Attachment
screw
