53
Cables, Connectors, and Related Devices Section 2-3

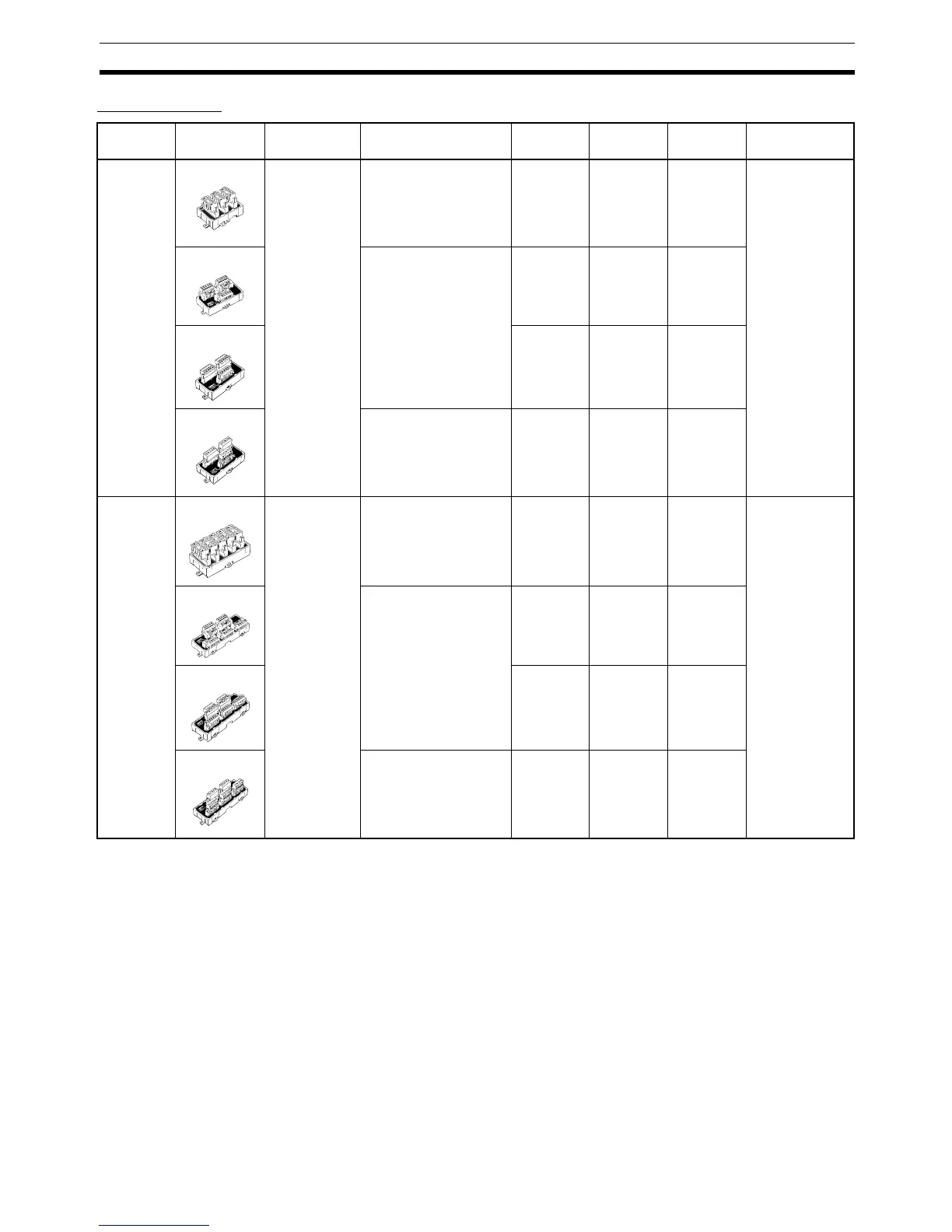

T-branch Taps
Branches Model Number of
connectors
Connectors provided Wiring
direction
Insertion
direction
Set screw
access
Terminating
Resistance
Single-
branch
DCN1-1NC 3 connectors
(for 1 branch)
XW4G-05C1-H1-D
Straight clamp con-
nector with attach-
ment screws
(3 attached)
From top From top From top Can be
installed (pro-
vided with Unit)
DCN1-1C XW4B-05C1-H1-D
Straight connector with
attachment screws
(3 attached)
From side From side From top
DCN1-2C From top From top From side
DCN1-2R XW4B-05C1-VIR-D
Right-angle connector
with attachment
screws
(3 attached)
From side From top From top
Three-
branch
DCN1-3NC 5 connectors
(up to 3
branches)
XW4G-05C1-H1-D
Straight clamp con-
nector with attach-
ment screws
(5 attached)
From top From top From top Can be
installed (pro-
vided with Unit)
DCN1-3C XW4B-05C1-H1-D
Straight connector with
attachment screws
(5 attached)
From side From side From top
DCN1-4C From top From top From side
DCN1-4R XW4B-05C1-VIR-D
Right-angle connector
with attachment
screws
(5 attached)
From side From top From top
